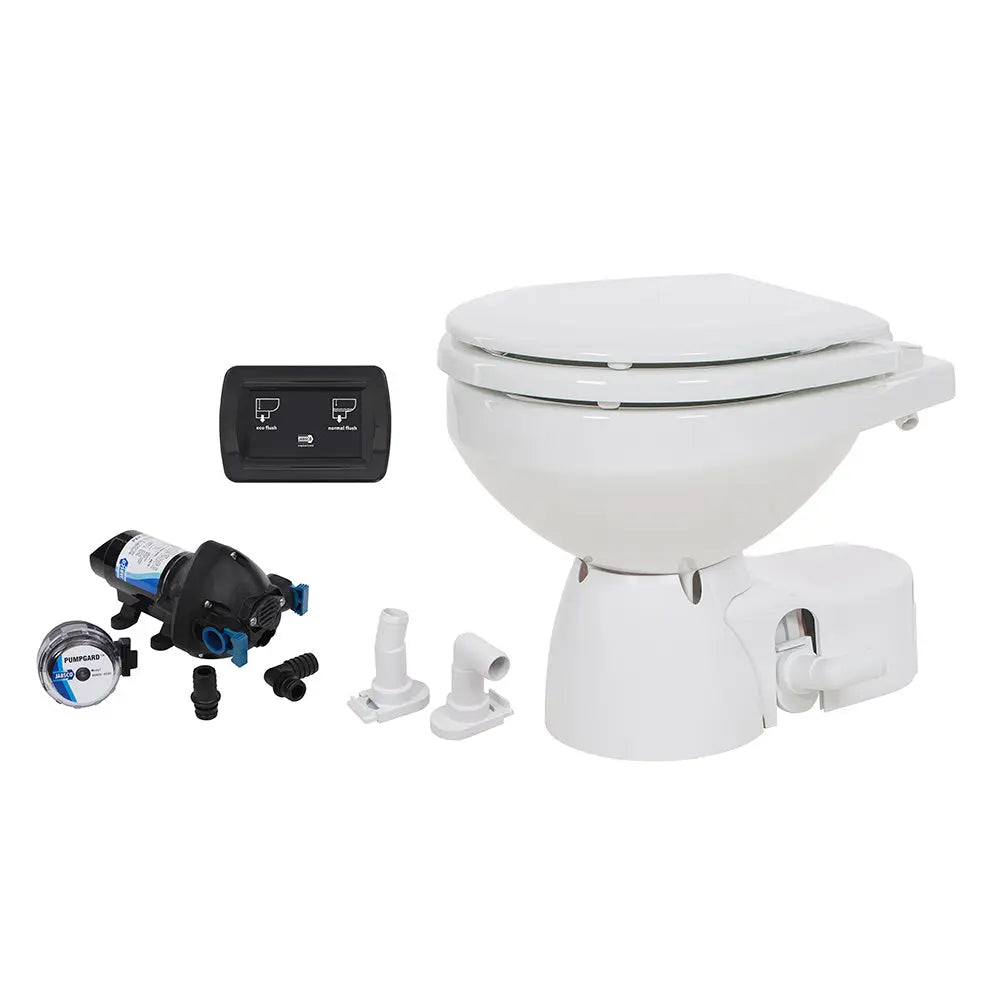

Jabsco Quiet Flush E2 Raw Water Marine Toilet with Soft Close Lid and Touch Sensor Control

Quiet Flush E2 Raw Water Toilet Compact Bowl - 24V - Soft Close Lid

From crowded charter boats to racing yachts and everything in between, the award-winning Jabsco Quiet Flush E2 marine toilet has been designed to solve some of the biggest marine waste challenges facing boat owners and manufacturers. With its simplified installation, ease of serviceability, and sleek touch sensor control, the Quiet Flush E2 brings a whole new level of convenience and comfort to the water.

Easy to Install

The Quiet Flush E2 gives even the occasional boater the confidence to install this toilet. For maximum flexibility in tight spaces, the base can be rotated, allowing you to install the pump with the discharge to the left, right, or rear.

Easy to Service

Designed for recreational craft but built to withstand the abuse of commercial use, the quick-release system provides easy access to the macerator pump and discharge hose with no tools needed.

Easy to Operate

Marine toilets bring the comfort of home with you, but there are additional considerations on a boat, which is why the Quiet Flush E2 puts you in complete control. With its sleek touch sensor panel, users can choose three settings, including a water-saving, eco-friendly cycle.

Installation:

• The base can be rotated to the left, right, or rear of the bowl to suit multiple installation options
• The discharge pump can be rotated 180 degrees to suit the base orientation and ensure pipework is routed to the rear of the toilet
• Straight or 90-degree discharge port for easy install

Quick Release for Easy Servicing:

• Quick release system allows for fast and easy removal of discharge pumps and hoses when servicing is necessary
• C-Clip design releases pump assembly from the toilet base without the need for tools, resulting in fast service time

Multi-Function Touch Panel:

• Stylish, low-profile design
• Touch-sensitive operation
• Eco flush, full flush, or empty functions
• Only 1-liter (1-quart) per flush using eco mode
• Designed for wet room installations
• No spill empty feature to leave bowl dry when the boat is in motion

Specifications:

• Bowl Size: Compact
• Seat Lid: Wood
• Slow Close Lid: No
• Water: Sea, river, and lake water
• Device: Rinse pump
• Flush Control Switch: Touch panel
• Voltage DC: 24
• Recommended Fuse Size (AMP): 25
• Size (H x W x D): 14 x 13.9 x 16.3 inches (355 x 352 x 415 mm)
• Weight: 34.2 lbs. (15.5 kg)

The Jabsco Quiet Flush E2 marine toilet is engineered to meet the demanding needs of boat owners across various vessel types, from small charter boats to racing yachts. This compact bowl design offers a sleek, modern look with user-friendly features that enhance onboard comfort and convenience. Its innovative touch sensor control panel provides easy operation with multiple flush options, including an eco-friendly cycle that uses only 1 quart of water per flush, helping conserve water while maintaining hygiene standards. The quiet, efficient flushing system ensures minimal noise disruption, making it ideal for the intimate environments of marine vessels.
Installation flexibility is a key feature of the Quiet Flush E2. The base can be rotated to accommodate tight spaces, with the discharge pump also adjustable 180 degrees to match your boat's layout. This allows for straightforward installation in various configurations, whether you need the discharge to be on the left, right, or rear of the bowl. The system includes a straight or 90-degree discharge port for added versatility. Designed with quick-release components, servicing the macerator pump and discharge hoses is simple and tool-free, reducing maintenance time and effort. The C-clip design allows for fast removal of the pump assembly, making routine servicing more accessible.
The stylish, low-profile touch panel features intuitive operation with options for eco flush, full flush, or empty functions. The bowl is constructed with a durable, compact design, complemented by a wood seat lid for added comfort. Built to withstand marine conditions, the Quiet Flush E2 is suitable for wet room installations and features a no-spill empty function to keep the bowl dry during transit. Overall, this toilet combines modern convenience, ease of service, and installation flexibility, making it an excellent choice for both recreational and commercial marine applications.

Features:

• Rotatable base for flexible installation in tight spaces

• Adjustable discharge pump with 180-degree rotation for versatile pipe routing

• Quick-release system for easy access to macerator pump and discharge hoses

• Stylish touch sensor control panel with multiple flush modes

• Eco flush option utilizing only 1 quart of water per cycle

• Designed for wet room installation with no spill empty feature

• Compact bowl size with durable construction suitable for marine environments

• Includes wood seat lid with soft-close feature
