Jabsco Single Stack Water System - 4.8 GPM, 40 PSI, 12V Marine Water Pressure System

Single Stack Water System - 4.8 GPM - 40PSI - 12V

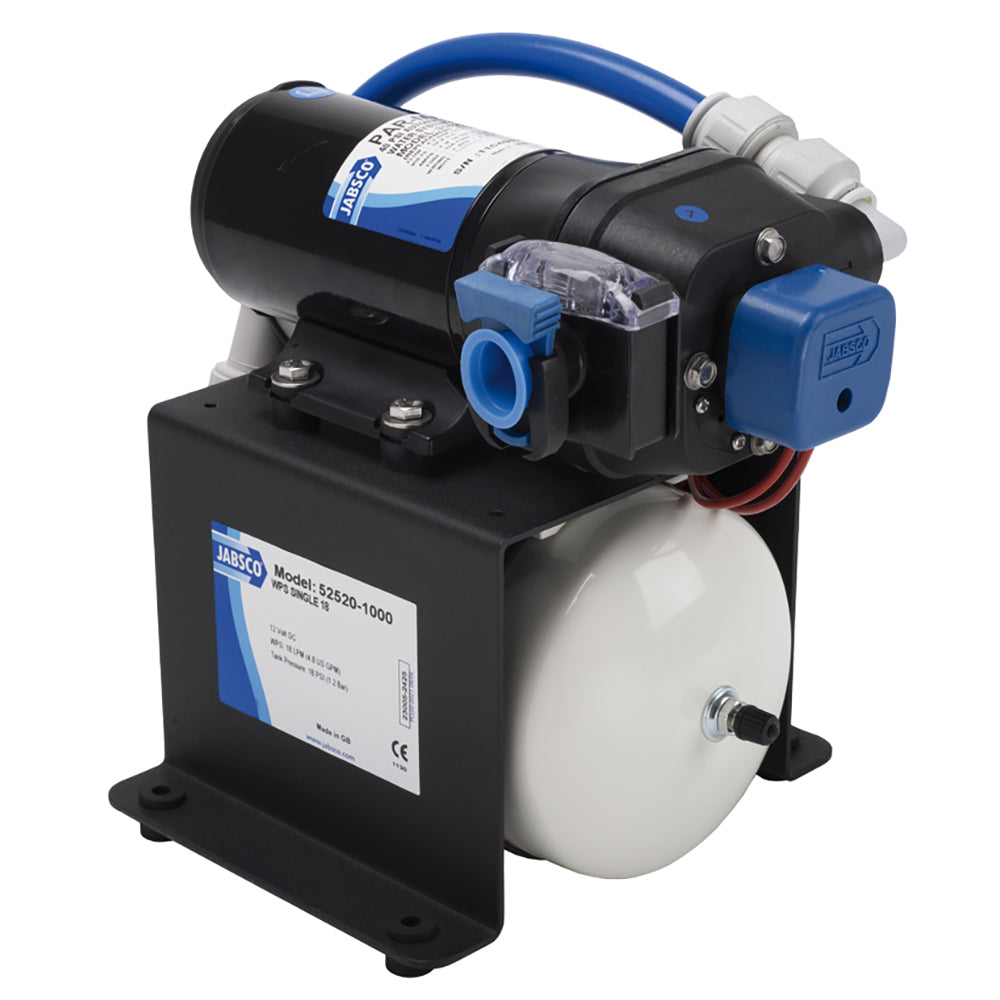

The Single Stack Water System is a fully assembled water pressure set which makes installation of water pressure systems simple. The system consists of a PAR-Max 4.0 Pump, strainer and pre-pressurized accumulator tank.

Serves four or more outlets.

Features:

• Self-priming up to 10' (3M)
• Run-dry ability
• Smooth, even flow
• Thermal overload protection
• Complies with ISO 8846 MARINE (Ignition Protection)
• Three-year warranty

Specifications:

• Flow: 4.8 GPM (18LPM)
• Shut-Off Pressure: 40PSI (2.8bar)
• Fitting: Connections for 3/4" (19mm) hose tail
• Size: 12.2" Long x 9.4" Wide x 9.8" High
• Weight: 12lbs (5.4kg)

The Jabsco Single Stack Water System offers a reliable solution for providing pressurized water in marine applications. Designed for easy installation, this fully assembled system includes a PAR-Max 4.0 pump, a strainer, and a pre-pressurized accumulator tank, making it convenient for boat owners to set up water pressure quickly and efficiently. With a flow rate of 4.8 gallons per minute and a shut-off pressure of 40 PSI, it serves four or more outlets, ensuring consistent water delivery across multiple fixtures. The system features a self-priming capability up to 10 feet, allowing it to operate effectively even when the water source is below the pump. Its run-dry ability enhances durability by preventing damage if the pump runs without water, and thermal overload protection safeguards against overheating during extended use. The Jabsco water system complies with ISO 8846 MARINE ignition protection standards, making it suitable for marine environments. The compact design measures approximately 12.2 inches long, 9.4 inches wide, and 9.8 inches high, with a weight of 12 pounds, making it suitable for installation in tight spaces on boats. Backed by a three-year warranty, this system provides peace of mind and long-term performance for marine water supply needs. The system includes fittings compatible with 3/4-inch hoses, enabling flexible installation options in various boat configurations.

Features:

• Flow rate of 4.8 gallons per minute (18 liters per minute) for efficient water supply

• Shut-off pressure of 40 PSI (2.8 bar) for consistent pressure control

• Self-priming capability up to 10 feet to facilitate installation in various setups

• Run-dry ability to prevent damage if the pump operates without water

• Thermal overload protection for extended pump lifespan

• Complies with ISO 8846 MARINE ignition protection standards for safe marine use

• Includes a PAR-Max 4.0 pump, strainer, and pre-pressurized accumulator tank for complete setup

• Compact size and lightweight design for easy installation in tight spaces on boats

• Fittings compatible with 3/4-inch hoses for flexible plumbing options

• Three-year warranty ensuring reliable performance and peace of mind
