Jabsco Vented Loop Solenoid Valve for 37010 Series Toilets - Part 37068-2000

Vented Loop Solenoid Valve for 37010 Series Toilet

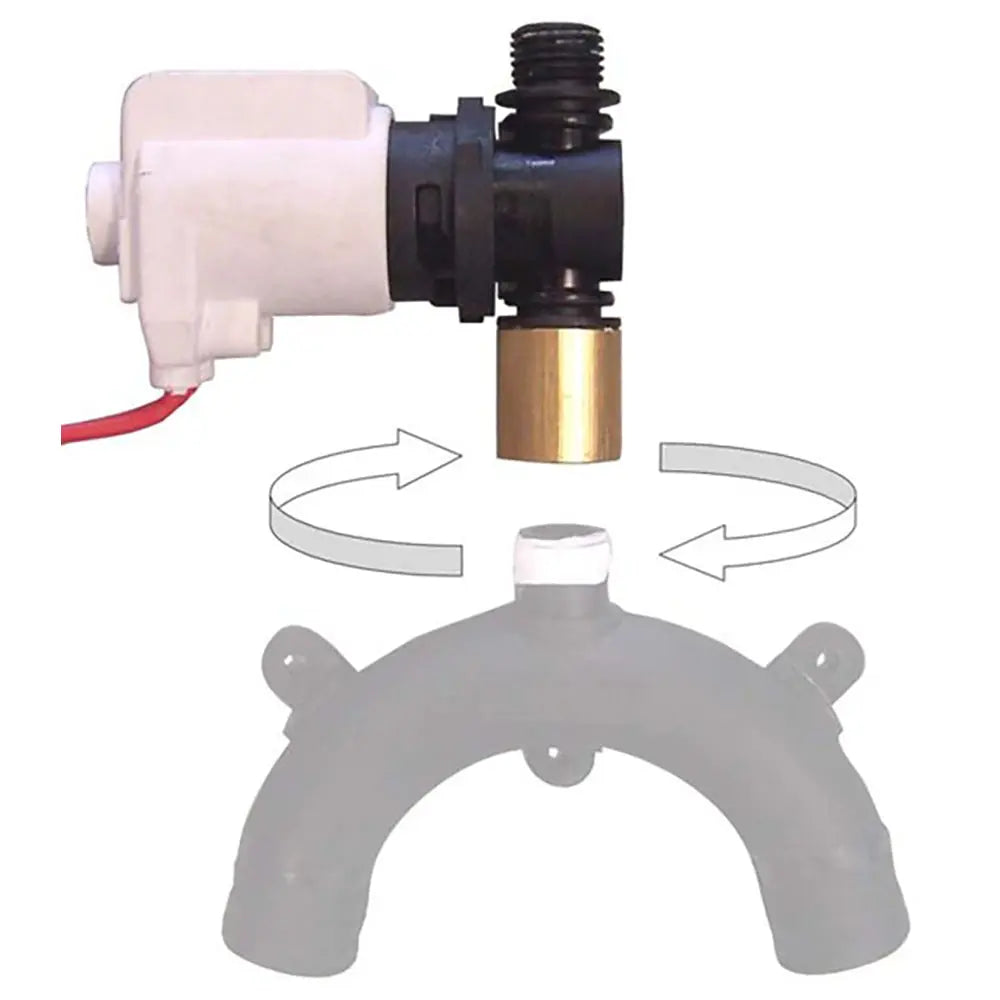

When installing a vented loop in the inlet hose, it is recommended that a Vented Loop Solenoid Valve (37068-2000) is connected to the vent air inlet to ensure maximum electric toilet performance and prime-ability. Connect the brass port of the valve (remove plastic filter, if installed) with the air inlet of the vented loop. Wire the solenoid valve in parallel with the toilet motor by connecting one side of the solenoid to the toilet flush switch and the other side to battery ground.

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Jabsco Vented Loop Solenoid Valve (Part Number 37068-2000) is designed to enhance the performance and reliability of 37010 series toilets by ensuring proper venting during operation. This valve is essential when installing a vented loop in the inlet hose, as it allows for efficient air flow and prevents siphoning or vacuum issues that could impair the toilet's function. Connecting the brass port (after removing the plastic filter, if present) to the vent air inlet guarantees optimal operation and ease of installation. The solenoid valve is wired in parallel with the toilet motor, with one side connected to the flush switch and the other to battery ground, enabling automatic venting during flushing cycles. Built by Jabsco, this valve is constructed to withstand marine or RV environments, ensuring durability and long-term performance. Proper installation of this vented loop solenoid valve can significantly improve the prime-ability and overall efficiency of your toilet system, reducing maintenance needs and enhancing user experience. This product complies with safety standards and includes important warnings regarding chemical exposure, such as lead content, which are outlined by regulatory agencies. For optimal results, it is recommended to follow the installation instructions carefully and verify compatibility with your specific toilet model. Designed for straightforward integration, the Jabsco Vented Loop Solenoid Valve offers a reliable solution for maintaining proper venting and operational integrity of your marine or RV sanitation system.

Features:

• Designed specifically for 37010 series toilets to improve venting efficiency

• Connects to vent air inlet with brass port, removing plastic filter if installed

• Wired in parallel with toilet motor for automatic venting during flush

• Durable construction suitable for marine and RV environments

• Ensures maximum prime-ability and reliable toilet performance
