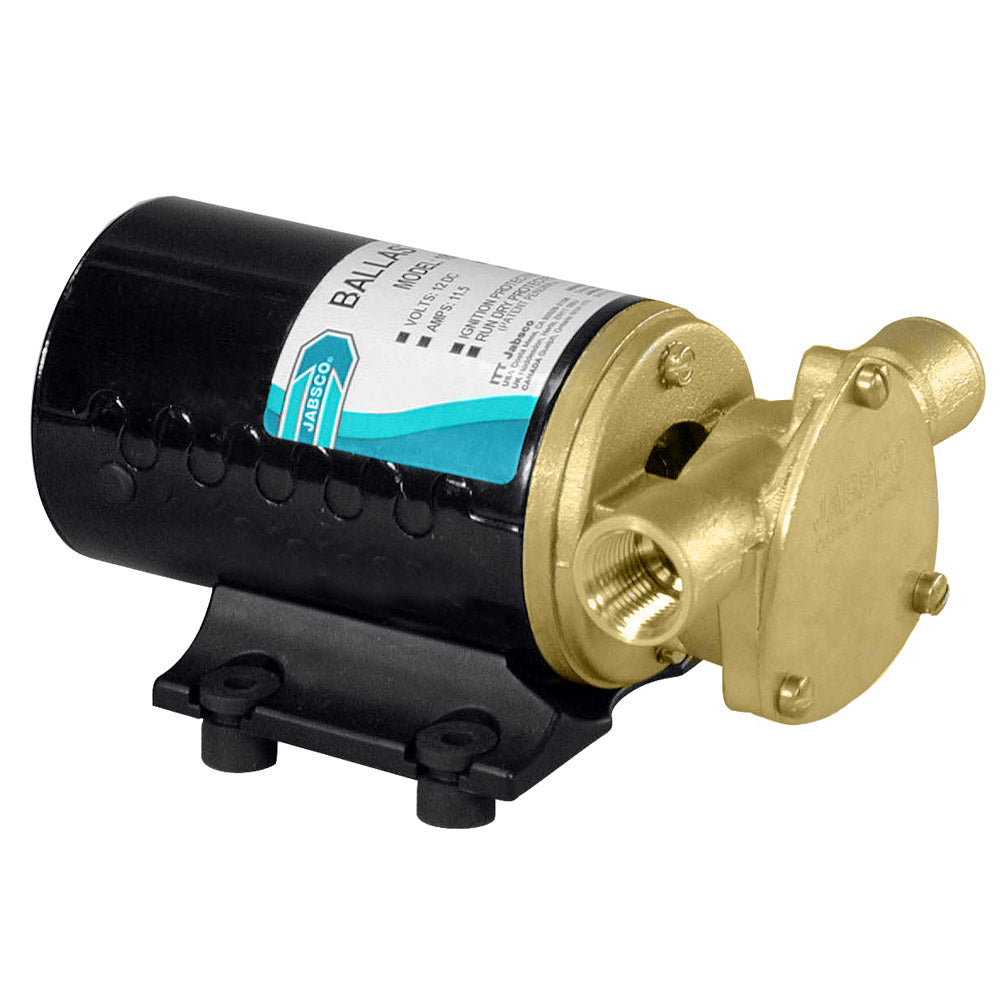

Jabsco Wakeboard Ballast Puppy Pump with Reversing Switch - 12V

Ballast Pump

Today's Wakeboard and Ski tow boats need to be able to take on water ballast to modify their wake formation. A development of our tried and tested Puppy Pumps lets these specialist craft rapidly take on and dump ballast, while modern electronics guard against dry running damage to the impeller

The choice of motor boat builders for ski and wakeboard ballast systems.

• Includes Run-Dry Protection Device

• 9 GPM (34 LPM) flow rate

• Approximately 80 pounds of water ballast per minute

• Self-priming to 3'

• Reversible pump both fills and empties ballast tanks

• Reversing switch

• Ignition protected

Ports

• 1" (25mm) hose barb external

• 1/2" NPT internal

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Jabsco Wakeboard Ballast Puppy Pump is designed to meet the demanding needs of modern wakeboard and ski tow boats, providing efficient water ballast management to optimize wake formation. This self-priming, 12V pump delivers a flow rate of approximately 9 gallons per minute, enabling your vessel to quickly take on or dump up to 80 pounds of water ballast per minute. Its robust construction and innovative electronics safeguard against dry running damage, ensuring reliable operation during critical ballast adjustments. The pump includes a run-dry protection device, making it suitable for frequent and intensive use in marine environments. Featuring a reversible motor, this pump can both fill and empty ballast tanks with ease, controlled via a convenient reversing switch. Its compatibility with 1-inch (25mm) hose barb external ports and 1/2-inch NPT internal ports simplifies installation and integration into your boat's existing ballast system. Designed for the rigorous demands of marine applications, the Jabsco Puppy Pump is a trusted choice among boat builders for ski and wakeboard ballast systems, delivering consistent performance and durability. Its ignition-protected design enhances safety in marine environments, making it a reliable component for your watercraft's ballast management system. For detailed installation and maintenance instructions, refer to the owner’s manual available online. Please be aware that this product may contain chemicals such as lead, which are subject to health and safety regulations, and proper handling is advised.

Features:

• Includes Run-Dry Protection Device for safe operation

• Flow rate of 9 GPM (34 LPM) for rapid ballast management

• Capable of approximately 80 pounds of water ballast per minute

• Self-priming to a depth of 3 feet for versatile installation

• Reversible pump design allows for filling and emptying ballast tanks

• Equipped with a reversing switch for easy control

• Ignition protected for safe use in marine environments

• Ports include 1-inch (25mm) external hose barb and 1/2-inch NPT internal fittings
