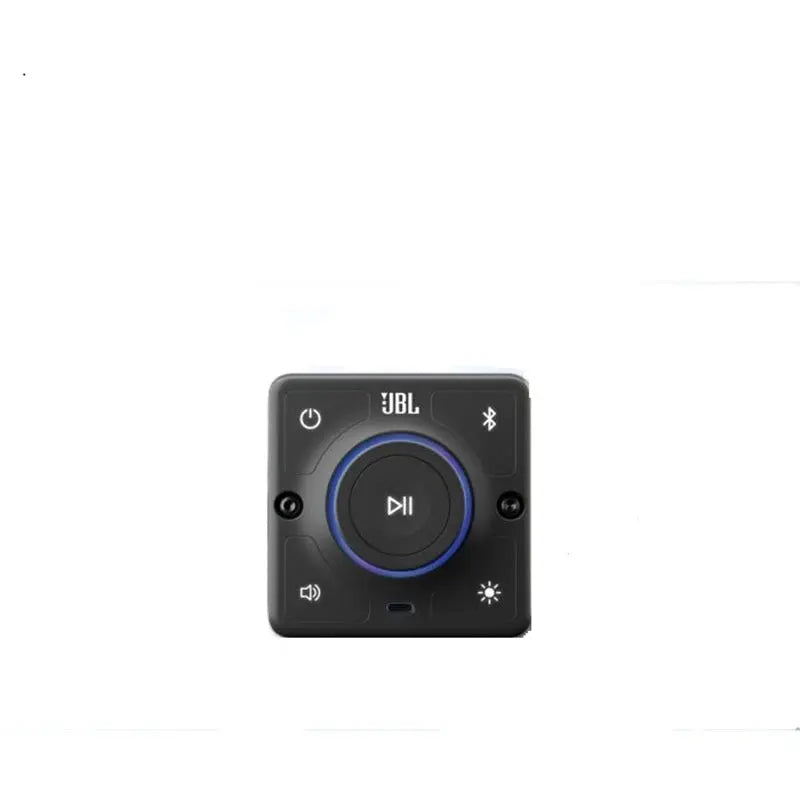

JBL AURA-BT-M Bluetooth Source Unit 4 Channel 2 Zone

JBL AURA-BT-M Bluetooth Source Unit 4 Channel 2 Zone

JBL AURA-BT-M Compact High Performance Bluetooth Marine Stereo

• 4 speaker performance audio


• Bluetooth 5.3 w/ 2-way control


• Intuitive illumination and backlit button controls


• Compact and shallow depth mounting enclosure


• Front IPX6 rating, designed to withstand the elements


• DC 12v Powered

Elevate your BT audio streaming experience with the JBL AURA-BT-M compact high performance Bluetooth Marine Stereo! AURA-BT-M supports up to 2 pair of JBL speakers, allowing for front and rear zone control, and is designed to withstand the elements. With Bluetooth 2-way control, it is easy to control the party from your personal BT device or from the AURA-BT-M marine stereo. Versatile in its compact size and small mounting enclosure, the AURA-BT-M has a front IPX6 rating to allow for mounting in all types of product vehicle segments, locations, and environments. Light up the day or night with the AURA-BT-M illumination features, selectable with 2 different light modes, or the ability to turn off the lighting feature.

Power supply
10-14VDC, 10A

Total speaker power output (Max. @THD 10%)
72W

Media Center power output (Max. @THD 10%)
4x18W

Wireless Bluetooth version
5.3

USB type C power output
10W

BT stereo dimensions (W x H x D)
3 5/8in x 3 5/8in x 2 7/8in overall

Mounting rough opening (W x H x D)
2 5/8in x 2 5/8in x 1 1/2in

What's in the Box:

• JBL AURA-BT-M Marine Stereo


• Wire Harness w/ Waterproof Connector


• Corrosion Resist Mounting Screws (x2)


• Owners Manual


• Quick Start Guide
