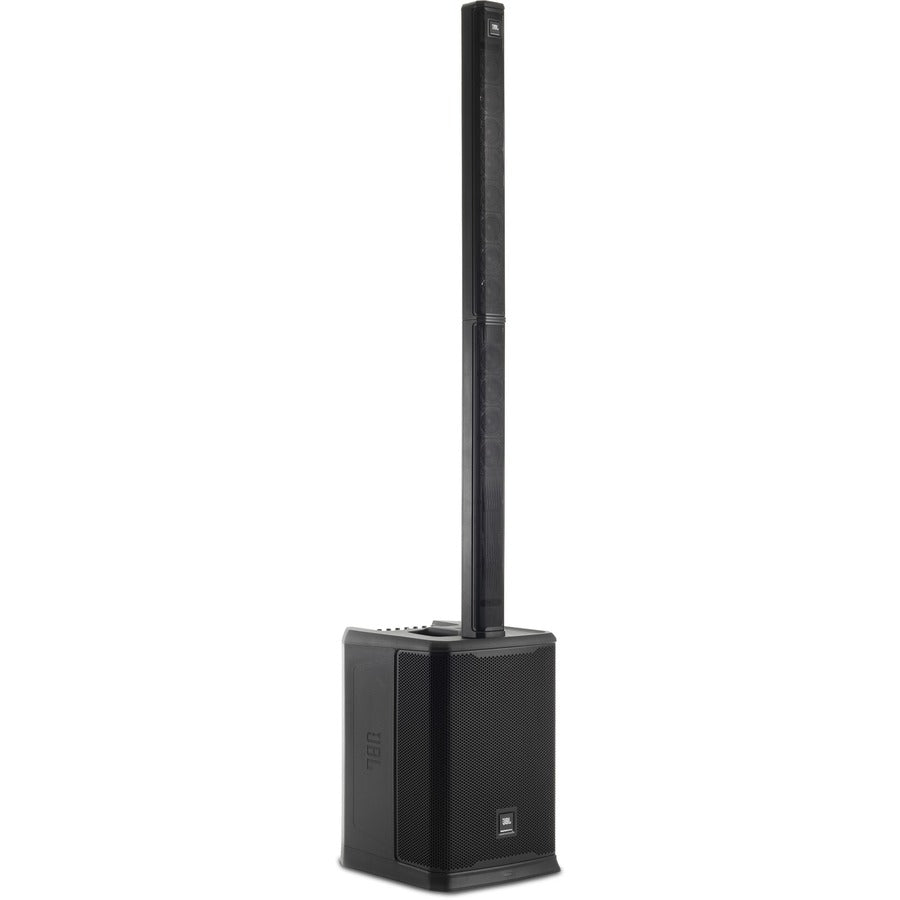

JBL PRX ONE All-in-One Powered Column PA System with Mixer and DSP

JBL ALL-IN-ONE POWERED COLUMN PA WITH MIXER AND DSP

The JBL PRX ONE is an advanced all-in-one powered column PA system designed for high-performance live sound reinforcement. Featuring a sleek, compact design, the PRX ONE delivers an impressive maximum SPL of 130dB, providing clear, powerful sound suitable for a variety of venues including concerts, corporate events, and houses of worship. Its acoustically optimized column array employs 12 custom-engineered 2.5-inch high-frequency drivers with copper-capped pole pieces, ensuring smooth and natural high-end response while minimizing distortion. The array's JBL AIM (Array Inumbration Mechanics) technology guarantees consistent front-to-back coverage with a wide 130° horizontal and 30° vertical dispersion pattern, making it ideal for audiences of all sizes and configurations. The system extends low-frequency response down to 35Hz through a 12-inch bass-reflex woofer, delivering rich bass that complements the detailed high frequencies.

Powered by a high-efficiency 2,000-watt (peak) fully bridged Class D amplifier with power factor correction, the PRX ONE offers clean, reliable power with superior headroom and low total harmonic distortion. It incorporates sophisticated crossover management and HF/LF coupling to ensure a natural, balanced sound across the entire frequency spectrum. The system includes four low-noise microphone preamps with constant bandwidth, providing flexibility for microphones and instruments alike. Connectivity options include professional-grade Neutrik connectors, dedicated phantom power, Hi-Z inputs, and Bluetooth 5.0 for wireless streaming, making it highly versatile for various applications.

The integrated Soundcraft-designed digital mixer features dual modes for general mix or channel-strip control, accessible via a user-friendly color LCD and remote app control. It also includes a comprehensive suite of professional DSP effects from Lexicon and dbx, such as reverb, delay, compression, and dbx DriveRack technology with AFS Pro Automatic Feedback Suppression, facilitating quick setup and high-quality sound shaping. The PRX ONE is suitable for DJs, musicians, rental companies, and event professionals seeking a powerful, portable, and feature-rich PA system. Its included nylon carrying bag enhances portability, making it easy to transport and set up for both installed and portable applications.

Features:

• Vertical array of 12 2.5-inch drivers delivers consistent, even high-frequency response from front to back

• Custom-designed high-frequency drivers feature copper-capped pole pieces to minimize distortion and ensure smooth, natural sound

• JBL AIM (Array Inumbration Mechanics) technology ensures consistent front-to-back coverage with optimized array-shading

• Wide 130° horizontal and 30° vertical dispersion pattern provides even audience coverage

• Sophisticated crossover management and HF/LF coupling produce natural low-end and uniform frequency response

• 12-inch bass-reflex woofer extends low-end response to 35Hz for deep, punchy bass

• 2000-watt peak Class D amplifier with power factor correction supplies clean, efficient power with high headroom and low distortion

• Four low-noise microphone preamps maintain bandwidth at any gain level for versatile input options

• Integrated digital mixer with dual modes and app control for quick, intuitive sound adjustments
