The Jims cam bushing drill jig allows the installation and drilling of a dowel pin to factory location supplied with #31 drill by Jims.

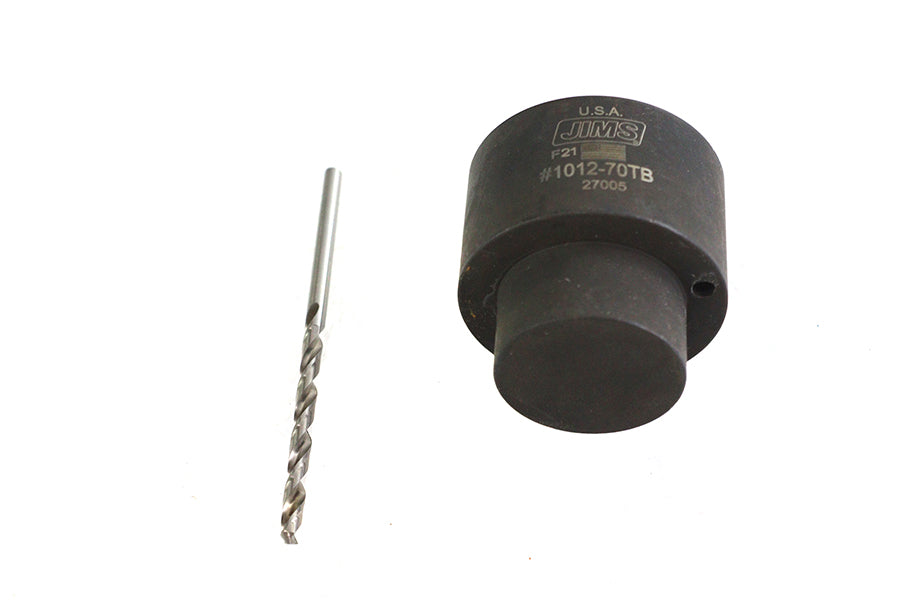

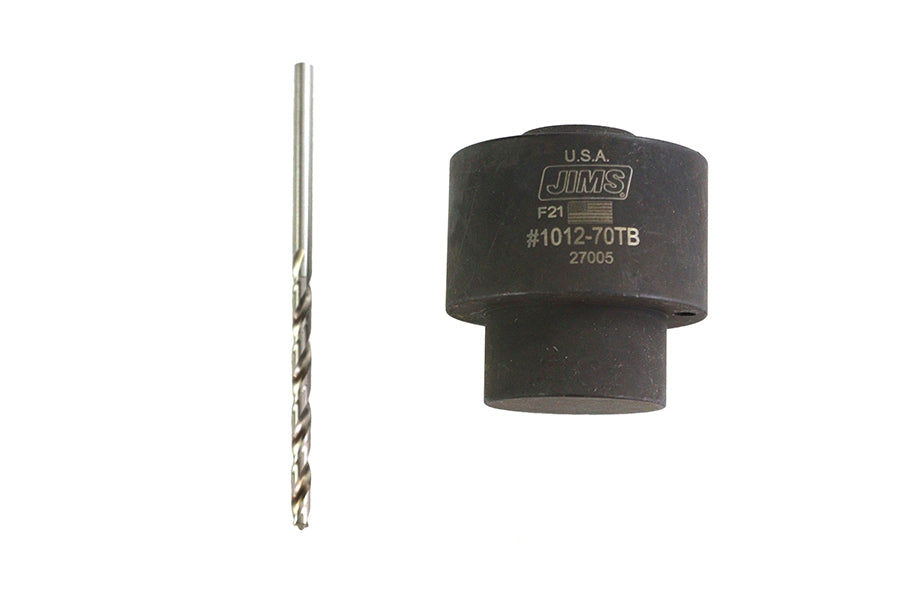

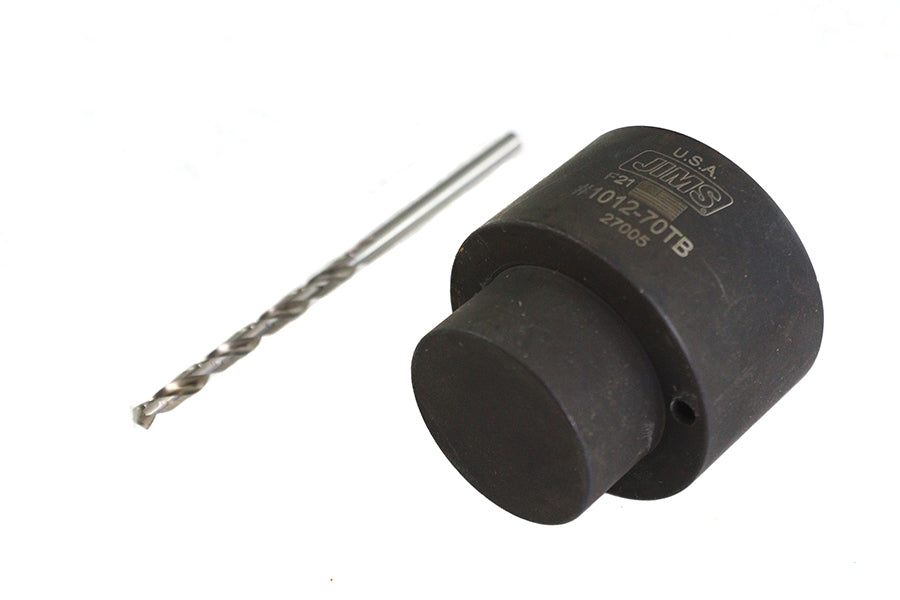

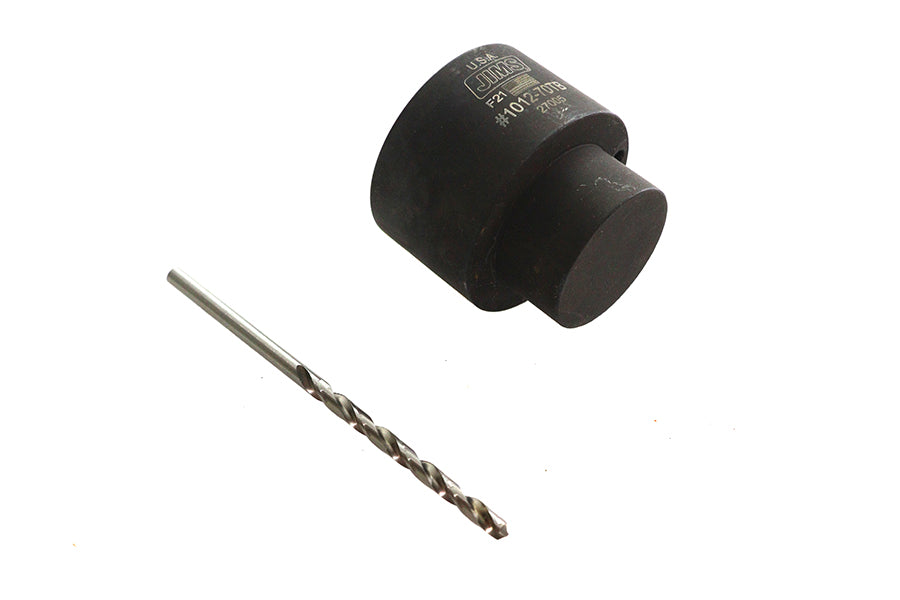

The Jims 1012-70TB Cam Bushing Drill Jig Tool is designed to support accurate cam bushing installation and dowel pin drilling on select 1970-1979 Harley-Davidson FL models. This specialized service tool helps technicians position the cam bushing correctly and drill the dowel pin hole at the factory-specified location, supporting dependable engine assembly and consistent repair results. A #31 drill is supplied by Jims for the drilling operation.
The drill jig is intended for professional motorcycle service, engine rebuilding, and restoration applications where precise component alignment is essential. Using the correct guide helps reduce the risk of misplaced holes, inaccurate bushing installation, and unnecessary damage to engine components. The Jims tool is built for repeatable use in a shop environment and provides a practical solution for servicing compatible Harley-Davidson cam assemblies.
Compatible applications include 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, and 1979 Harley-Davidson FL models. Verify the motorcycle model and year before beginning service to ensure proper application. The Jims 1012-70TB Cam Bushing Drill Jig Tool is supplied as an individual tool and is made in the USA. Follow applicable service procedures and use appropriate eye protection and drilling equipment during installation.
Features:
- Application: Cam bushing installation and dowel pin drilling
- Drill Included: Supplied with a #31 drill
- Fitment: 1970-1979 Harley-Davidson FL models
- Accessory Items: 16-0529 - Mini Motorcycle Lift Tool, 41-0151 - Gasoila Red Varnish Sealant, 41-0168 - Gasgacinch Gasket Sealer
