The Jims pinion bushing jig tool allows the installation and drilling of a dowel pin to factory location supplied with #31 drill by Jims.

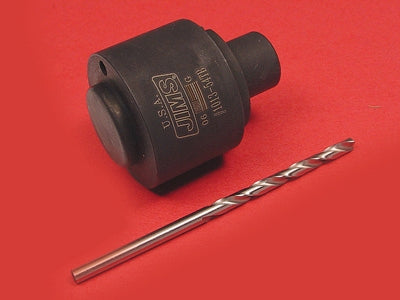

The Jims 1013-54TB Pinion Bushing Drill Jig Tool is designed to help install and drill a dowel pin to the factory-specified location during pinion bushing service. This purpose-built tool supports accurate positioning and consistent results when working on compatible Harley-Davidson FL models. The jig is supplied with a Jims #31 drill, providing the essential drilling component needed for the installation procedure.
Use the Jims pinion bushing jig as part of a properly equipped motorcycle service setup. Its guided design helps simplify the bushing dowel-pin drilling process and supports alignment with the original factory location. This tool is intended for professional technicians, experienced mechanics, and restoration applications where precision and repeatability are important. Always review the manufacturer’s instructions and follow proper workshop safety practices before beginning service.
The Jims 1013-54TB Pinion Bushing Drill Jig Tool fits 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, and 1963 Harley-Davidson FL models. Confirm motorcycle application and service requirements before use. For installation guidance, refer to the Jims instruction document at http://www.vtwinmfg.com/Instructions/16/16-1780.pdf. This tool is manufactured in the USA and is supplied as an individual unit.
Features:
- Application: Pinion bushing jig tool for drilling and installing a dowel pin at the factory-specified location
- Included Tooling: Supplied with a Jims #31 drill
- Fitment: Compatible with 1954-1963 Harley-Davidson FL models
- Accessory Items: 16-0529 - Mini Motorcycle Lift Tool, 41-0151 - Gasoila Red Varnish Sealant, 41-0168 - Gasgacinch Gasket Sealer
