SKU:16-1820

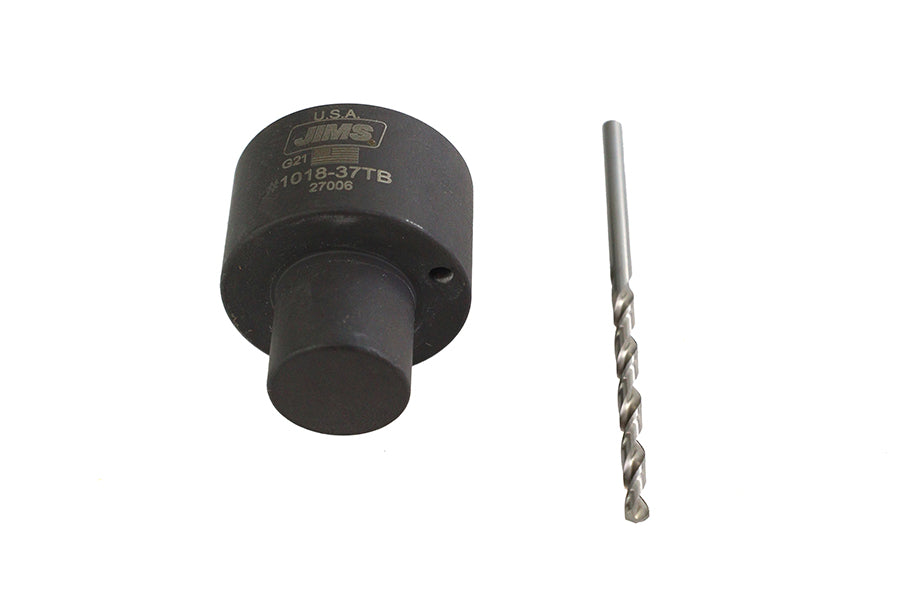

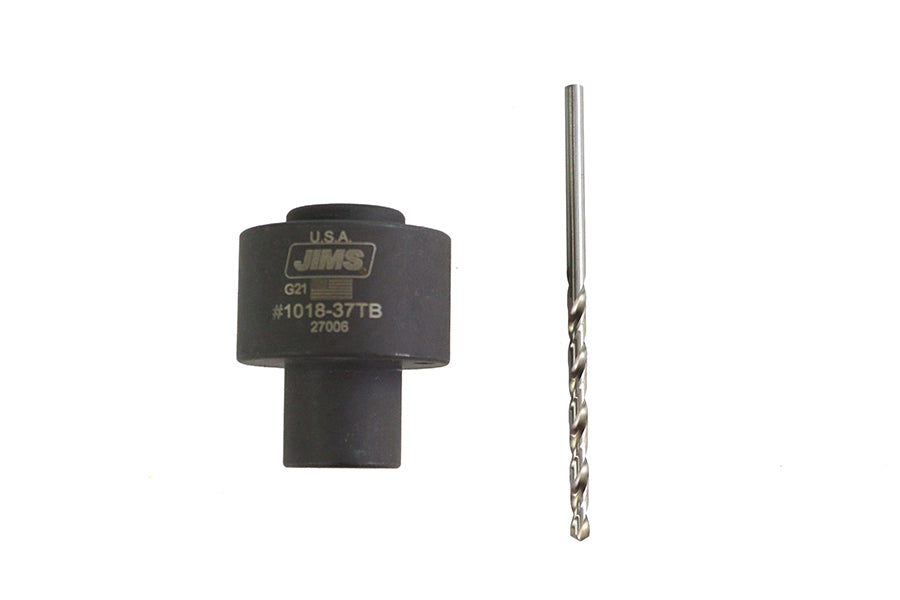

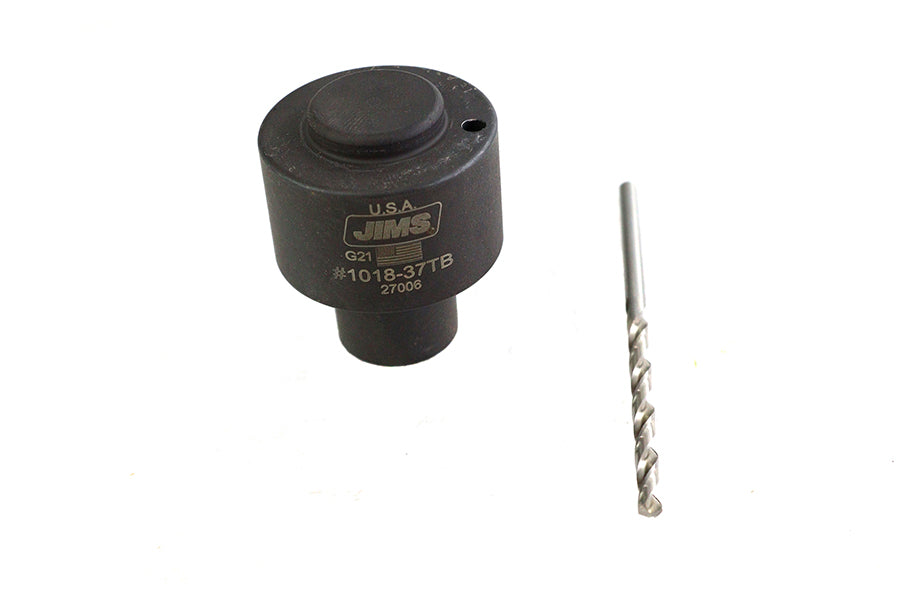

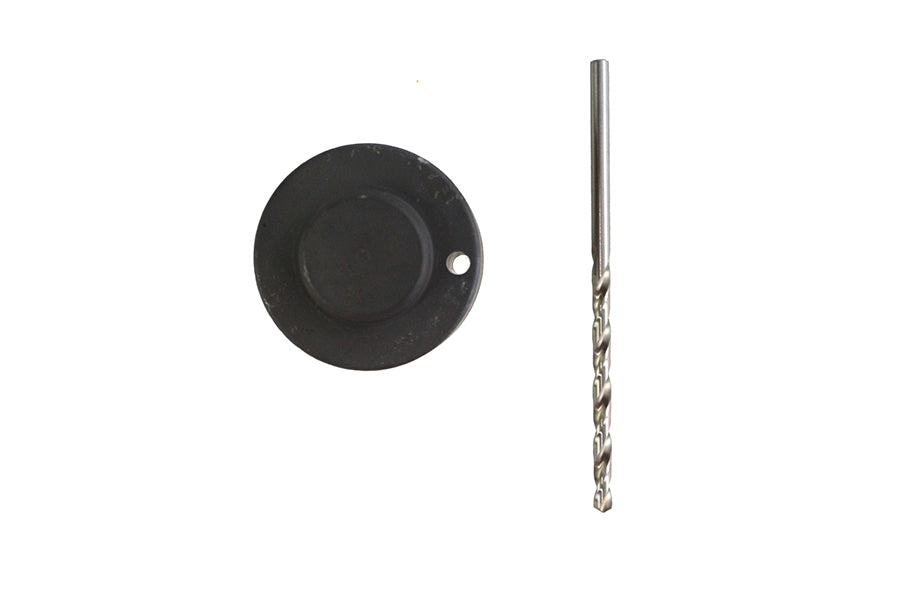

The Jims 1018-37TB Pinion Bushing Drill Jig Tool is designed to support accurate installation and drilling of a dowel pin at the factory location. This specialized service tool helps guide the drilling process during cam and pinion bushing work, providing a practical solution for restoring proper alignment on select vintage Harley-Davidson engines. It is intended for use by professional technicians, experienced builders, and restoration specialists who require a dedicated tool for precise bushing service.
The drill jig tool is compatible with Harley-Davidson EL models from 1936 through 1940 and FL models from 1941 through 1945. By referencing the original factory location, the Jims tool helps simplify a critical machining step and supports consistent results during engine rebuilding or repair. Always verify the motorcycle model, year, and application before beginning service, and follow appropriate workshop procedures for drilling, bushing installation, and final inspection.
Built for use in demanding repair environments, the Jims 1018-37TB provides a focused, application-specific design rather than a general-purpose drilling guide. Its compact format makes it suitable for shop tool storage while keeping the required jig available for vintage Harley-Davidson powertrain work. Use it with the correct supporting equipment and protective practices to help ensure safe, controlled operation. This tool is supplied as an individual unit, with a unit of measure of each, and is manufactured in the USA. Accessory items are available separately for related motorcycle service and sealing tasks.
Features:
