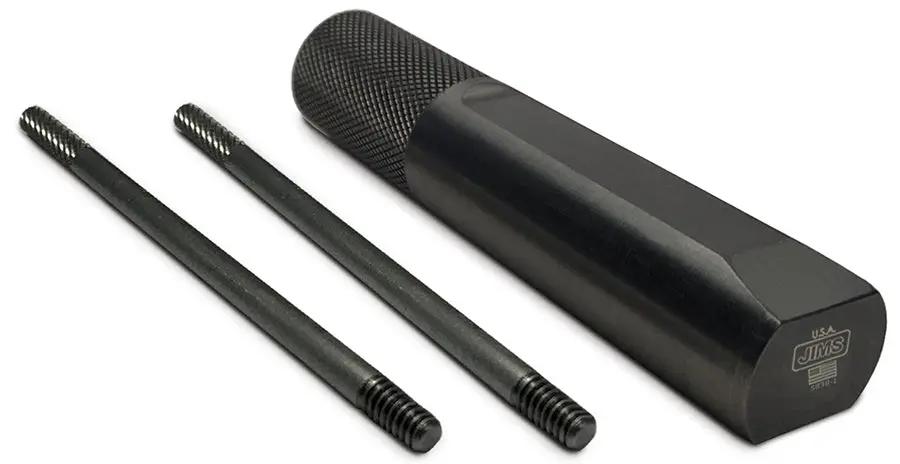

Jims oil pump alignment tool is the perfect aid for the technician to either assemble as individual components with supplied studs or as an assembly with the alignment dowel.
The Jims M8 Oil Pump Alignment Tool is designed to facilitate precise installation of cam support plates, oil pumps, gerotors, and pump covers on Harley Davidson motorcycles. This tool ensures perfect alignment with the pinion shaft flat, which is critical for optimal oil pump operation and longevity. Proper alignment helps prevent oil leaks and mechanical wear, making this tool an essential addition to any Harley Davidson maintenance arsenal. Its sturdy construction and user-friendly design make it suitable for both professional mechanics and dedicated enthusiasts working on models from 2018 through 2024 FLST and FXST series.
Features:
- Designed for accurate alignment of oil pump components to ensure proper function.
- Facilitates precise placement of cam support plates, gerotors, and pump covers.
- Helps to seal the oil pump o-ring effectively within the crankcase.
- Constructed from durable materials for long-lasting performance.
- Made in the USA, ensuring quality and craftsmanship.
Fitment
Harley Davidson FLST 2018
Harley Davidson FLST 2019
Harley Davidson FLST 2020
Harley Davidson FLST 2021
Harley Davidson FLST 2022
Harley Davidson FLST 2023
Harley Davidson FLST 2024
Harley Davidson FLST 2025
Harley Davidson FLST 2026
Harley Davidson FXST 2019
Harley Davidson FXST 2020
Harley Davidson FXST 2021
Harley Davidson FXST 2022
Harley Davidson FXST 2023
Harley Davidson FXST 2024
Harley Davidson FXST 2025
Harley Davidson FXST 2026
