SKU:10-8323

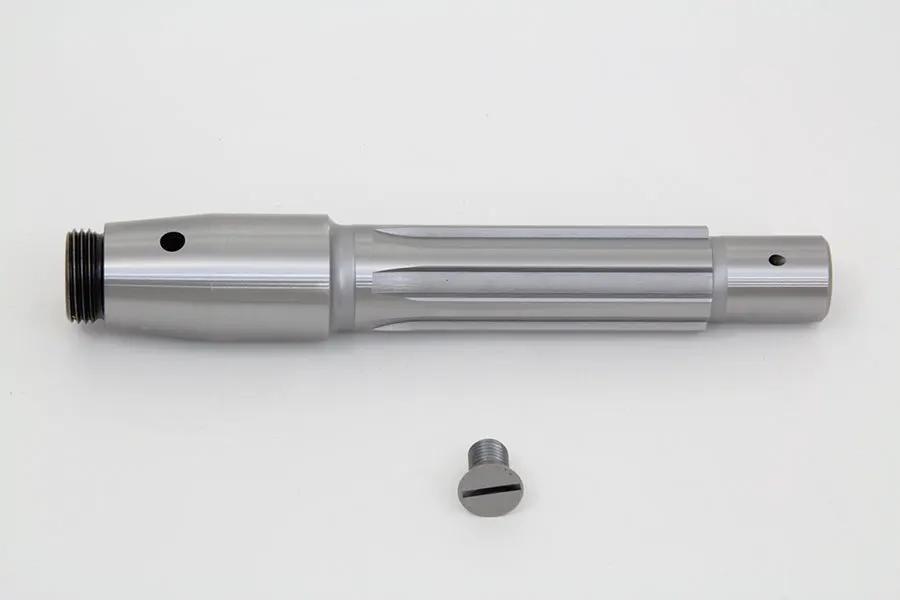

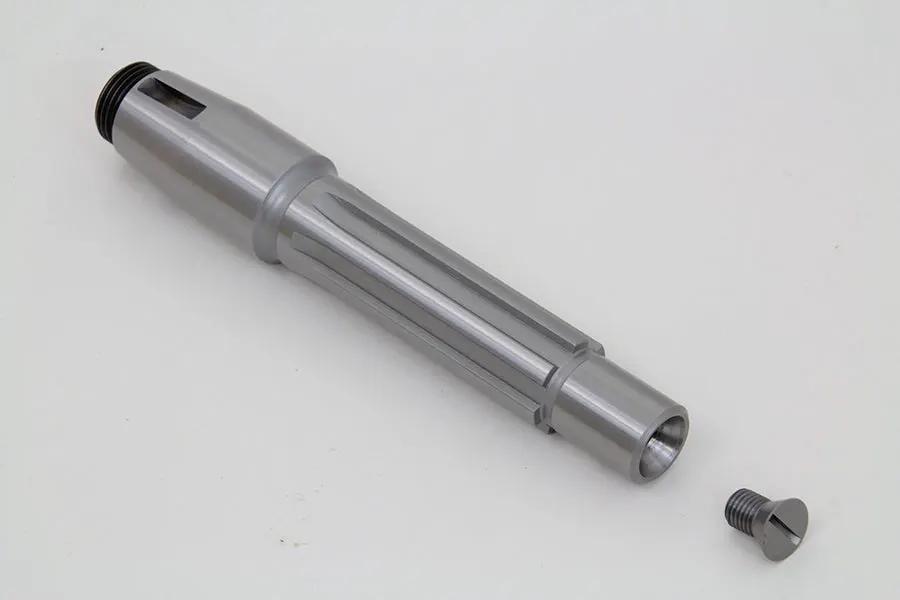

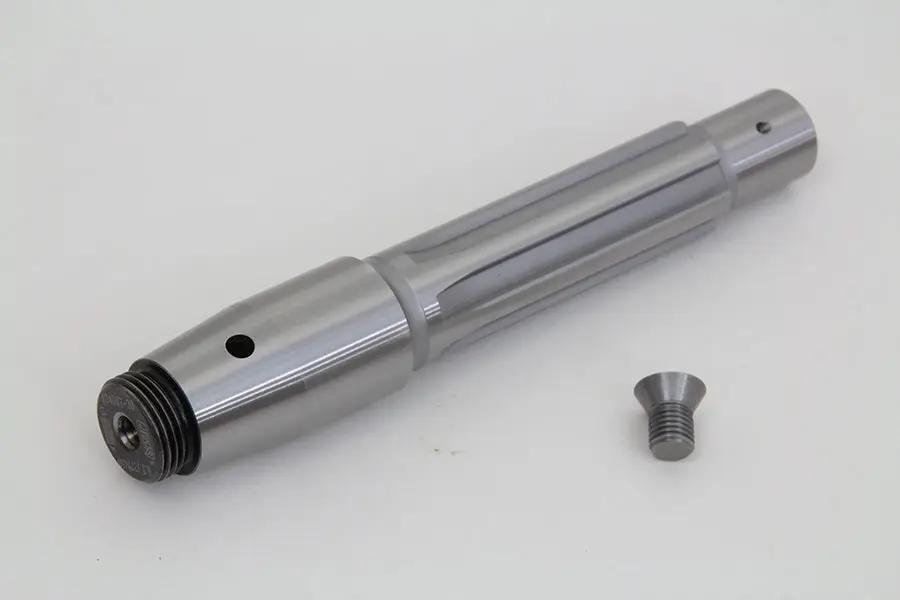

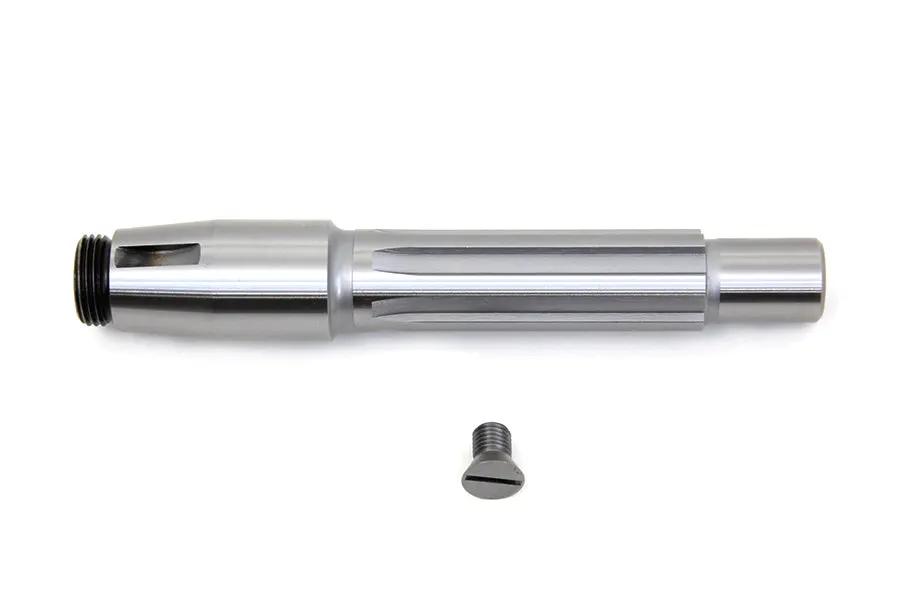

Jims Pinion Shaft 24007-39 delivers a precise 1.000 inch outer diameter for vintage Harley-Davidson engines, designed for EL and FL models from 1939 to 1948. Built in the USA, this shaft ensures precise fitment and reliable performance during engine operation. Its robust construction makes it suitable for both restoration projects and rebuilds, providing durability and consistent power transfer within your motorcycle's drivetrain.
Installation note: Proper spline timing is critical. Ensure the key way slot is positioned at 12 o'clock on the shaft with the oil hole and large spline at the 3 o'clock position before final assembly in the flywheel.
Jims pinion shaft has an outer diameter of 1.000 inch. Shaft includes screws.The Jims Pinion Shaft Part Number 24007-39 is a high-quality component designed specifically for vintage Harley Davidson models, including the EL and FL series from 1939 to 1948. Crafted in the USA, this pinion shaft ensures precise fitment and reliable performance during engine operation. Its robust construction makes it suitable for both restoration projects and rebuilds, providing durability and consistent power transfer within your motorcycle's drivetrain. Proper installation requires attention to spline timing; ensure the key way slot is positioned at 12 o'clock on the shaft with the oil hole and large spline at the 3 o'clock position before final assembly in the flywheel. This alignment is critical for optimal performance and longevity of the component. The pinion shaft's dimensions are designed to meet OEM specifications, facilitating a straightforward installation process and maintaining the integrity of your engine's timing and gear alignment. Compatibility with OEM cross-referenced parts guarantees that this component integrates seamlessly with existing systems, maintaining the motorcycle's original performance standards. Whether you're restoring a vintage Harley or performing maintenance, this pinion shaft provides a reliable solution built to meet the demanding requirements of classic motorcycle engines.
Features:
