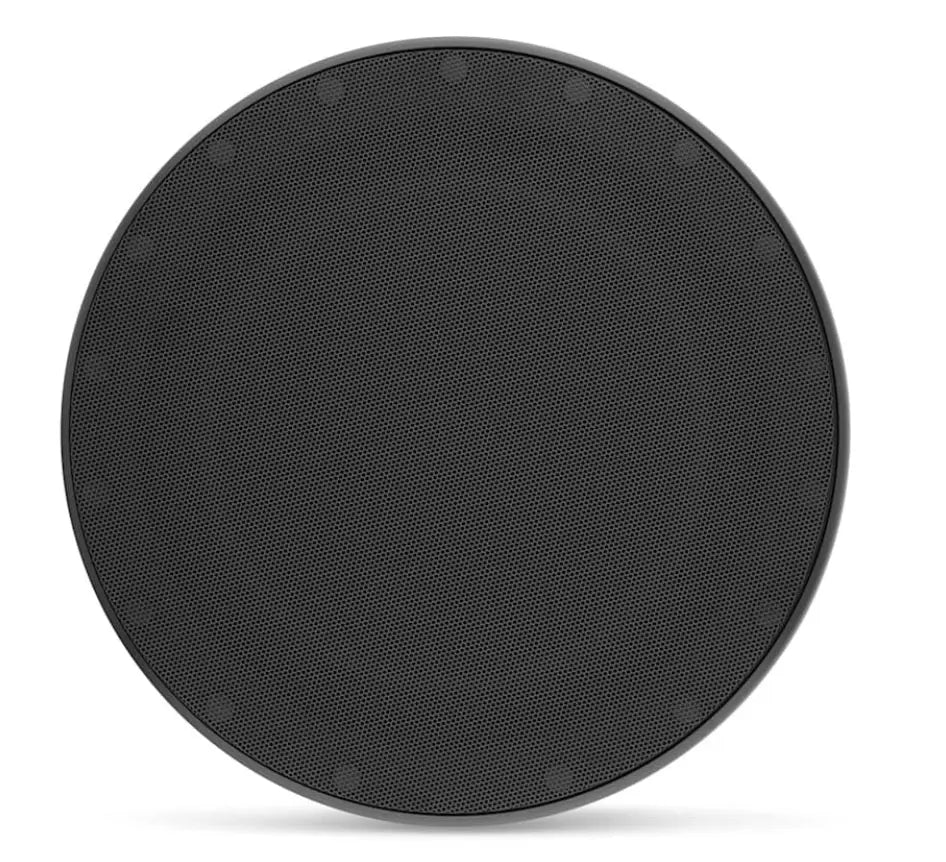

JL Audio M6 10in Subwoofer Black LUXe Grille Single Speaker

JL Audio M6 10in Subwoofer Black LUXe Grille Single Speaker

M6-10IB-L-SbSb-4 93916

Model: 010-03869-00

• WORLD-CLASS PERFORMANCE: This bass will impress you, not only with its sheer level but even more with its smoothness, balance and precision.


• MODEL SPECIFIC: These specialized versions are made for specific applications and optimized to perform in compact enclosures or in infinite baffle installations without dedicated enclosures.


• POWERFULLY EFFICIENT: M6 marine subwoofers are designed to benefit from operation with quality amplification.


• DMA-OPTIMIZED WOOFERS: Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar bass sound quality.


• REAL MARINE DUTY: For long-term use, all models are built to withstand saltwater marine environments and deliver years of listening enjoyment.

Optimized for high-powered operation, M6 marine subwoofers can be installed in various applications and are built to withstand the rigors of marine use.

Specifications

Size
10 in

Color
Black

Physical dimensions (Diameter)
10.75" (273 mm)

Physical dimensions (Depth)
7.53" (191 mm)

Weight
13.2 lbs (6.0 kg)

Speaker type
Infinite Baffle or Enclosed-use Subwoofer

Continuous power handling (RMS)
250 W

Sensitivity (SPL @ 1 W/1 m)
(IB): 86.1 dB, (W): 86.4 dB

Nominal impedance
4 Ohms

Recommended amplifier power (RMS)
75-250 W

Cone material
Injection-molded, mica-filled polypropylene

Warranty
3 years

Speaker connections
Spade Connectors

Mounting Dimensions

Mounting diameter clearance
6.98" (177 mm)

Frontal grille protrusion
0.55" (14 mm)

Mounting hole
10.5625" (268 mm)

Bolt hole circle
11.46" (291 mm)

Driver displacement
0.099 cu ft (2.80 L)

Free Air Resonance (FS) Parameters
(IB): 43.76 Hz, (W): 34.58 Hz

Electrical "Q" (Qes)
(IB): 0.907, (W): 0.522

Total "Q" (Qts)
(IB): 0.840, (W): 0.496

Equivalent Compliance (Vas)
(IB): 0.98 cu ft (27.75 L), (W): 1.22 cu ft (34.49 L)

One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied)
(IB/W): 0.52" (13 mm)

Reference Efficiency (NO)
0.28%

Effective piston area (SD)
(IB/W): 50.11 in sq (0.0323 m sq)

DC resistance (RE)
(IB): 4.543 Ohms, (W): 3.619 Ohms

What's in the Box:

• One marine subwoofer


• One grille


• Six stainless steel mounting screws


• Six stainless steel washers


• Grille removal tool
