JL Audio M6 10in Subwoofer with Titanium Sport Grille Infinite Baffle, RGB LED

Explore the JL Audio M6 10in Subwoofer: Power and Style Combined

JL Audio M6 10in Subwoofer with Titanium Sport Grille Infinite Baffle, RGB LED

93638

Model: M6-10IB-S-GmTi-i-4

M6 10-inch Marine Subwoofer with TransflectiveTM LED Lighting for Infinite-Baffle Use (250 W, 4 ohms) - Gray Metallic Trim Ring, Titanium Sport Grille

With appropriate system setup, the addition of a subwoofer allows your smaller main speakers to be free of the burden of reproducing low frequencies. This allows your whole system to play louder and to sound cleaner at all listening levels.

Purpose-engineered and built for real marine duty, the M6 infinite-baffle woofers are designed to operate without a dedicated enclosure. Long excursion capability and rugged suspension systems help produce deep, powerful bass response that will transform your boat's audio system.

The M6-10IB is best used with amplifier power in the 75W - 250W range and is optimized to operate with a large volume of air behind it (at least 2 cu. ft. / 56.6 l). If you need a Subwoofer that operates in a small sealed enclosure, select our M6-10W, instead.

Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.

Production of all M6 loudspeakers takes place in JL Audio's Miramar, Florida factory, using global components and materials.

Sold individually.

USA Limited Warranty: Two (2) years from the original date of purchase.

Specifications

Continuous Power Handling (RMS)250 W

Nominal Impedance (Znom)
4 ohms

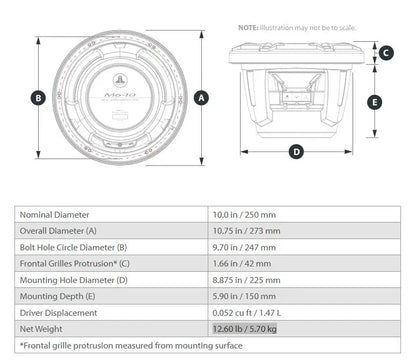

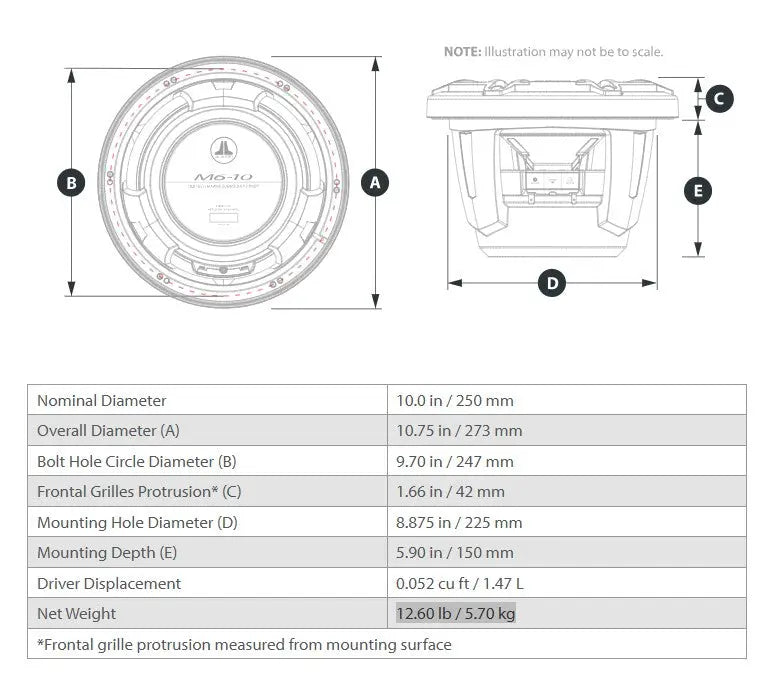

Physical Specifications

Nominal Diameter
10.0 in / 250 mm

Overall Diameter
10.75 in / 273 mm

Bolt Hole Circle Diameter
9.70 in / 247 mm

Frontal Grille Protrusion
1.66 in / 42 mm

Mounting Hole Diameter
8.875 in / 225 mm

Mounting Depth
5.90 in / 150 mm

Driver Displacement
0.052 cu ft / 1.47 L

Net Weight
12.60 lb / 5.70 kg

Parameters

Free Air Resonance (Fs)
43.76 Hz

Electrical "Q" (Qes)
0.907

Mechanical "Q" (Qms)
11.315

Total Speaker "Q" (Qts)
0.84

Equivalent Compliance (Vas)
0.54 cu ft / 15.29 L

One-Way Linear Excursion (Xmax)*
0.52 in / 13.2 mm

Reference Efficiency (no)
0.28%

Efficiency (1 W / 1 m)**
86.1 dB SPL

Effective Piston Area (Sd)
50.11 sq in / 0.0323 sq m

DC Resistance (Re)
4.54 ohms

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer's output capability and should not be used as a comparison to other subwoofers to determine which one is "louder".
Sealed Enclosure Specifications

Wall Thickness
0.75 in / 19 mm

Front Baffle Thickness
0.75 in / 19 mm

Volume (net int.)
2.00 cu ft / 56.6 L

External Width
17 in / 432 mm

External Height
17 in / 432 mm

External Depth
16.25 in / 413 mm

F3
41.54 Hz

Fc
53.41 Hz

Qtc
1.0253

Ported Enclosure Specifications

Wall Thickness
0.75 in / 19 mm

Front Baffle Thickness
0.75 in / 19 mm

Volume (net int.)
2.50 cu ft / 70.8 L

External Width
17 in / 432 mm

External Height
17 in / 432 mm

External Depth
20.50 in / 676 mm

Internal Port Diameter
4 in / 102 mm

Port Length
12 in / 305 mm

Tuning Frequency (Fb)
37 Hz

F3
25.09 Hz

Superior Sound Performance with JL Audio

The JL Audio M6 10in Subwoofer delivers outstanding audio clarity and deep bass, making it an excellent choice for audiophiles and casual listeners alike. Designed with precision engineering, this subwoofer offers a performance-driven experience, ensuring your music sounds rich and full. Its 10-inch size strikes a balance between power and compactness, perfect for various vehicle installations. The JL Audio brand is renowned for premium quality, and the M6 series continues that legacy by providing smooth, distortion-free bass response, letting you enjoy your favorite tracks the way they were meant to be heard.

Durable Titanium Sport Grille and Infinite Baffle Design

The subwoofer features a sleek titanium sport grille that not only enhances its aesthetic appeal but also provides exceptional protection against debris and damage. This grille ensures long-lasting durability even under tough conditions. Additionally, the infinite baffle design enhances sound projection by allowing the subwoofer to use the vehicle’s interior as an enclosure, resulting in deeper bass without the need for bulky boxes. This innovative design maximizes space efficiency while delivering powerful, resonant low frequencies for an immersive audio experience.

Customizable RGB LED Lighting for Visual Impact

Adding a modern flair, the JL Audio M6 subwoofer incorporates RGB LED lighting that you can customize to match your vehicle’s interior or personal style. The lighting seamlessly integrates with the subwoofer’s design, enhancing both form and function. Whether you prefer subtle ambient glow or vibrant colors, the RGB LEDs create a dynamic visual effect that complements the powerful sound output. This combination of sound performance and eye-catching aesthetics makes the JL Audio M6 a standout choice for those who want to upgrade both audio quality and style.
