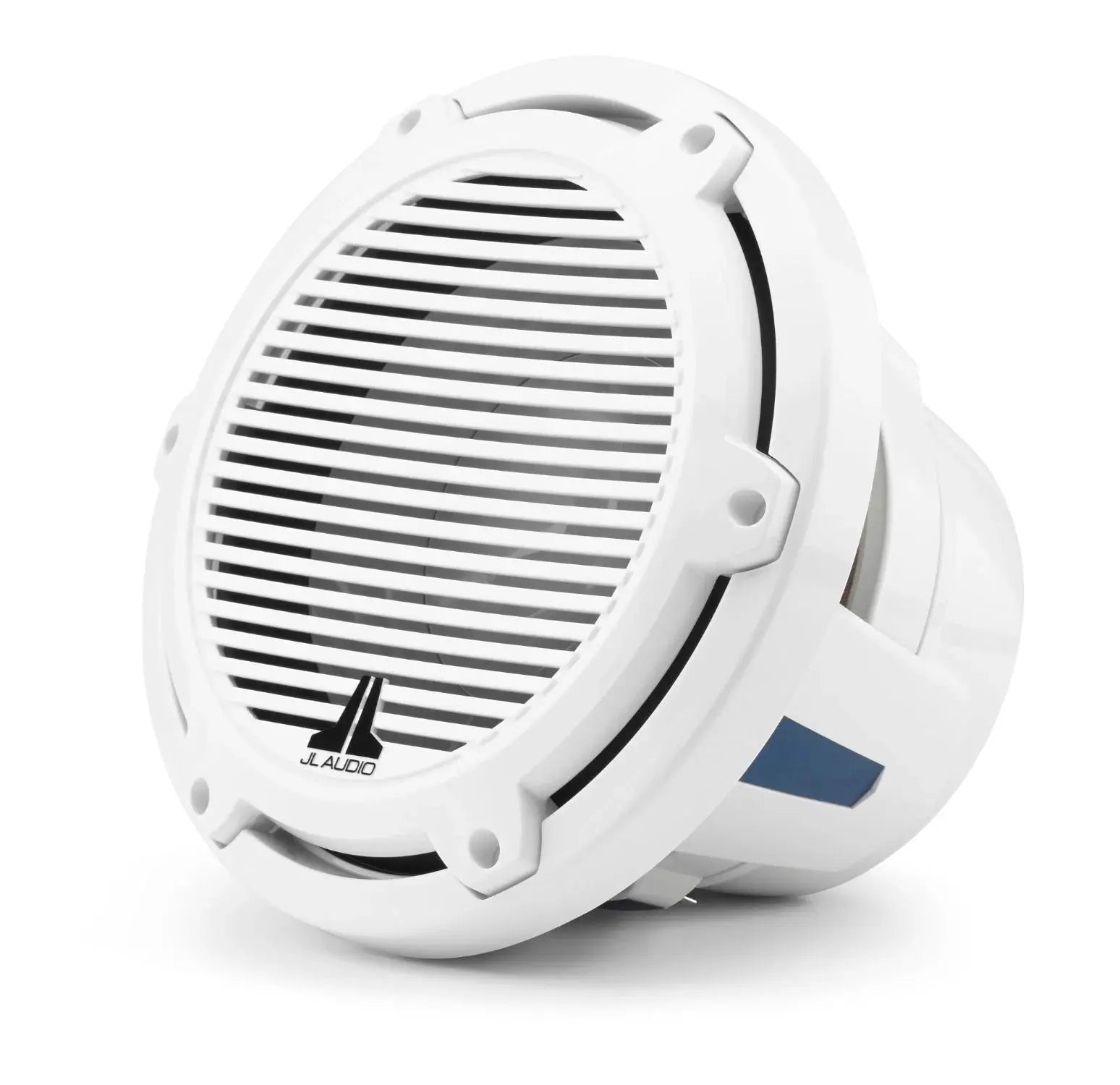

JL Audio M6 10in Subwoofer with White Classic Grille Infinite Baffle

Explore the JL Audio M6 10in Subwoofer with White Classic Grille Infinite Baffle

JL Audio M6 10in Subwoofer with White Classic Grille Infinite Baffle

93633

Model: M6-10IB-C-GwGw-4

M6 10-inch Marine Subwoofer for Infinite-Baffle Use (250 W, 4 ohms) - Gloss White Trim Ring, Gloss White Classic Grille

With appropriate system setup, the addition of a subwoofer allows your smaller main speakers to be free of the burden of reproducing low frequencies. This allows your whole system to play louder and to sound cleaner at all listening levels.

Purpose-engineered and built for real marine duty, the M6 infinite-baffle woofers are designed to operate without a dedicated enclosure. Long excursion capability and rugged suspension systems help produce deep, powerful bass response that will transform your boat's audio system.

The M6-10IB is best used with amplifier power in the 75W - 250W range and is optimized to operate with a large volume of air behind it (at least 2 cu. ft. / 56.6 l). If you need a Subwoofer that operates in a small sealed enclosure, select our M6-10W, instead.

Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.

Production of all M6 loudspeakers takes place in JL Audio’s Miramar, Florida factory, using global components and materials.

Sold individually.

USA Limited Warranty: Two (2) years from the original date of purchase

Specifications

General Specifications

Continuous Power Handling (RMS)
250 W

Nominal Impedance (Znom)
4 ohms

Physical Specifications

Nominal Diameter
10.0 in / 250 mm

Overall Diameter
10.75 in / 273 mm

Bolt Hole Circle Diameter
9.70 in / 247 mm

Frontal Grilles Protrusion
1.66 in / 42 mm

Mounting Hole Diameter
8.875 in / 225 mm

Mounting Depth
5.90 in / 150 mm

Driver Displacement
0.052 cu ft / 1.47 L

Net Weight
12.60 lb / 5.70 kg

Parameters

Free Air Resonance (Fs)
43.76 Hz

Electrical "Q" (Qes)
0.907

Mechanical "Q" (Qms)
11.315

Total Speaker "Q" (Qts)
0.84

Equivalent Compliance (Vas)
0.54 cu ft / 15.29 L

One-Way Linear Excursion (Xmax)*
0.52 in / 13.2 mm

Reference Efficiency (no)
0.28%

Efficiency (1 W / 1 m)**
86.1 dB SPL

Effective Piston Area (Sd)
50.11 sq in / 0.0323 sq m

DC Resistance (Re)
4.54 ohms

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is "louder".
Sealed Enclosure Specifications

Wall Thickness
0.75 in / 19 mm

Front Baffle Thickness
0.75 in / 19 mm

Volume (net int.)
2.00 cu ft / 56.6 L

External Width
17 in / 432 mm

External Height
17 in / 432 mm

External Depth
16.25 in / 413 mm

F3
41.54 Hz

Fc
53.41 Hz

Qtc
1.0253

Ported Enclosure Specifications

Wall Thickness
0.75 in / 19 mm

Front Baffle Thickness
0.75 in / 19 mm

Volume (net int.)
2.50 cu ft / 70.8 L

External Width
17 in / 432 mm

External Height
17 in / 432 mm

External Depth
20.50 in / 676 mm

Internal Port Diameter
4 in / 102 mm

Port Length
13.50 in / 343 mm

Tuning Frequency (Fb)
30 Hz

F3
25.09 Hz

Exceptional Sound Quality with JL Audio

The JL Audio M6 10in Subwoofer is engineered to deliver rich and precise bass, making it a top choice for audiophiles and car audio enthusiasts alike. Utilizing JL Audio's renowned engineering expertise, this subwoofer provides deep and clear sound reproduction without distortion. Its advanced motor structure and high-excursion design allow speakers to perform efficiently at both moderate and high output levels. Integrating this subwoofer enhances your audio system, offering a bold bass experience that elevates all types of music.

Innovative Infinite Baffle Design for Seamless Installation

This JL Audio subwoofer utilizes an infinite baffle design, which means it doesn’t require a traditional enclosure. This innovative approach simplifies installation and reduces cabinet resonances, resulting in cleaner, tighter bass response. The infinite baffle setup is perfect for vehicles where interior space is limited or enthusiasts who prefer a sleek, minimalist aesthetic. By mounting the subwoofer directly to the vehicle's factory baffle or a custom infinite baffle panel, you maintain sound quality while improving power handling.

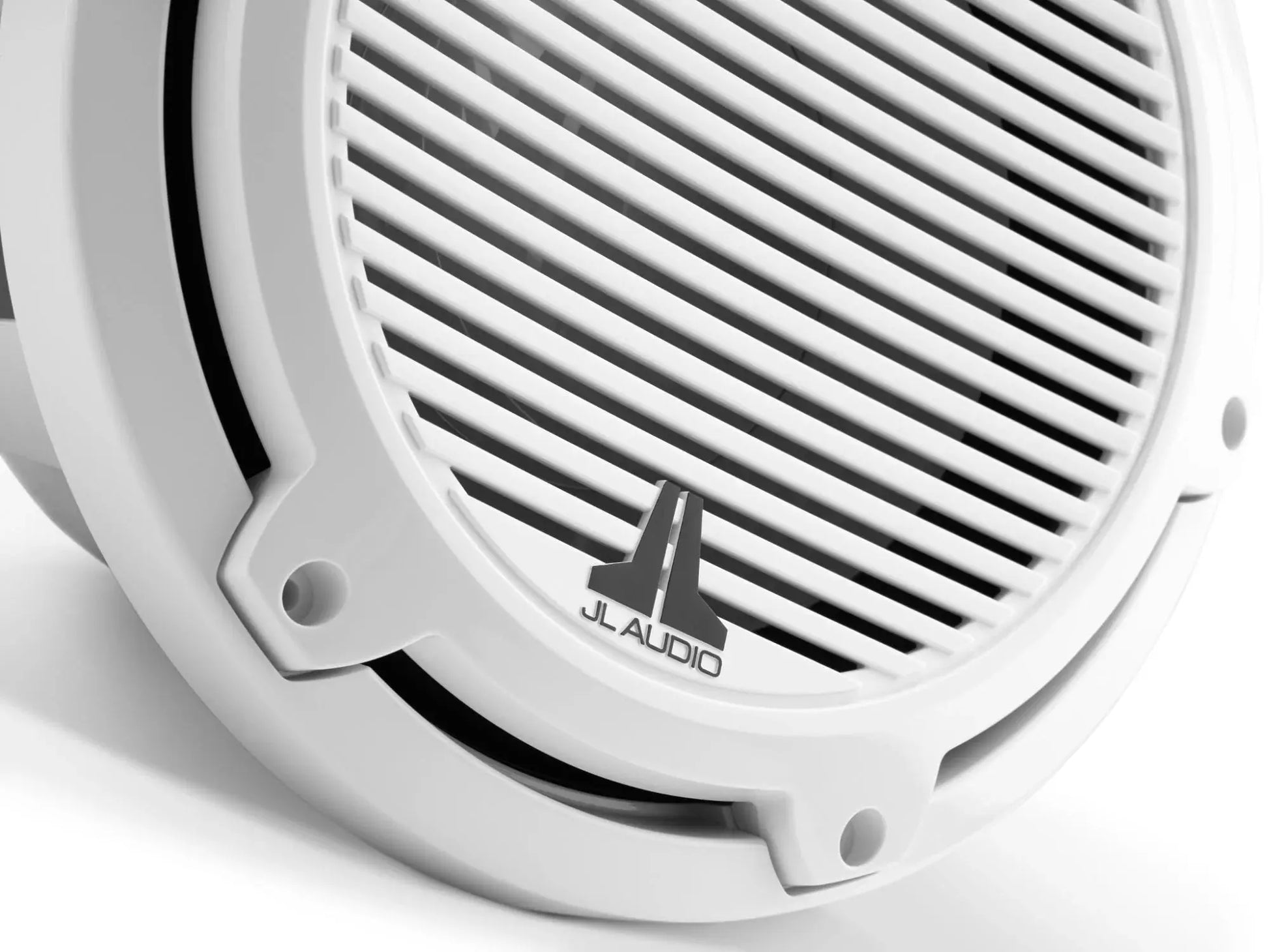

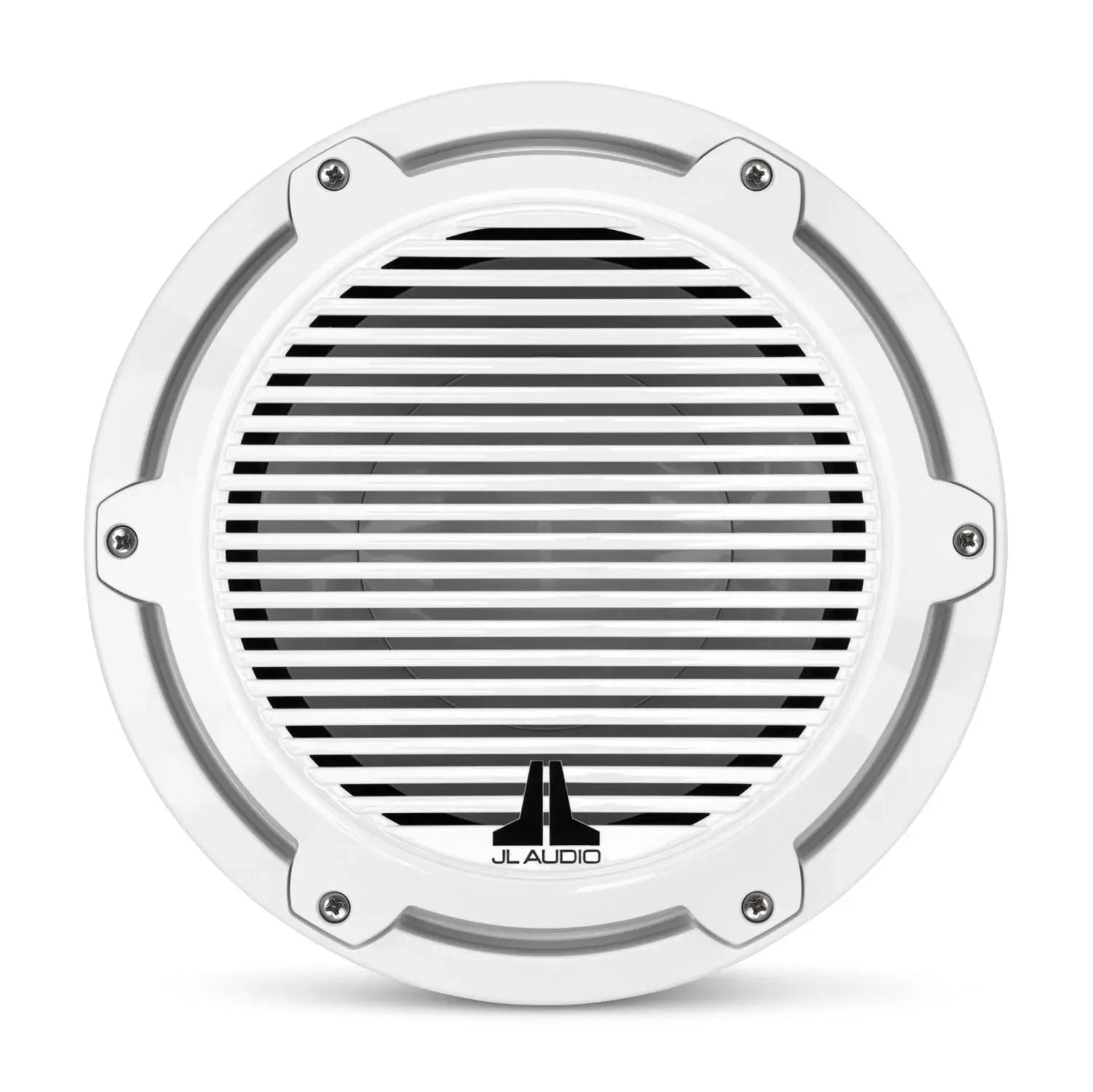

Durability and Style: White Classic Grille Finish

Beyond performance, the JL Audio M6 10in features a stylish White Classic Grille that complements various car interiors. This grille is specially designed to protect the subwoofer cone from damage without sacrificing airflow or sound clarity. The grille’s classic white finish adds an elegant visual appeal, ensuring your upgraded audio system looks as good as it sounds. JL Audio's commitment to both function and form is clear in this product, blending durability with a sophisticated design that fits seamlessly in any vehicle setup.
