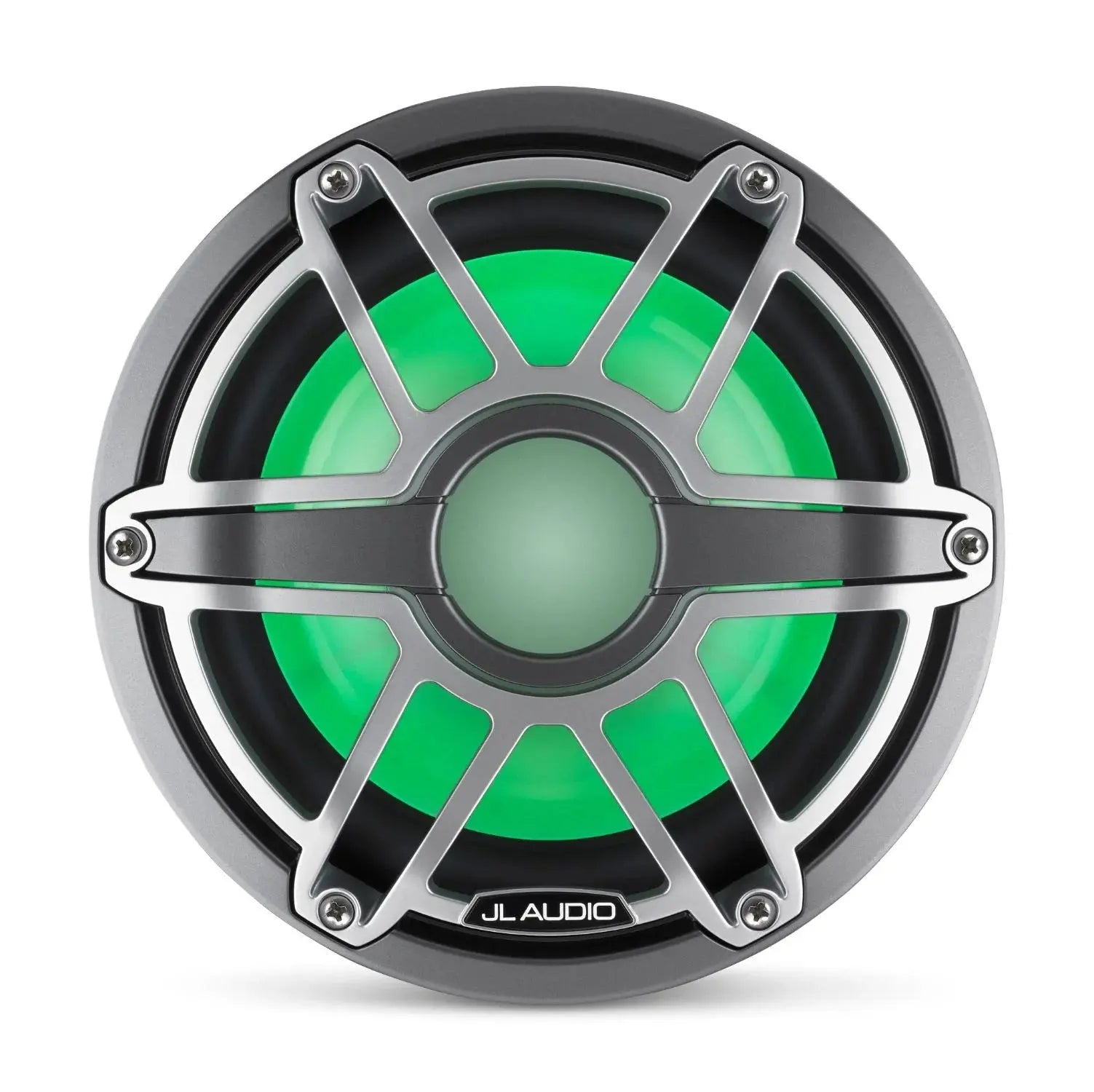

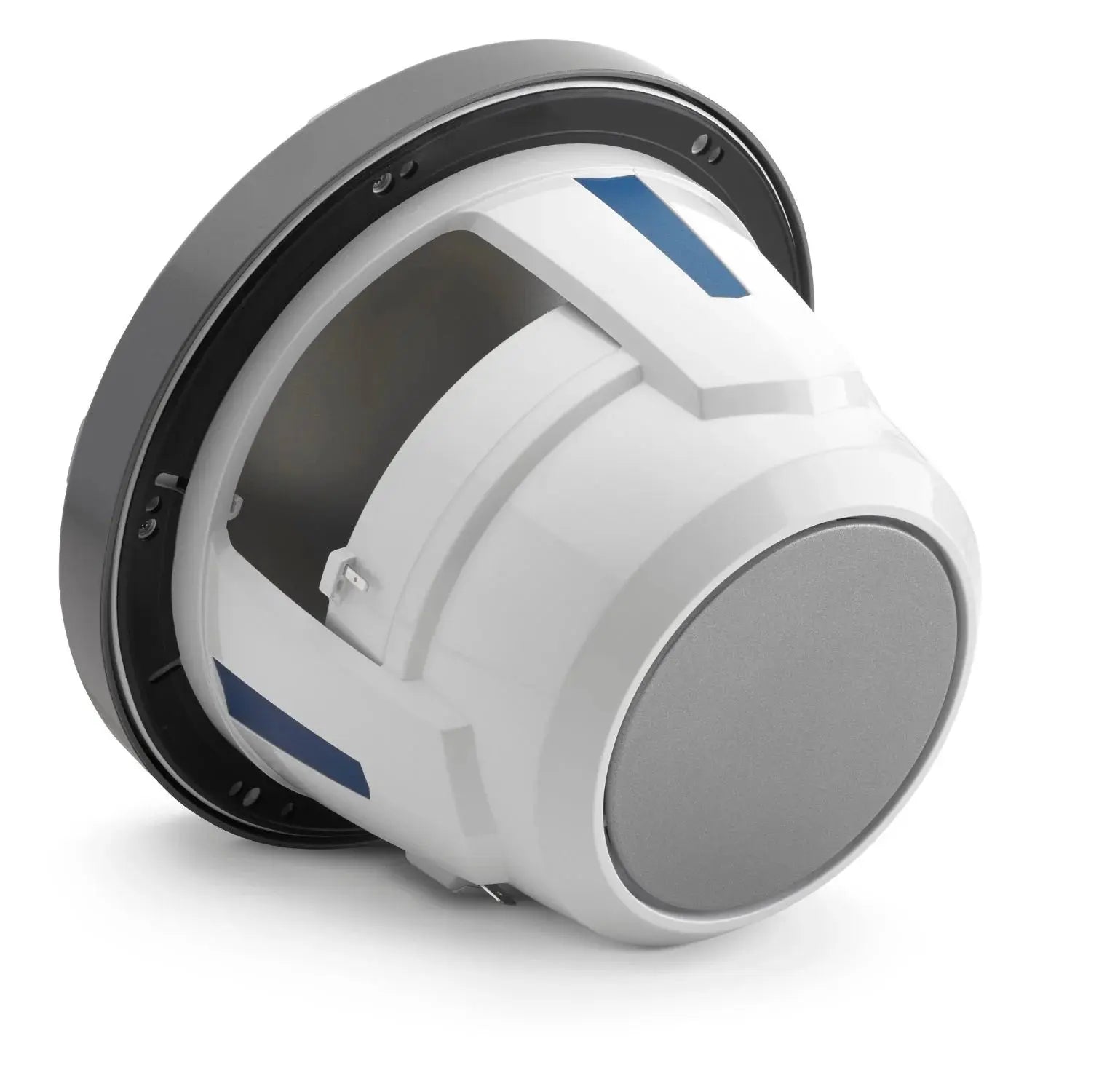

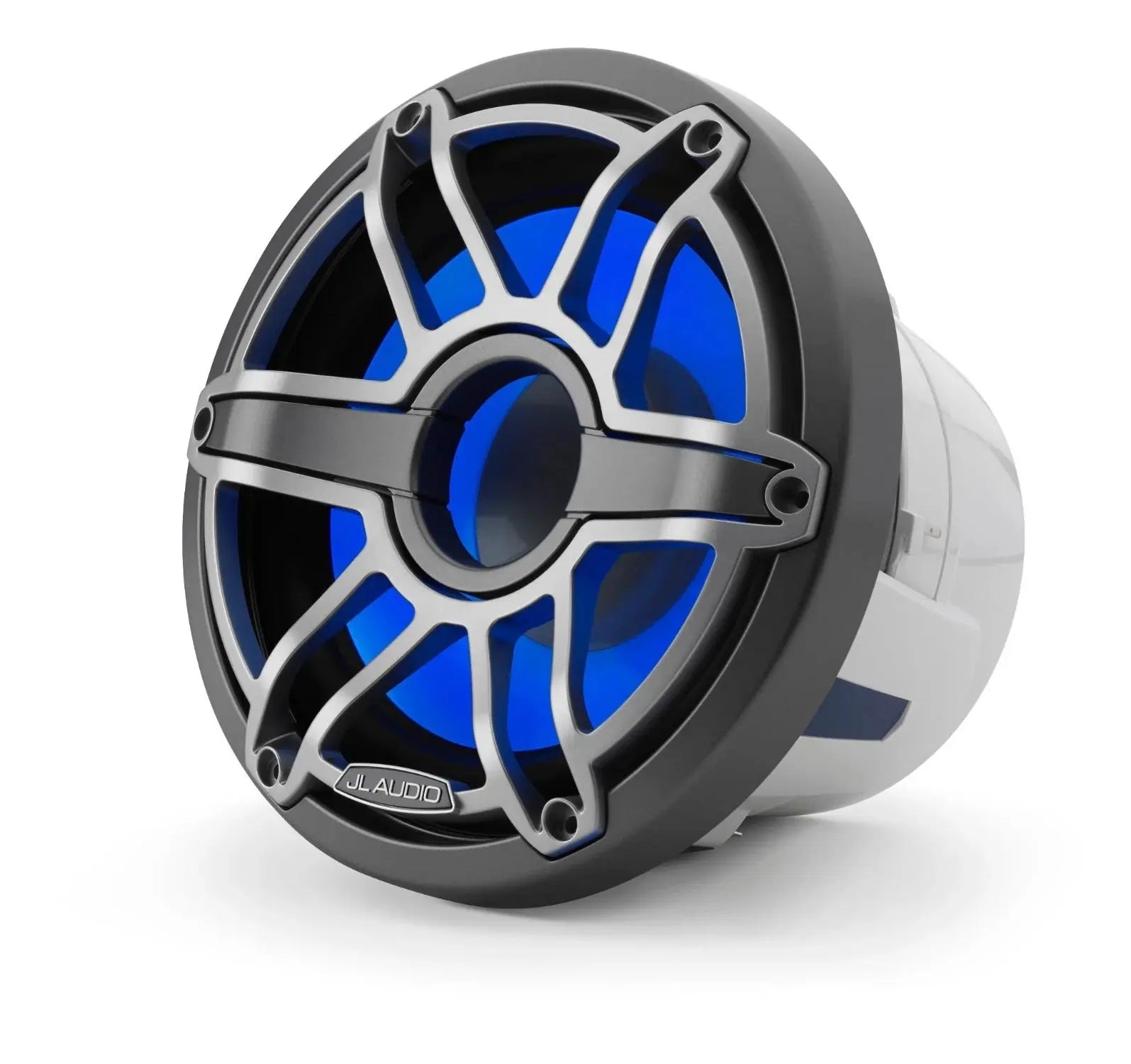

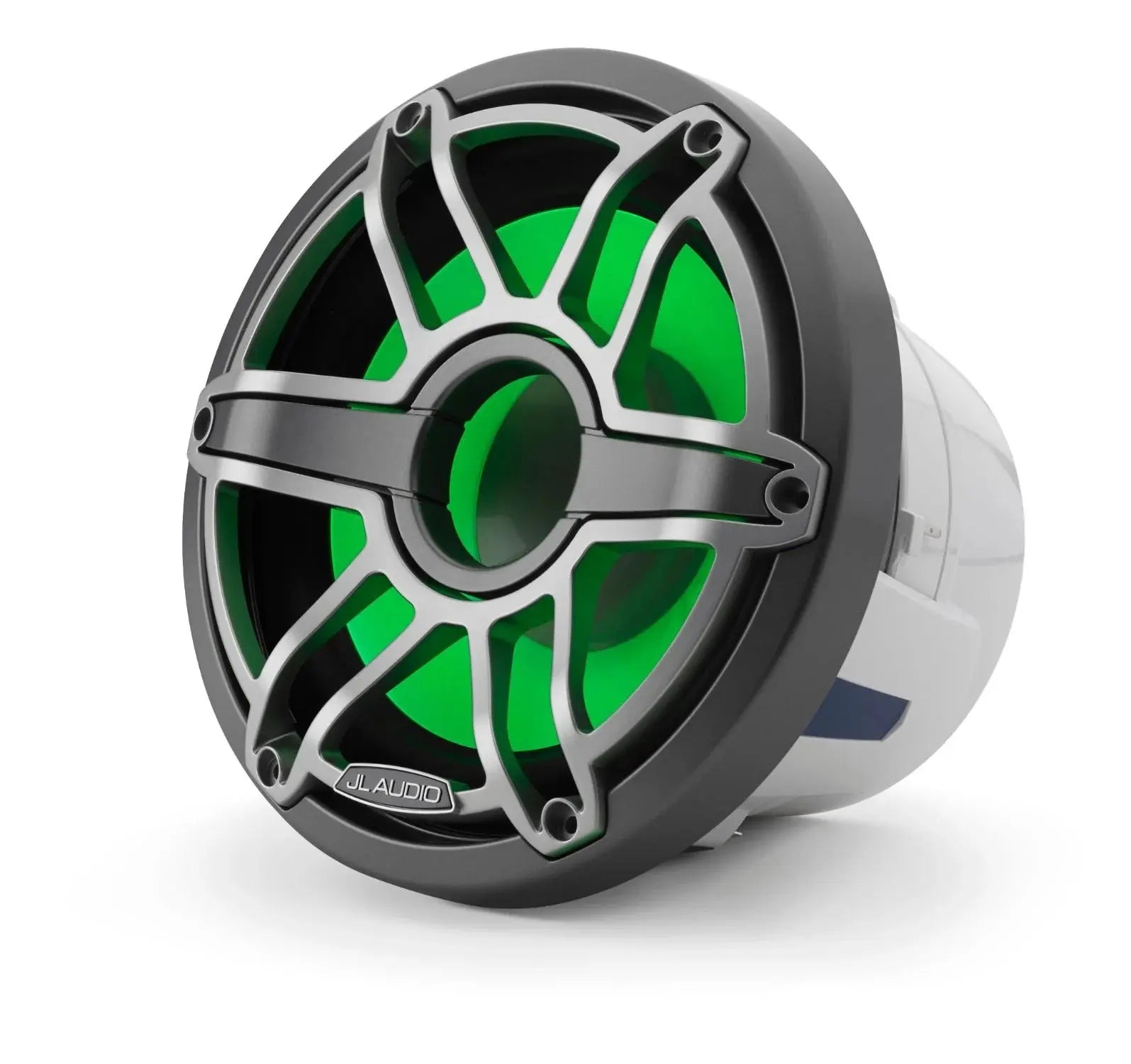

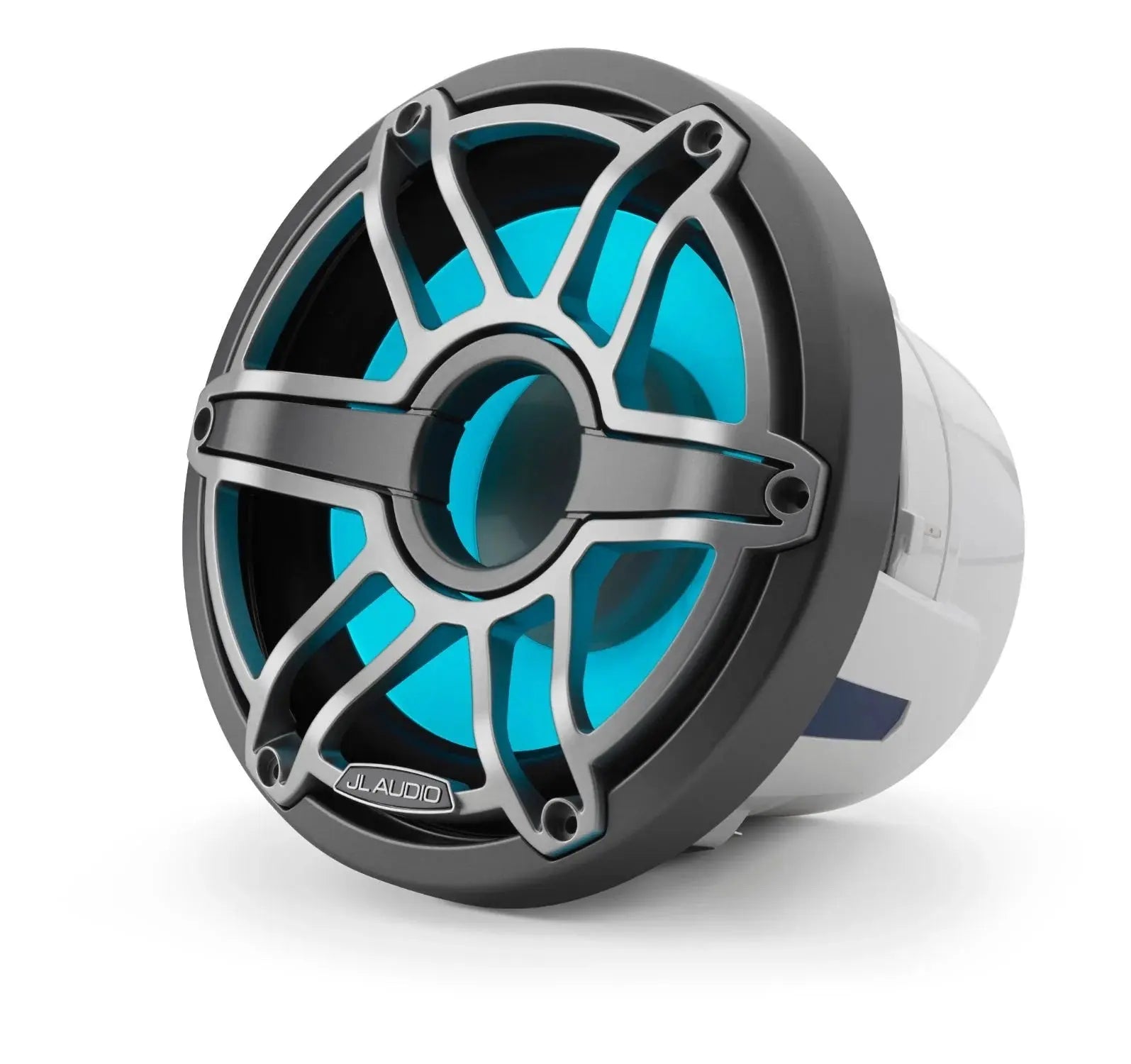

JL Audio M6 8in Subwoofer with Titanium Sport Grille Infinite Baffle, RGB LED

Discover the Power and Style of JL Audio M6 8in Subwoofer

JL Audio M6 8in Subwoofer with Titanium Sport Grille Infinite Baffle, RGB LED

93620

Model: M6-8IB-S-GmTi-i-4

M6 8-inch Marine Subwoofer with Transflective LED Lighting for Infinite-Baffle Use (200 W, 4 ohms) - Gray Metallic Trim Ring, Titanium Sport Grille

With appropriate system setup, the addition of a subwoofer allows your smaller main speakers to be free of the burden of reproducing low frequencies. This allows your whole system to play louder and to sound cleaner at all listening levels.

Purpose-engineered and built for real marine duty, the M6 infinite-baffle woofers are designed to operate without a dedicated enclosure. Long excursion capability and rugged suspension systems help produce deep, powerful bass response that will transform your boat's audio system. This model also features the added visual impact of JL Audio’s Transflective RGB LED lighting, a patent-pending technology that emits a smooth lighting effect through the woofer cone, with a choice of several lighting colors. Add an optional RGB controller to create thousands of color variations. Professional installation is strongly recommended.

The M6-8IB is best used with amplifier power in the 50W - 200W range and is optimized to operate with a large volume of air behind it (at least 1.5 cu. ft. / 42.5 l). If you prefer to use a dedicated enclosure, refer to one of the suggested designs located in the Specifications section for optimum performance.

Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.

Production of all M6 loudspeakers takes place in JL Audio’s Miramar, Florida factory, using global components and materials.

Sold individually.

USA Limited Warranty: Two (2) years from the original date of purchase.

Specifications

General Specifications

Continuous Power Handling (RMS)
200 W

Nominal Impedance (Znom)
4 ohms

Physical Specifications

Nominal Diameter
8.0 in / 200 mm

Overall Diameter
8.80 in / 224 mm

Bolt Hole Circle Diameter
7.97 in / 202 mm

Frontal Grille Protrusion
1.45 in / 37 mm

Mounting Hole Diameter
7.375 in / 187 mm

Mounting Depth
5.00 in / 127 mm

Driver Displacement
0.033 cu ft / 0.93 L

Net Weight
8.70 lb / 3.90 kg

Parameters

Free Air Resonance (Fs)
54.92 Hz

Electrical "Q" (Qes)
0.852

Mechanical "Q" (Qms)
10.314

Total Speaker "Q" (Qts)
0.787

Equivalent Compliance (Vas)
0.54 cu ft / 15.29 L

One-Way Linear Excursion (Xmax)*
0.53 in / 14 mm

Reference Efficiency (no)
0.28%

Efficiency (1 W / 1 m)**
86.7 dB SPL

Effective Piston Area (Sd)
35.15 sq in / 0.0227 sq m

DC Resistance (Re)
2.993 ohms

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is "louder".
Sealed Enclosure Specifications

Wall Thickness
0.75 in / 19 mm

Front Baffle Thickness
0.75 in / 19 mm

Volume (net int.)
2.00 cu ft / 56.6 L

External Width
16 in / 406 mm

External Height
16 in / 406 mm

External Depth
18.25 in / 464 mm

F3
51.78 Hz

Fc
61.89 Hz

Qtc
0.8869

Ported Enclosure Specifications

Wall Thickness
0.75 in / 19 mm

Front Baffle Thickness
0.75 in / 19 mm

Volume (net int.)
1.50 cu ft / 42.5 L

External Width
16 in / 406 mm

External Height
16 in / 406 mm

External Depth
15.125 in / 384 mm

Internal Port Diameter
4 in / 102 mm

Port Length
13.50 in / 343 mm

13.50 in / 343 mm
37 Hz

F3
31.26 Hz

Unmatched Audio Performance by JL Audio

The JL Audio M6 8in subwoofer delivers exceptional sound quality for audiophiles seeking deep, accurate bass. Designed with cutting-edge technology, this subwoofer provides impressive output and clarity, perfect for enhancing any audio system. Its advanced motor structure and a lightweight, high-excursion cone ensure both power and precision. Whether you're upgrading your car audio or a custom home theater, the JL Audio brand guarantees durability and superior performance, making it a reliable choice for long-term enjoyment.

Durable Titanium Sport Grille for Protection and Style

The subwoofer comes equipped with a titanium sport grille that offers robust protection without compromising aesthetic appeal. This grille not only guards the delicate cone against damage from debris or impacts but also adds a sleek, modern look to your setup. Its sporty design complements various environments while ensuring the subwoofer can handle rough use, making it ideal for both everyday driving and high-performance audio installations.

Innovative Infinite Baffle Design with RGB LED Lighting

The infinite baffle design of this JL Audio subwoofer is engineered to maximize low-frequency output by mounting it in a sealed environment, enhancing bass response without sacrificing sound clarity. Additionally, the integrated RGB LED lighting adds a dynamic visual element that can be customized to match your mood or vehicle interior. This unique lighting feature not only elevates the aesthetic but also reflects JL Audio’s commitment to combining function with style in their products.
