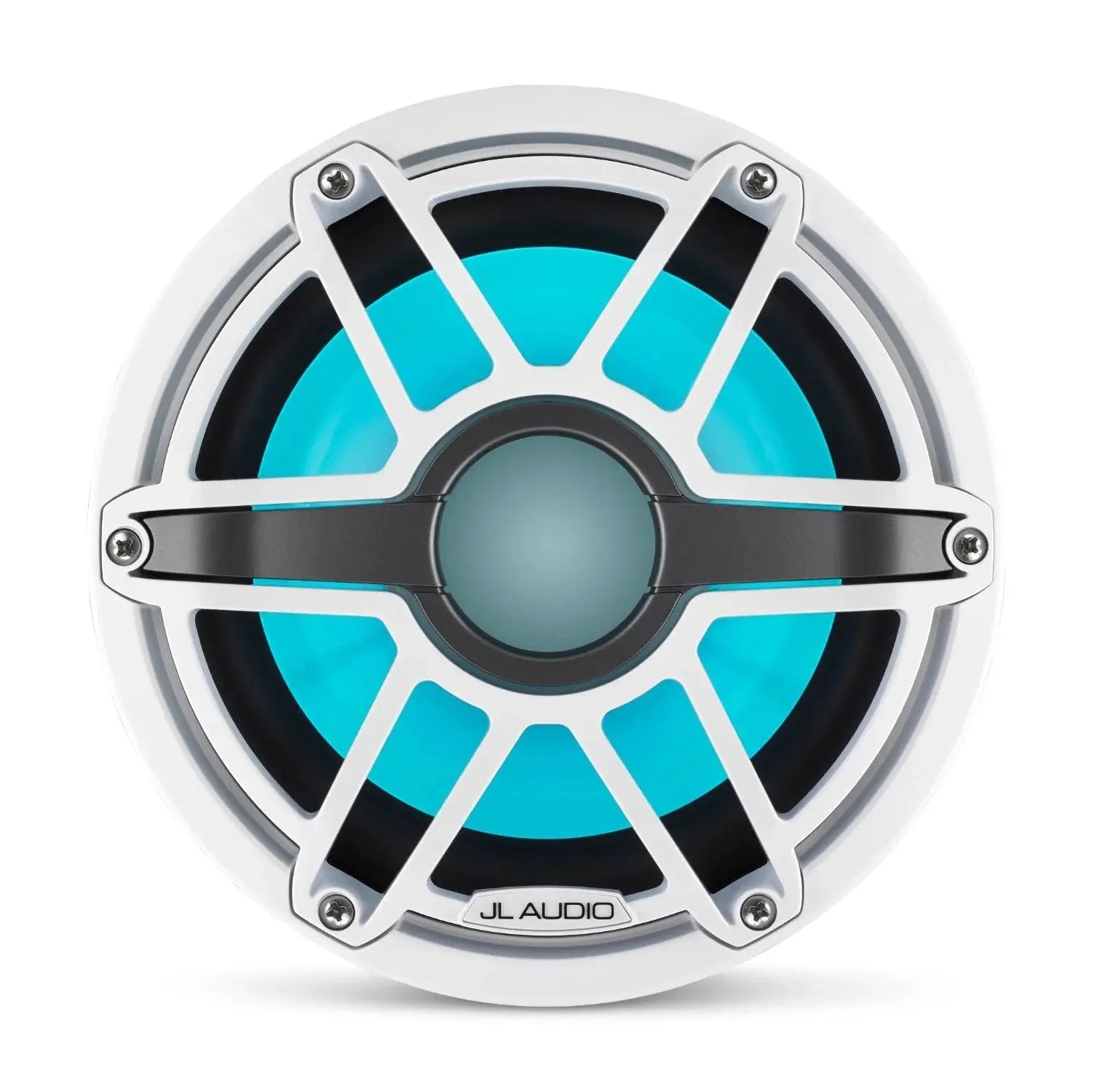

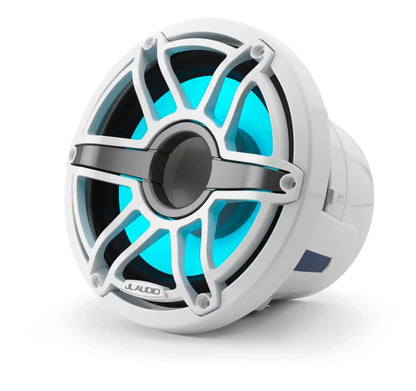

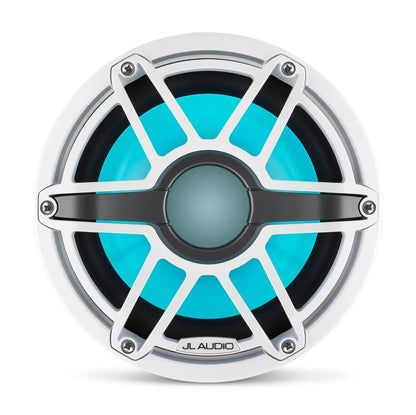

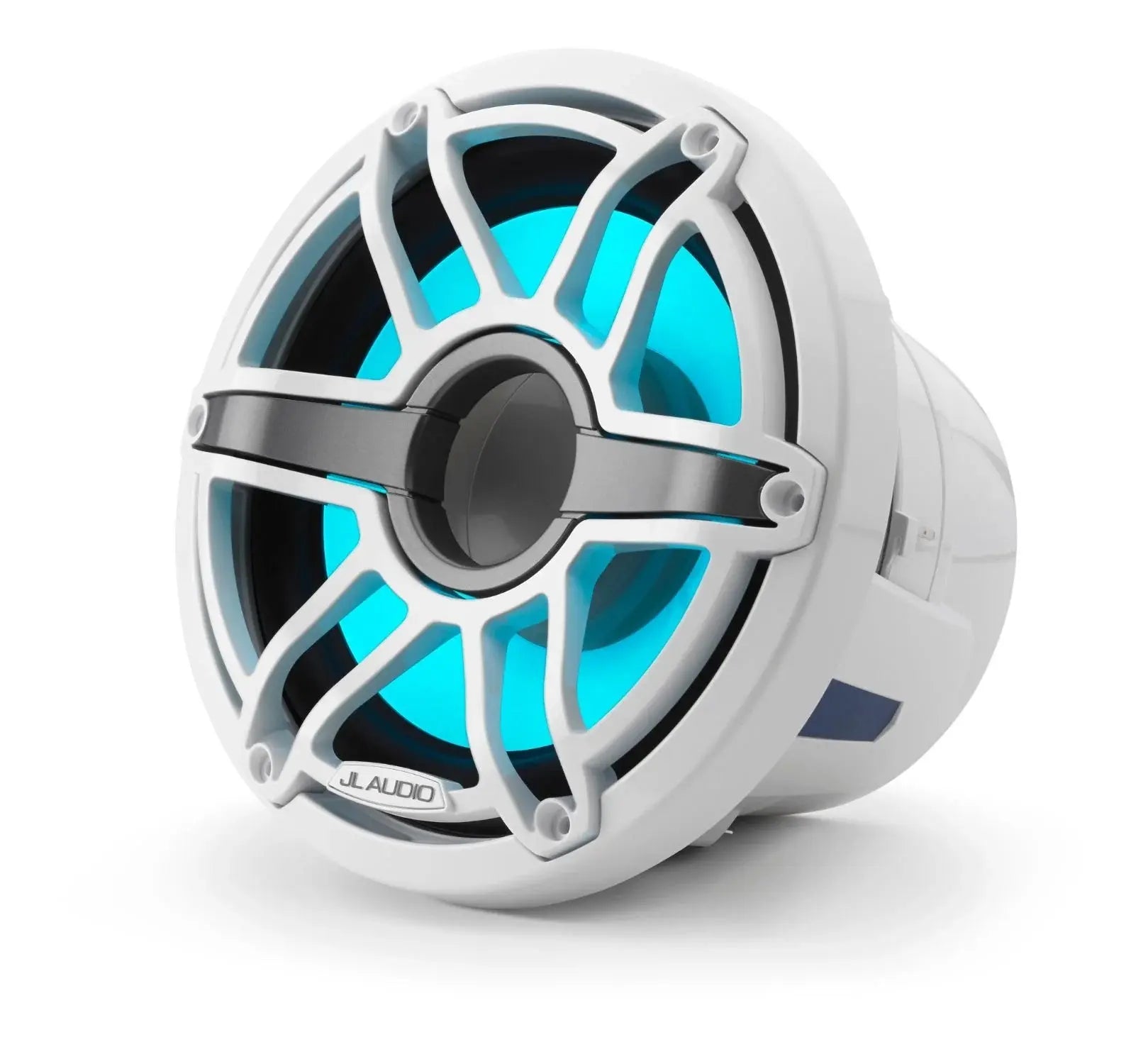

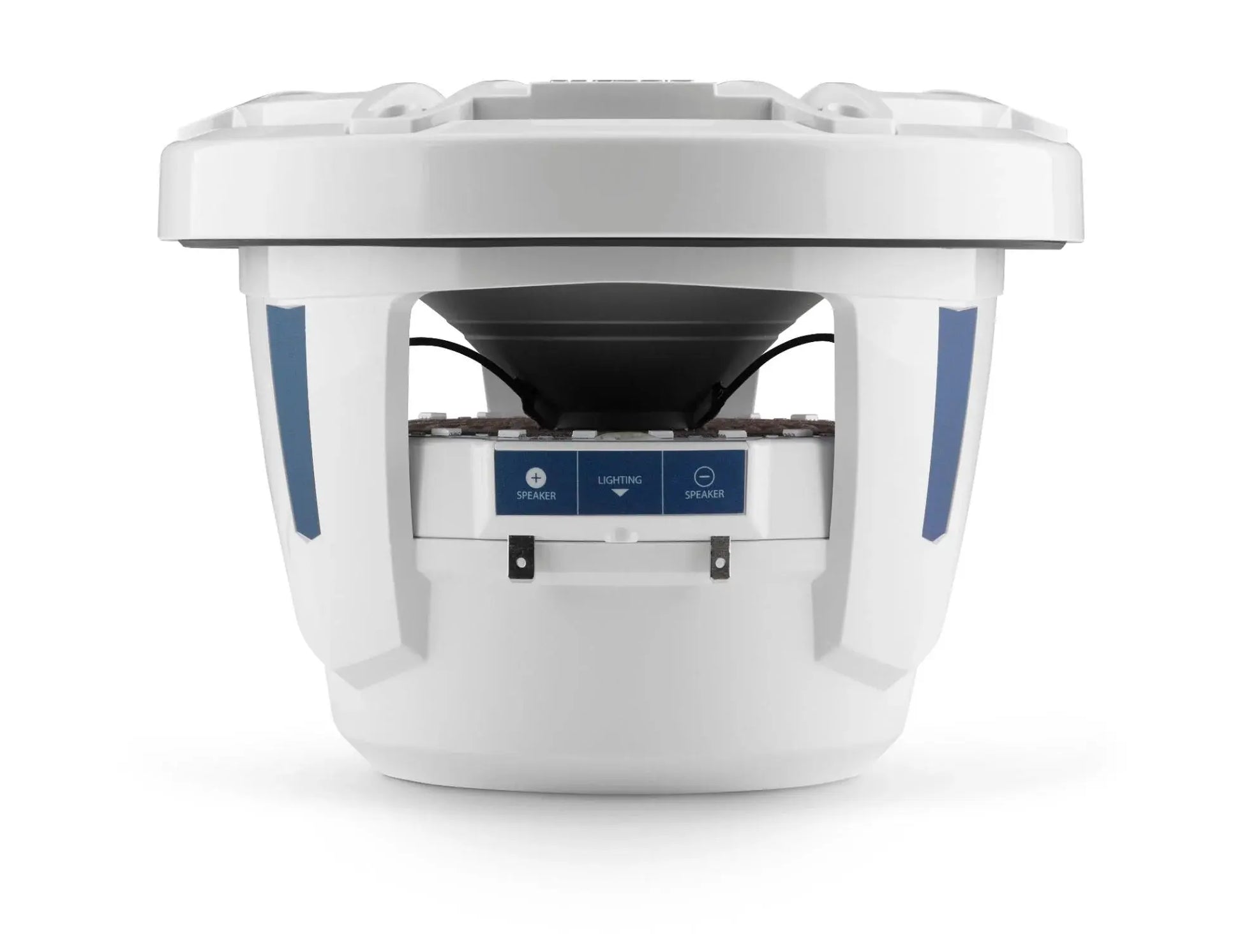

JL Audio M6 8in Subwoofer with White Sport Grille Infinite Baffle, RGB LED

Explore the Superior Performance of JL Audio M6 8in Subwoofer

JL Audio M6 8in Subwoofer with White Sport Grille Infinite Baffle, RGB LED

93618

Model: M6-8IB-S-GwGw-i-4

M6 8-inch Marine Subwoofer with Transflective LED Lighting for Infinite-Baffle Use (200 W, 4 ohms) - Gloss White Trim Ring, Gloss White Sport Grille.

With appropriate system setup, the addition of a subwoofer allows your smaller main speakers to be free of the burden of reproducing low frequencies. This allows your whole system to play louder and to sound cleaner at all listening levels.

Purpose-engineered and built for real marine duty, the M6 infinite-baffle woofers are designed to operate without a dedicated enclosure. Long excursion capability and rugged suspension systems help produce deep, powerful bass response that will transform your boat's audio system. This model also features the added visual impact of JL Audio’s Transflective RGB LED lighting, a patent-pending technology that emits a smooth lighting effect through the woofer cone, with a choice of several lighting colors. Add an optional RGB controller to create thousands of color variations. Professional installation is strongly recommended.

The M6-8IB is best used with amplifier power in the 50W - 200W range and is optimized to operate with a large volume of air behind it (at least 1.5 cu. ft. / 42.5 l). If you prefer to use a dedicated enclosure, refer to one of the suggested designs located in the Specifications section for optimum performance.

Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.

Production of all M6 loudspeakers takes place in JL Audio’s Miramar, Florida factory, using global components and materials.

Sold individually.

USA Limited Warranty: Two (2) years from the original date of purchase

Specifications

General Specifications

Continuous Power Handling (RMS)
200 W

Nominal Impedance (Znom)
4 ohms

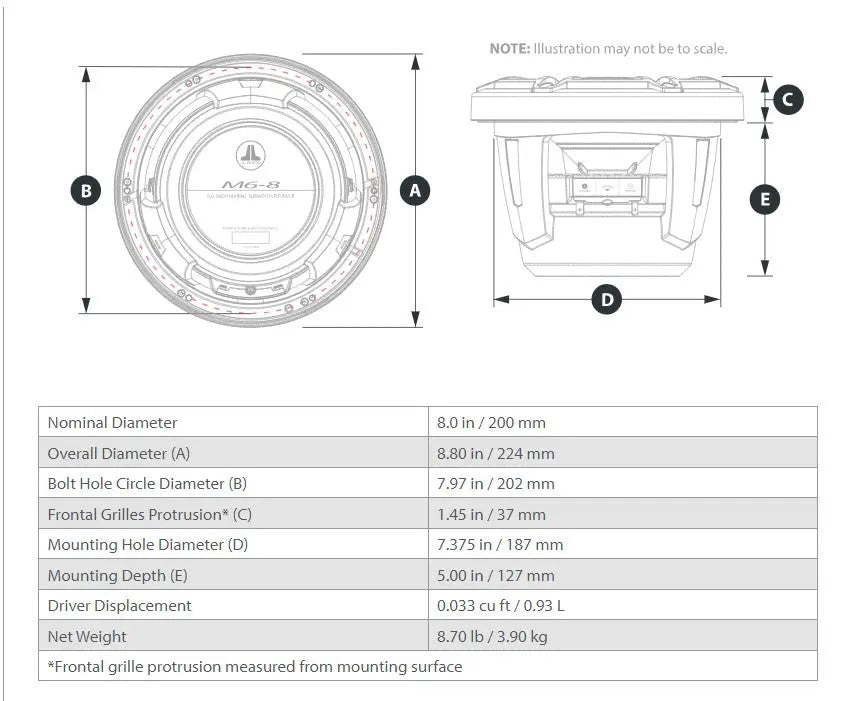

Physical Specifications

Nominal Diameter
8.0 in / 200 mm

Overall Diameter
8.80 in / 224 mm

Bolt Hole Circle Diameter
7.97 in / 202 mm

Frontal Grille Protrusion
1.45 in / 37 mm

Mounting Hole Diameter
7.375 in / 187 mm

Mounting Depth
5.00 in / 127 mm

Driver Displacement
0.033 cu ft / 0.93 L

Net Weight
8.70 lb / 3.90 kg

Parameters

Free Air Resonance (Fs)
54.92 Hz

Electrical "Q" (Qes)
0.852

Mechanical "Q" (Qms)
10.314

Total Speaker "Q" (Qts)
0.787

Equivalent Compliance (Vas)
0.54 cu ft / 15.29 L

One-Way Linear Excursion (Xmax)*
0.53 in / 14 mm

Reference Efficiency (no)
0.28%

Efficiency (1 W / 1 m)**
86.7 dB SPL

Effective Piston Area (Sd)
35.15 sq in / 0.0227 sq m

DC Resistance (Re)
2.993 ohms

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is "louder".
Sealed Enclosure Specifications

Wall Thickness
0.75 in / 19 mm

Front Baffle Thickness
0.75 in / 19 mm

Volume (net int.)
2.00 cu ft / 56.6 L

External Width
16 in / 406 mm

External Height
16 in / 406 mm

External Depth
18.25 in / 464 mm

F3
51.78 Hz

Fc
61.89 Hz

Qtc
0.8869

Ported Enclosure Specifications

Wall Thickness
0.75 in / 19 mm

Front Baffle Thickness
0.75 in / 19 mm

Volume (net int.)
1.50 cu ft / 42.5 L

External Width
16 in / 406 mm

External Height
16 in / 406 mm

External Depth
15.125 in / 384 mm

Internal Port Diameter
4 in / 102 mm

Port Length
13.50 in / 343 mm

Tuning Frequency (Fb)
37 Hz

F3
31.26 Hz

Unmatched Sound Quality from JL Audio

The JL Audio M6 8in subwoofer delivers exceptional sound quality, making it a top choice for audio enthusiasts seeking deep, powerful bass. Built with premium materials, this subwoofer combines durability and performance in a sleek design. The infinite baffle mounting technique ensures minimal enclosure resonance, allowing for clean, distortion-free audio. Whether installed in a car or marine environment, the JL Audio subwoofer maintains clarity and punch, enhancing any music experience with precise bass reproduction.

Innovative White Sport Grille Design

The subwoofer includes a stylish white sport grille that not only protects the cone but also adds a modern aesthetic to your audio setup. Designed for active lifestyles, the grille is durable and resistant to impact, making it ideal for various environments. Its clean white finish complements the RGB LED lighting and fits seamlessly into both traditional and contemporary interiors. This combination of protection and style emphasizes the high-quality craftsmanship JL Audio is known for.

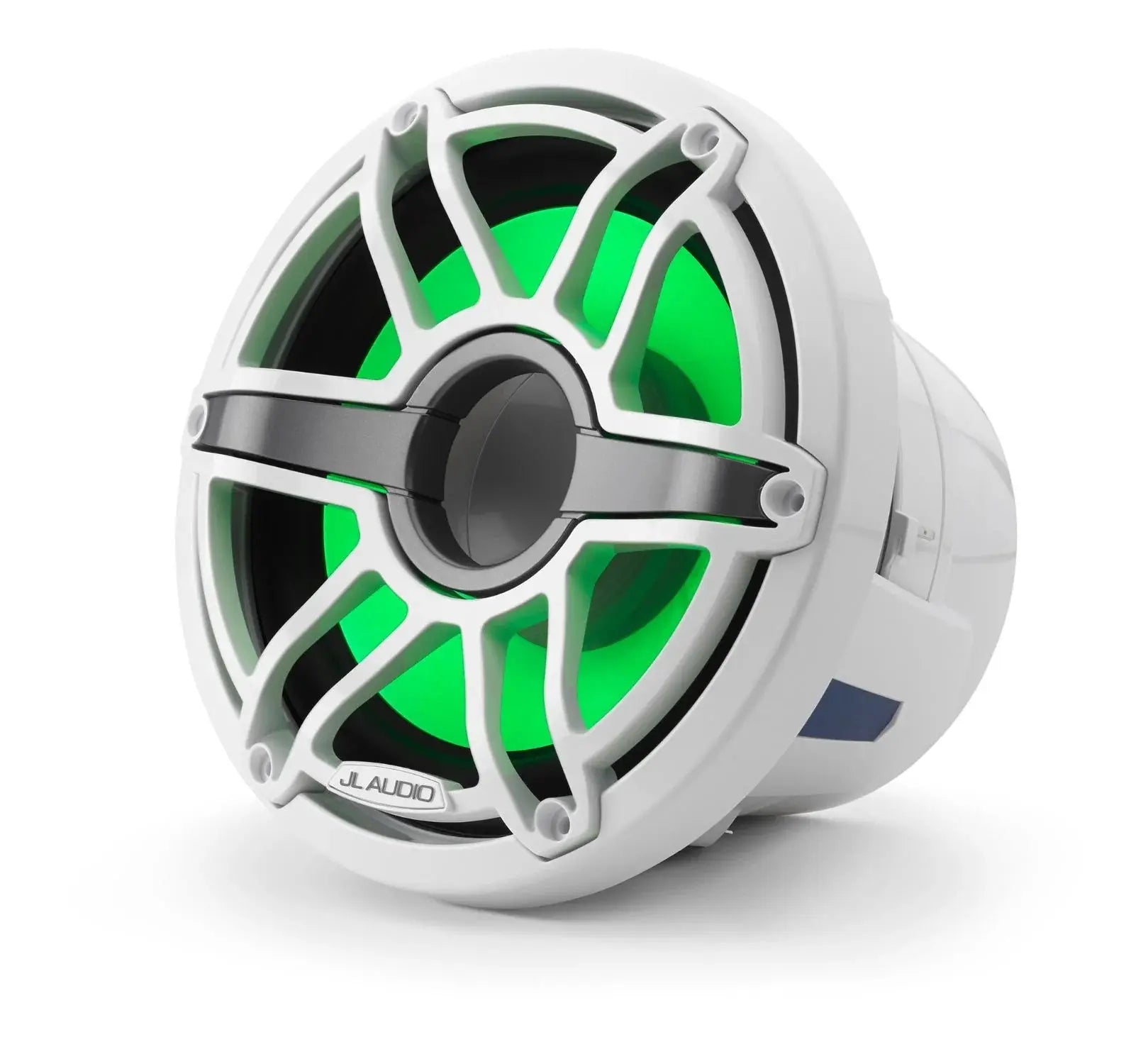

Customizable RGB LED Lighting for Visual Appeal

A standout feature of the JL Audio M6 8in subwoofer is its integrated RGB LED lighting. This innovative addition allows users to personalize their subwoofer’s look with multiple color options and lighting modes. The customizable lights enhance the visual experience, making the subwoofer not only a sound powerhouse but also a vibrant centerpiece. Easy to control, the RGB LEDs create an immersive atmosphere that perfectly matches your mood or music style.
