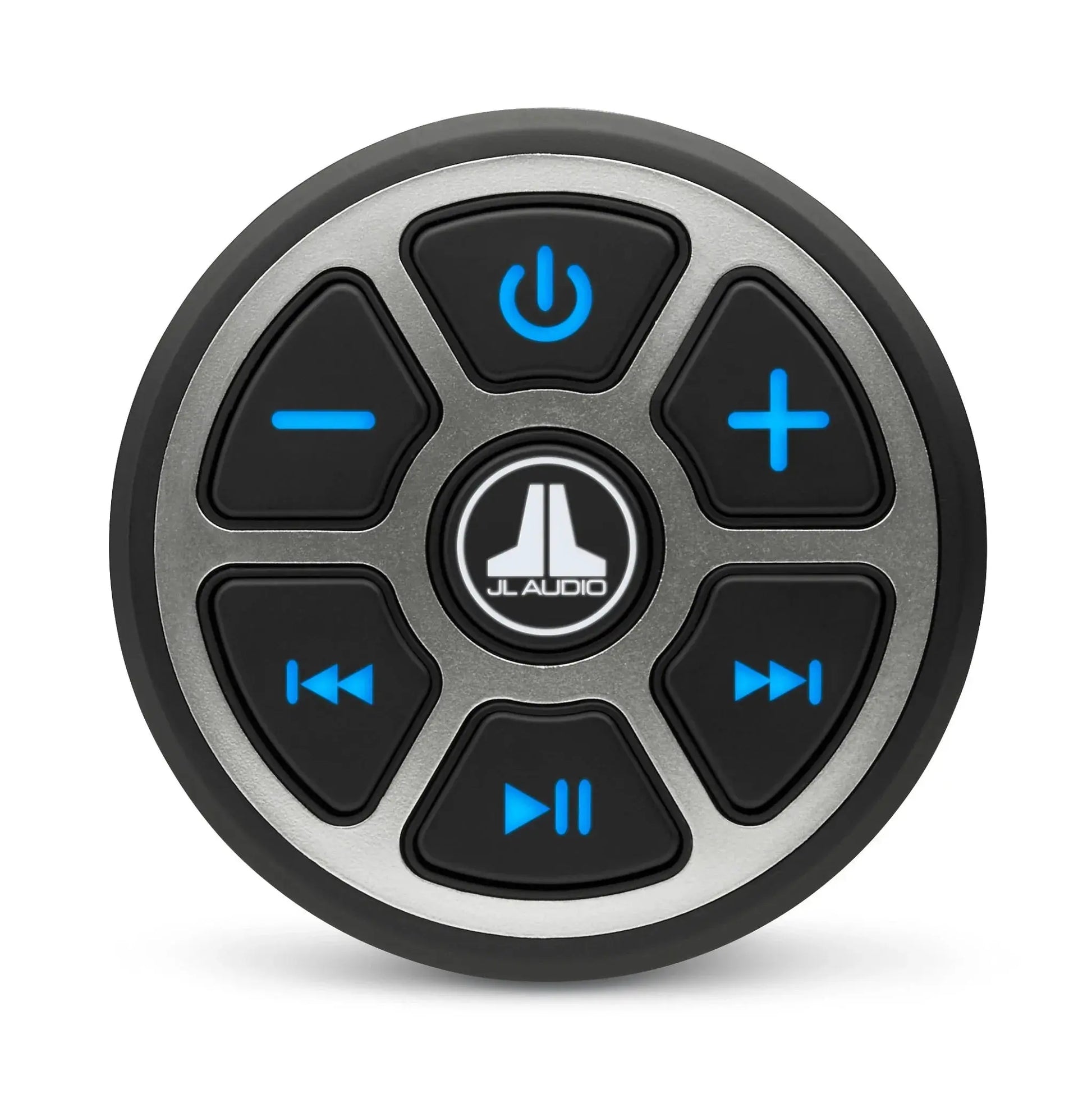

JL Audio MBT-CRXv3 Bluetooth Controller and Receiver MBT-CRXv3 91905

Discover the JL Audio MBT-CRXv3 Bluetooth Controller and Receiver

JL Audio MBT-CRXv3 Bluetooth Controller and Receiver MBT-CRXv3 91905

Jl Audio MBT-CRXv3 Water-resistant Audio Controller and Receiver with Bluetooth® Wireless Technology

Model: MBT-CRXv3

Engineered for marine, motorsports and outdoor applications, the MBT-CRXv3 wireless receiver is designed to deliver top-quality streaming audio to almost any sound system over land or water.

Housed in a compact and water-resistant chassis (IP67-rated), this premium audio receiver is well suited for small watercraft, motorcycles, golf carts and utility vehicles. Needing just a single hole for installation, the MBT-CRXv3 wireless receiver can function as a stand-alone, wireless audio source unit or as an add-on, wireless audio controller and receiver. Large backlit controls permit easy operation day or night, and an adaptor plate is included for front-mount applications or where rear access is limited.

Outfitted with BLUETOOTH wireless technology and the Qualcomm® aptX HD audio codec, MBT-CRXv3 delivers dynamic, CD-like sound from your compatible streaming device from up to 35’ (11 meters) away. Two sets of stereo preamp outputs (4-volt RMS) are on hand to feed two main audio zones plus a dedicated subwoofer output. Independent audio zone level controls with LED color indicators ensure effortless command of your sound system while your streaming device is tucked away.

The receiver includes +12-volt (1 amp) remote turn-on output for amplifier control.

Specifications

General Specifications

Bluetooth® Core Specification
Version 5.0 with Qualcomm® aptX-HD audio

Current Draw
83 mA (at idle) / 108 mA (at full output)

Input Operating Voltage
8 - 16 VDC

Fuse Rating
2A Mini ATC

Output Voltage
4V RMS

Frequency Response
20 Hz - 20 kHz (±1dB)

Connection Range*
Up to 35 ft / 11 m

S/N Ratio
101 dB (20 Hz - 20 kHz)

Remote Turn-on Output Capacity
350 mA (max)

Bluetooth® Profile
A2DP (High-Quality, Stereo Audio)

Outputs
Two Stereo Pairs Per Zone, Plus One Mono Subwoofer (RCA Plugs)

*Maximum range is achieved in line-of-sight installations. Actual range will vary based on installation specifics.
Physical Specifications

Diameter
2.15 in / 55 mm

Mounting Depth (A)
2.36 in / 60 mm

Mounting Hole Diameter
1.125 in / 29 mm (minimum diameter for mounting with rear of panel access)
1.875 in / 48 mm (maximum for front mounting with plate)

What's in the Box:

• MBT-CRXv3 Controller
• Locking collar
• 2.3mm spacer
• 1.27mm spacer
• Square bezel
• Square Gasket
• M4 x 16mm screw x 4

Advanced Wireless Connectivity with JL Audio

The JL Audio MBT-CRXv3 Bluetooth Controller and Receiver seamlessly integrates wireless audio streaming into your system. Designed for superior Bluetooth connectivity, this receiver supports high-quality audio codecs ensuring crystal clear sound whether you’re driving or relaxing at home. JL Audio engineers have optimized the MBT-CRXv3 to deliver consistent and reliable wireless performance, making it an essential addition for anyone seeking effortless streaming without compromising sound fidelity. Its broad compatibility with various devices means you can easily connect smartphones, tablets, and other Bluetooth-enabled devices with minimal setup.

Precision Control and User-Friendly Interface

Equipped with intuitive control options, the MBT-CRXv3 from JL Audio offers convenient volume adjustment and track navigation right at your fingertips. The receiver includes a wired remote control capability, allowing users to integrate buttons for seamless operation without having to access the connected device directly. This feature enhances usability while maintaining clean installation aesthetics, which is particularly valuable in automotive or custom audio environments. The smart design ensures that controlling your audio experience remains simple, efficient, and distraction-free.

Robust Build Quality and Versatile Compatibility

JL Audio is renowned for its commitment to durability and performance, and the MBT-CRXv3 Bluetooth Controller and Receiver is no exception. Built with high-quality components, this unit withstands demanding conditions and harsh environments, making it ideal for installation in cars, boats, or home theaters. Its versatile compatibility with both analog and digital audio systems ensures flexible integration options. Whether upgrading an existing system or building a new one from scratch, the MBT-CRXv3 offers a reliable solution that elevates your audio experience with clear sound and stable wireless connection.
