JL Audio MediaMaster 105 Weatherproof Source unit

JL Audio MediaMaster 105 Weatherproof Source unit

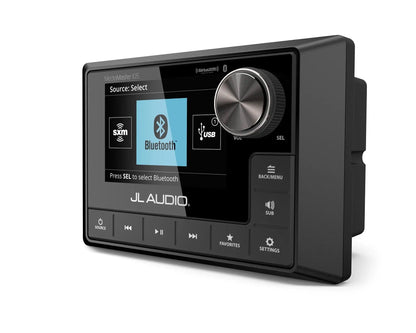

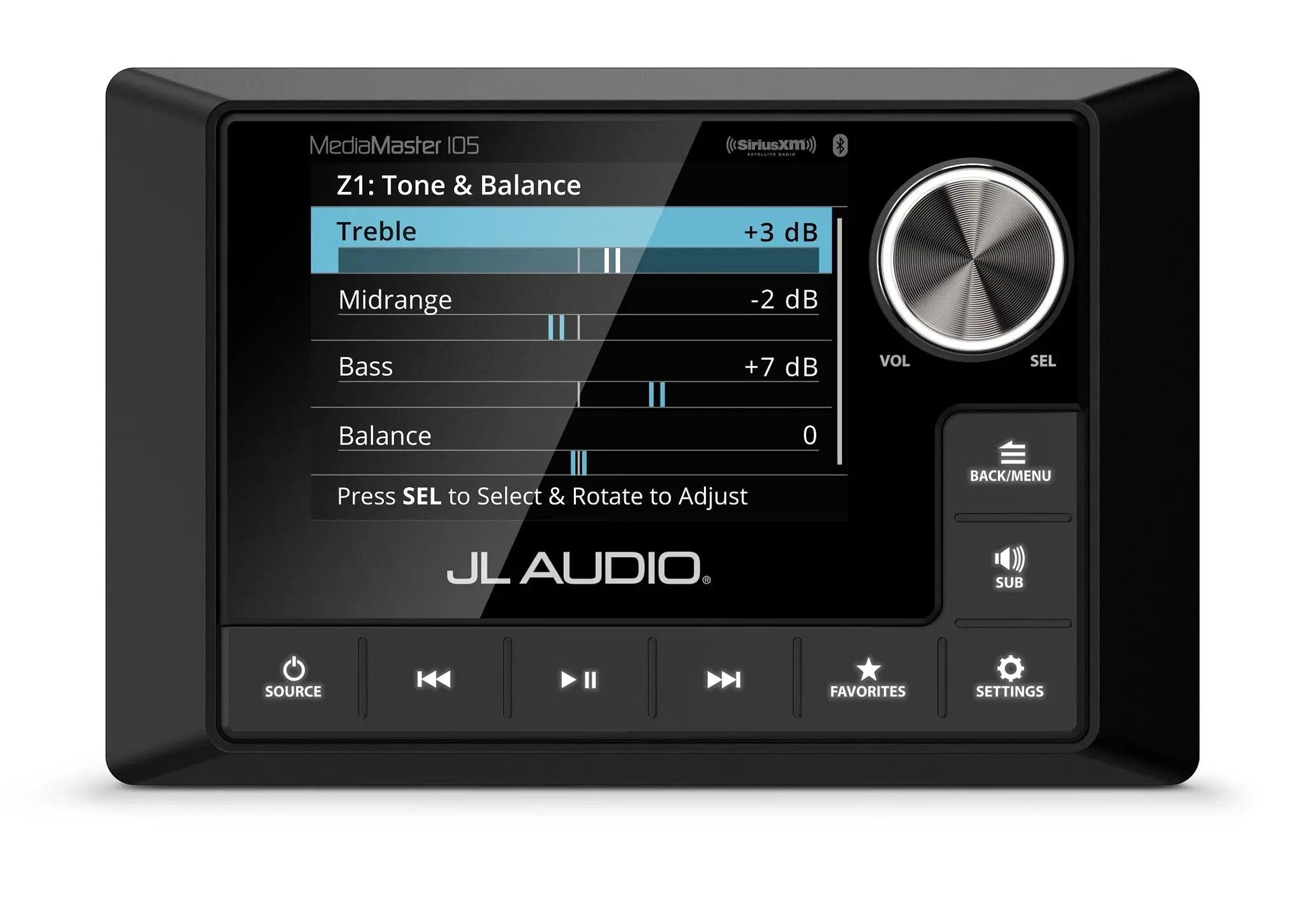

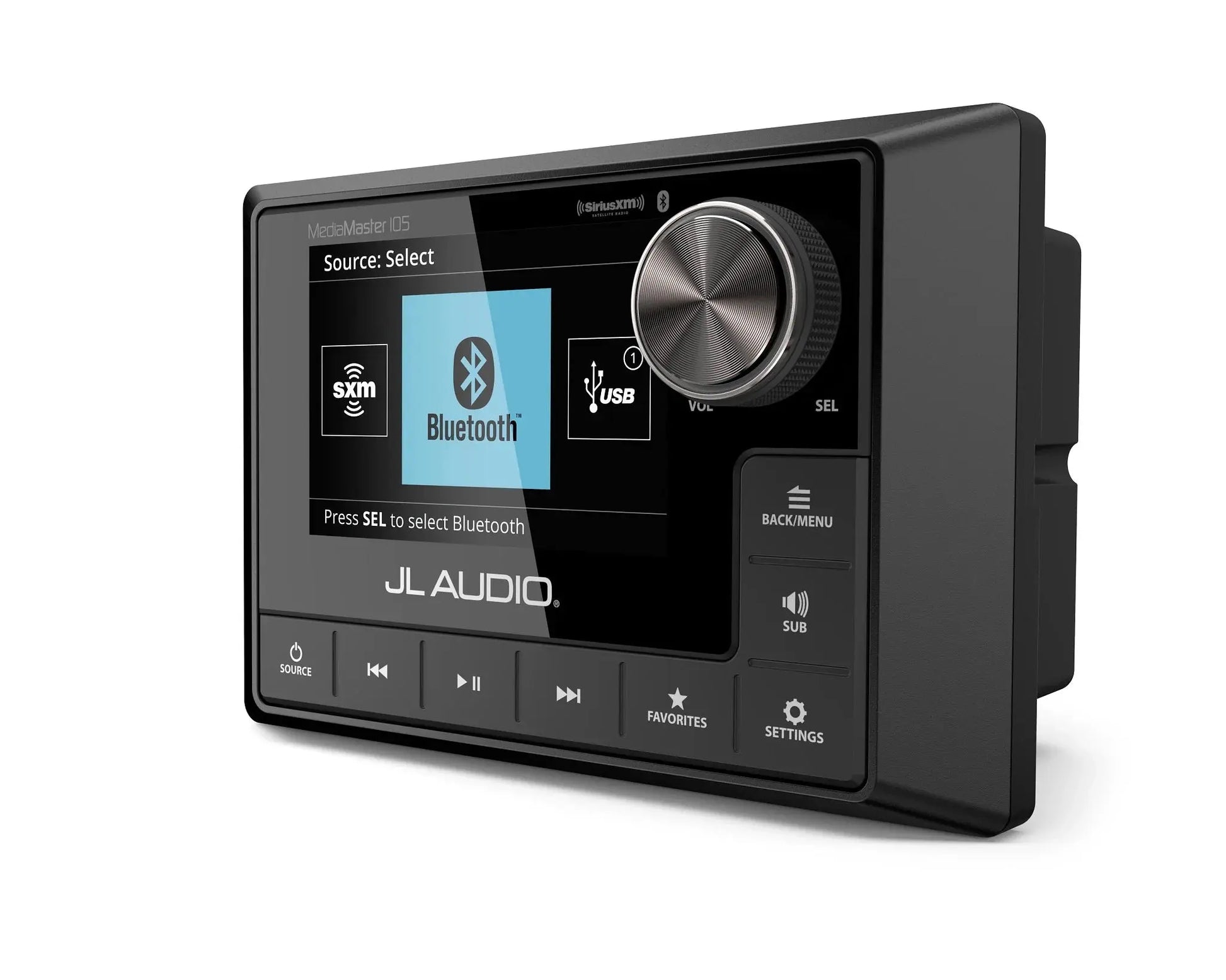

JL Audio MM105 Weatherproof Source Unit with Full-Color LCD Display

Model: MM105

• Tough, weatherproof (IP67 rated) design and construction to withstand the elements


• Ultra-bright, easy-to-read, 3.5-inch (89 mm) full-color LCD display with individual settings for day/night lighting and display themes


• Oversized, illuminated control knob with large backlit buttons sealed behind a watertight membrane


• Intuitive interface with large text for easy legibility while in motion


• Independent user settings for display brightness, button brightness and remote controller brightness (optional)


• 12-channels of audiophile quality, 4V RMS preamp level outputs


• Available Digital HD Radio (North America) and DAB+ Radio (Europe) tuners for the best in broadcast sound quality and selection


• Global AM/FM radio tuner with RDS (Radio Data System), to display extended FM program info, where available


• SiriusXM-Ready (tuner, antenna and subscription sold separately)


• 24 Favorites: store up to 24 of your favorite channels for quick access, across all tuner bands, including Sirius/XM


• Bluetooth® audio streaming with Qualcomm® aptX for maximum audio fidelity with compatible devices


• USB1 and USB2 direct-digital connections access music files on your compatible iPhone® or USB storage device; includes 1A and 500mA charging outputs


• AUX1 and AUX2 inputs accepts analog audio signals from a variety of audio sources


• Certified NMEA 2000® Connectivity - MFD (Multi-Function Display) vessel control functionality using applicable network cables and connectors (sold separately).


• Weatherproof design (IP67 rated) for real marine duty


• Protective Sun Cover included

Enjoy great audio wherever your adventures might take you, with the MediaMaster® 105, a Premium Source Unit designed to withstand anything Mother Nature can dish out. This full-featured source unit delivers top-flight sound performance and advanced audio features specifically designed for marine and powersports applications. Its rugged, weatherproof (IP67 rated) chassis houses an ultra-bright, 3.5-inch full-color LCD display, with separate Day/Night lighting themes for outstanding visibility, even in bright sunshine. When in motion, you will also appreciate the clean user interface with big text and large backlit controls.

Because sound quality is our top priority, the MM105 is not equipped with an internal amplifier designed to drive loudspeakers directly. Instead, it offers twelve channels of audiophile-quality, preamp level outputs to deliver crystal-clear signals to high-quality marine amplifiers. These are deployed via four configurable, nameable audio zones, each with its own set of independent control options, making the MM105 adaptable to a wide range of system types. On-the-fly, level controls make adjusting each or all audio zones a breeze, while a useful volume limit feature ensures that nobody gets blasted inadvertently. All zones feature our Zero-Clipping audio circuit design, with self-limiting tone controls to keep the audio clean at high listening levels, reducing the likelihood of speaker damage.

With certified NMEA-2000® connectivity, the MM105 is also an ideal partner to your Garmin, Lowrance, Raymarine or Simrad Multifunction Display! (MFD)

Specifications

General Specifications

Input Operating Voltage
10 - 15.9 VDC

Standby Current Draw
120 mA

Operating Current Draw
1.5 A

Recommended Fuse Value
5 A

Remote Turn-on Capacity
500 mA (max)

Operating Temperature Range
-4 F to +158 F (-20 C to +70 C)

Display Size / Type
3.5-inch / TFT LCD backlighted

Display Resolution
320 x 480

Output Channels
One stereo pair and mono subwoofer RCA plugs per zone

Output Zones
Relative, Absolute, Fixed or Off

Maximum Output Voltage
4V RMS (Relative or Absolute), Selectable 4V/2V/1V RMS (Fixed)

Tuner

FM Tuner with RDS
87.5 MHz to 107.9 MHz (0.2 MHz step)

AM Tuner
530 kHz to 1710 kHz (10 kHz step)

DAB+ Tuner
170 MHz to 230 MHz

Favorites
24 presets across all tuners

Bluetooth®

Profile
A2DP v1.2, AVRCP v1.4

Core Specification
Version 2.1 + EDR

Codec
SBC, Qualcomm® aptX audio

Connection Range
Up to 35 ft / 11 m

USB

Interface
USB 2.0 host

Maximum Current Output
USB1: 1 A / USB2: 500 mA

Supported Audio Formats
MP3, MP4, WAV (up to 1411 kbps), AAC, M4A, M4B

Apple Compatibility
iPhone 5 or beyond (functionality contingent upon compatible iOS release)

What's in the Box:

• MMC-105


• Gasket


• Cover


• Harbess


• Screw x 4


• Template
