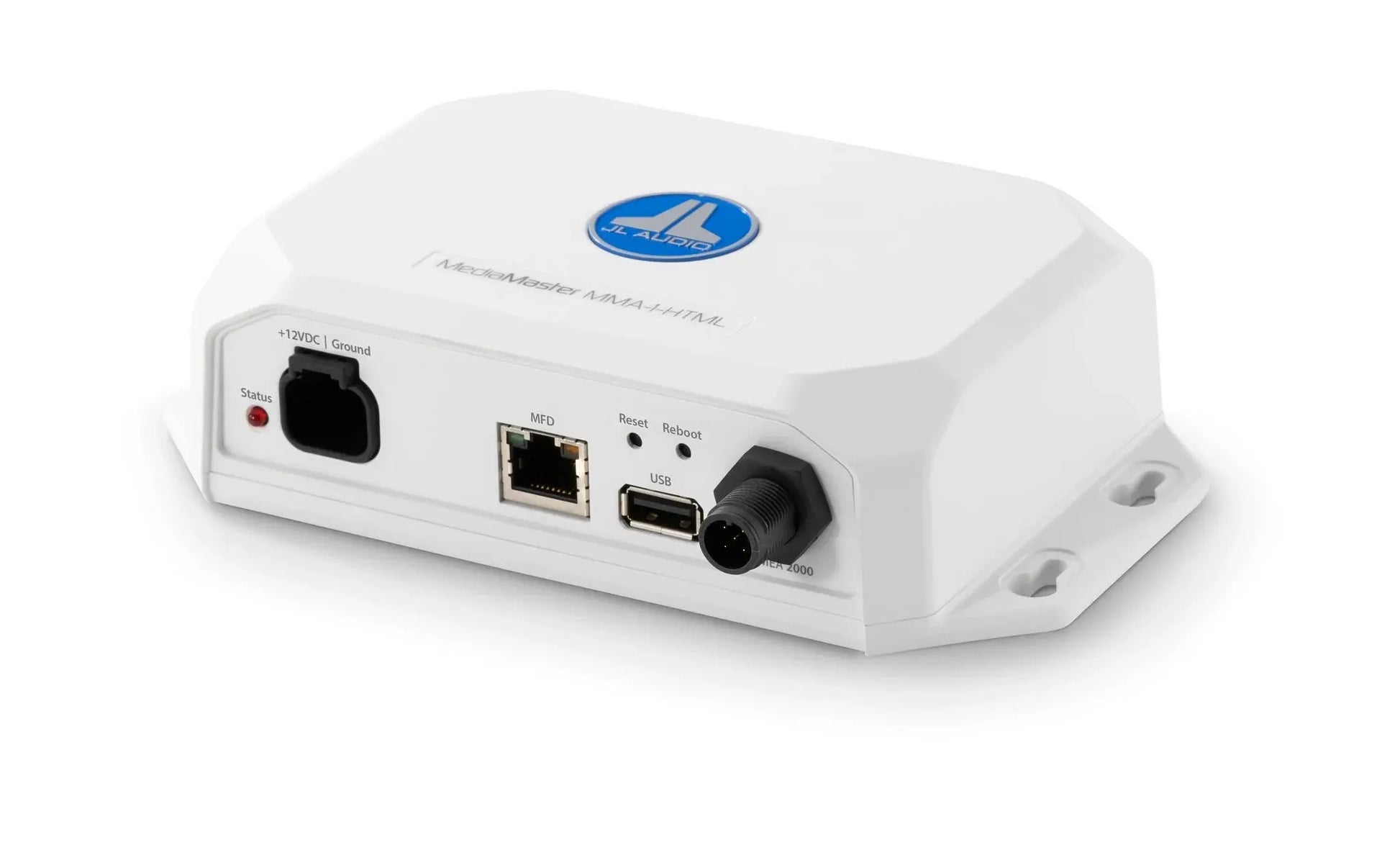

JL Audio MFD Data Interface for MediaMaster

JL Audio MFD Data Interface for MediaMaster

99956

Model: MMA-1-HTML

NMEA 2000(R) Network, MFD Data Interface for MediaMaster(R) MM105 & MM105-HR

The MMA-1-HTML is a NMEA 2000(R) certified data interface engineered to generate MediaMaster(R) themed UI navigation and controls directly onto your vessel's compatible MFD (Multi-Function Display). Exclusively designed for use with compatible MediaMaster(R) source units, the MMA-1-HTML allows you to pilot your boat and control your MediaMaster(R) seamlessly, via your helm's MFD display.

Outfitted with a NMEA 2000(R) Micro-C connector (LEN 1), the MMA-1-HTML interfaces with a vessel's NMEA 2000(R) network using applicable NMEA 2000(R) cables and connectors (not included). The MMA-1-HTML automatically recognizes the host MediaMaster(R) source unit and will then project its familiar screen info and navigation controls onto your MFD's display, resulting in a true MediaMaster(R) user experience.

Compatible source unit models: MM105, MM105-HR, MM55, MM55-HR

Note: Functionality of the MMA-1-HTML is derived from the host source unit and connected MFD. The MMA-1-HTML requires connection to a NMEA 2000(R) network or use of a MMC-PN2K powered network cable (sold separately) to simulate an isolated, stand-alone NMEA 2000(R) network.

USA Limited Warranty: Two (2) years from the original date of purchase.

Specifications
Operating Voltage 14.4V DC (10V - 15.9V)

Operating Temp Range
-4 F to +149 F (-20 C to +65 C)

Current Draw / Fuse Value
150 mA (max) / 1 A

NMEA 2000(R) LEN
1 (Micro-C connector)

Compatible MFDs
Simrad, B&G, Lowrance, Garmin

Dimensions
6.77 in. x 3.98 in. x 1.73 in.
(172 mm x 101 mm x 44 mm
