JL Audio MVi Marine Amplifier Monoblock Sub-woofer Amplifier 600 Watts 12v

Discover the Power of JL Audio MVi Marine Amplifier

JL Audio MVi Marine Amplifier Monoblock Sub-woofer Amplifier 600 Watts 12v

98644

Model: MV600/1

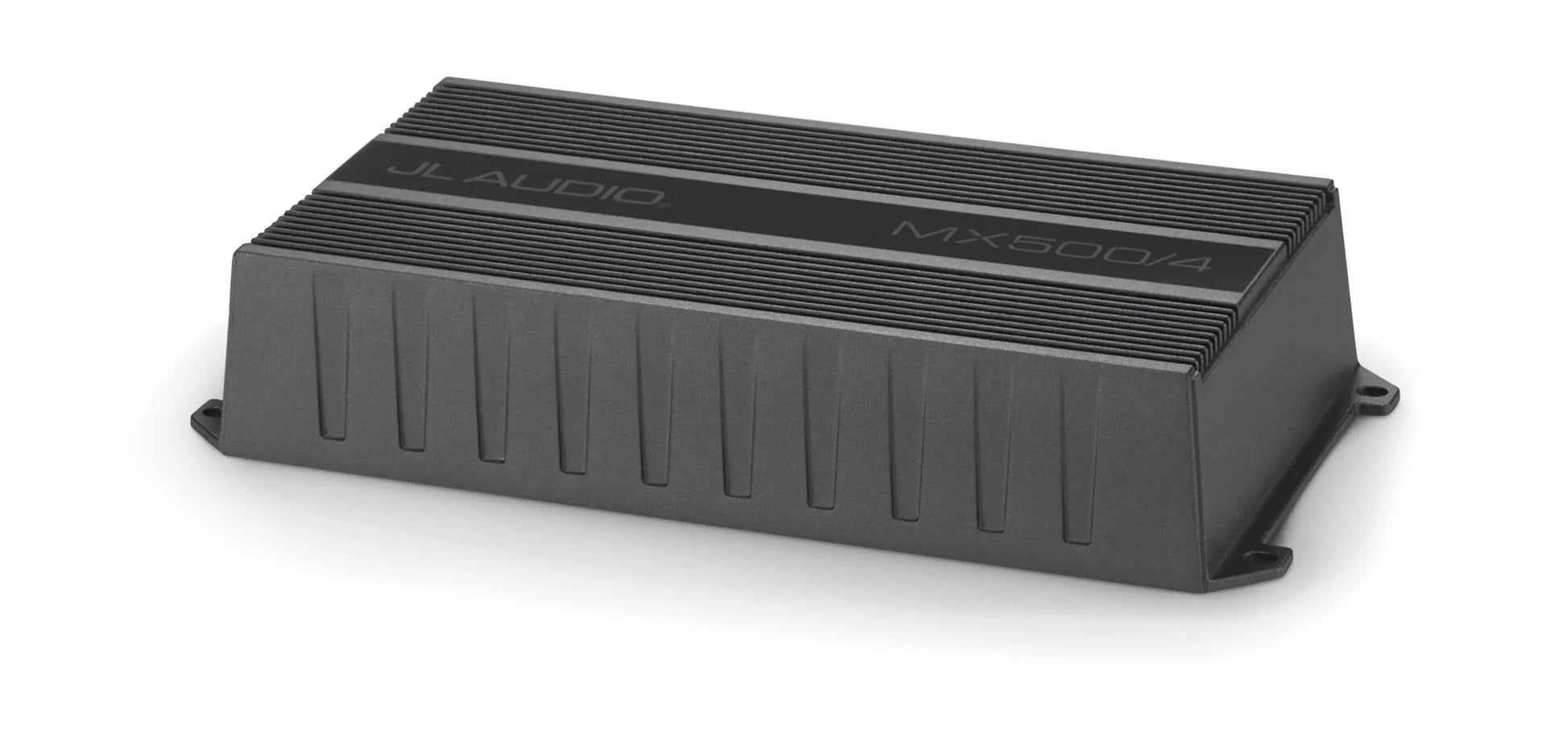

4-Channel Class D Full-Range Amplifier, 125 W x 4 @ 2 ohms / 70 W x 4 @ 4 ohms - 14.4V

Engineered specifically for powersports applications, the 4-channel MX500/4 amplifier employs our high-speed NexD switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.

Generating a solid 70W x 4 into 4 ohms (14.4V, 1% THD), the MX500/4 is fully bridgeable, so it can be used as a 3-channel amplifier, or as a 2-channel amplifier producing a potent 250W x 2 into 4 ohms.

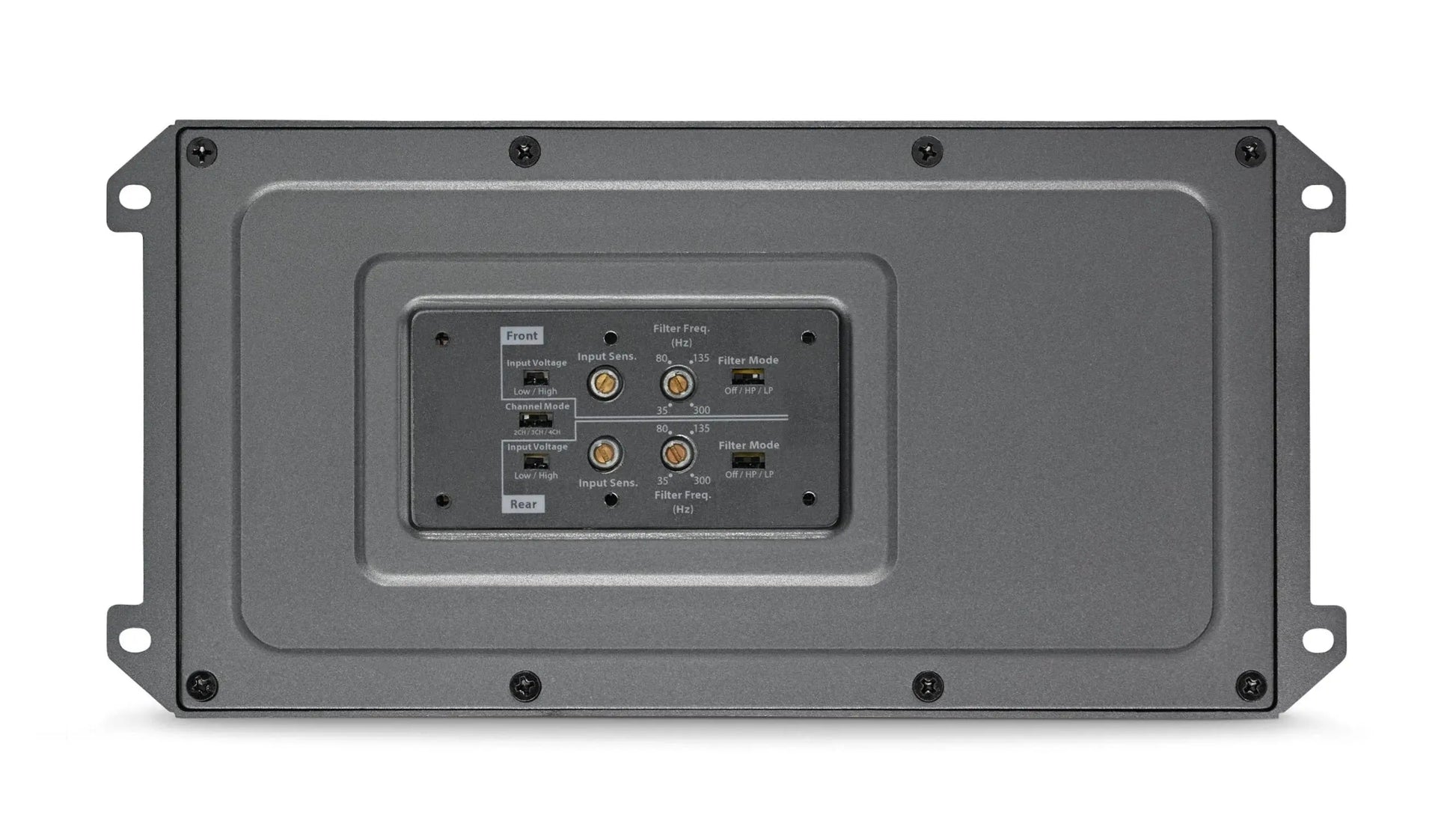

Other features include independent front and rear crossovers with selectable full-range, high-pass or low-pass filter controls and a dual-range input section that accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals.

This amplifier features a rugged powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.

USA Limited Warranty: Two (2) years from the original date of purchase.

Specifications

Rated Continuous (RMS) Power @ 14.4 V

@ 4 ohms
70 W RMS x 4

@ 2 ohms
125 W RMS x 4

Bridged @ 4 ohms
250 W RMS x 2

Rated Continuous (RMS) Power @ 12.5 V

@ 4 ohms
55 W RMS x 4

@ 2 ohms
90 W RMS x 4

Bridged @ 4 ohms
180 W RMS x 2

General Specifications

Frequency Response
20 Hz - 20 kHz (+0, -1dB)

S/N Ratio, referred to highest rated power
>88 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)

S/N Ratio, referred to 1 W
>70.5 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)

Damping Factor @ 4 ohms
>92 / 50 Hz

Damping Factor @ 2 ohms
>43 / 50 Hz

THD+N @ Rated Power
<1% @ 2 ohms per Ch.

Input Voltage Range @ RCA Inputs
Switchable from 250 mV - 4 V RMS (Low) to 750 mV - 15 V RMS (High)

Min.Copper Power / Ground Wire Gauge
4 AWG wire

Fuse Rating
50 A (AFS, AGU or MaxiFuse)

Signal Processing

Filter Mode(s)
Low-Pass or High-Pass

Filter Slope(s)
12 dB/octave

Filter Frequency Range
35 Hz - 300 Hz

Detented, Calibrated Filter Freq. Potentiometers
Yes

Filter Defeat Function
Yes

Remote Level Control
No

Remote Level Modes
N/A

Channel Input Mode Switch
Yes (2/3/4 ch.)

Pass-Through Preamp Output
None

Source Channel Selection for PreOuts
N/A

Physical Specifications

Height
1.77 in / 45 mm

Width
9.33 in / 237 mm

Depth
4.50 in / 115 mm

What's in the Box:

• (1) Amplifier
• (4) Stainless steel mounting screws
• (1) User manual

Unmatched Performance for Marine Audio Systems

The JL Audio MVi marine amplifier delivers exceptional 600 watts of continuous power, specifically designed for 12-volt marine environments. JL Audio is renowned for its high-quality sound equipment, and the MVi amplifier lives up to that reputation by providing crystal-clear bass and impressive subwoofer support. Its robust build ensures it withstands the harsh marine conditions, including saltwater exposure, humidity, and vibrations. This makes the MVi an ideal choice for boat owners and watercraft audio enthusiasts seeking reliable and powerful sound reproduction on the water.

Advanced Features Tailored for Marine Use

This JL Audio monoblock amplifier incorporates several marine-optimized features, such as a sealed and corrosion-resistant design with a powder-coated aluminum chassis. It includes comprehensive input and output options, plus built-in protection circuits to prevent damage from overheating or electrical faults. The MVi offers effortless integration with existing 12v marine electrical systems and supports various subwoofer configurations. This ensures users enjoy a finely tuned audio experience while maintaining system safety and longevity out on the open water.

Easy Installation and Versatile Applications

Installing the JL Audio MVi amplifier is straightforward, with clear wiring terminals and a compact footprint that fits well into most marine audio setups. Its compatibility with a wide range of subwoofers provides flexibility for customizing your sound system to match personal preferences. Whether upgrading a small boat’s audio or outfitting a luxury yacht’s sound system, the JL Audio MVi ensures enhanced bass performance, delivering impactful and rich tones that elevate your marine entertainment experience to the next level.
