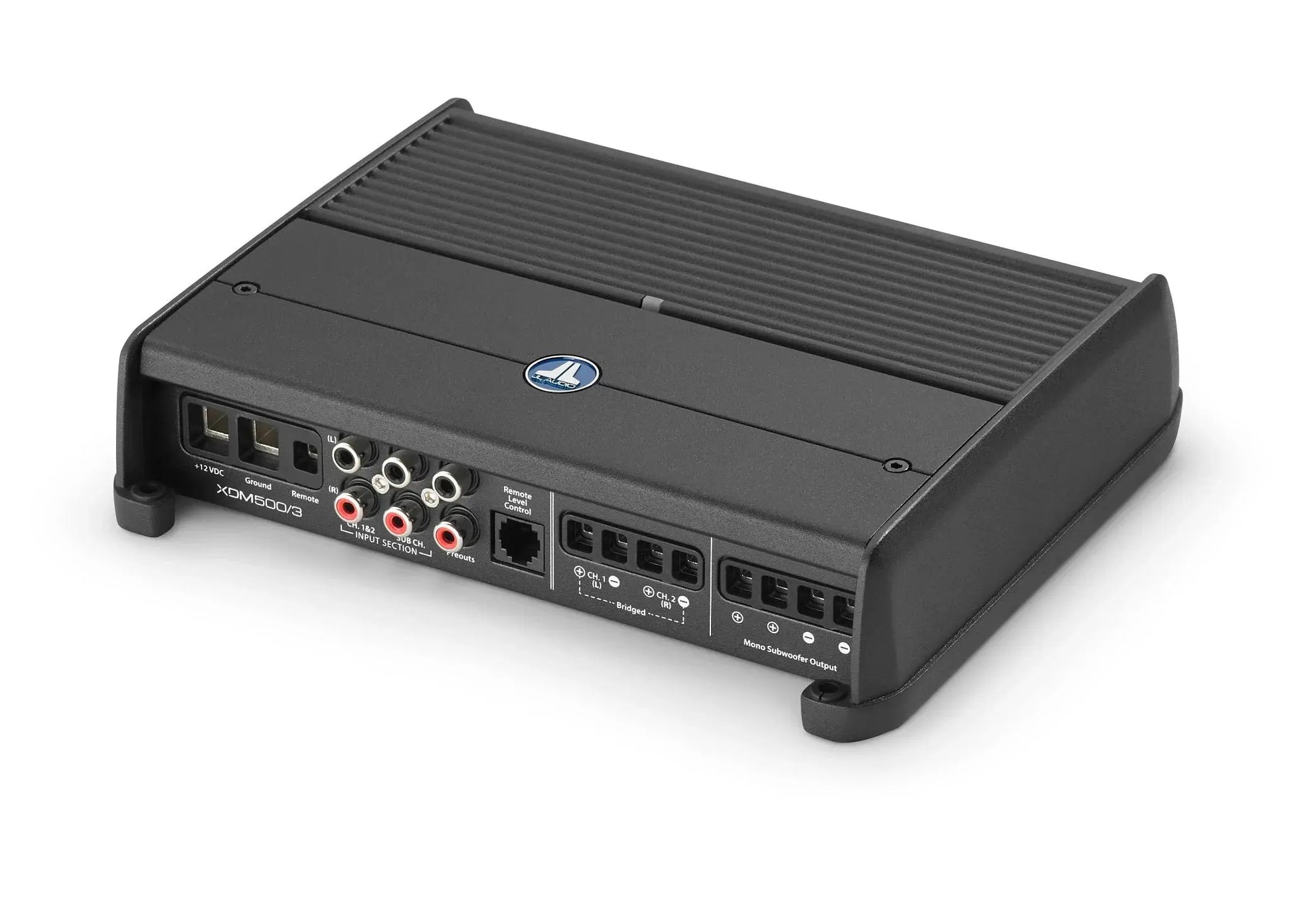

JL Audio XDM500/3 3 Ch. Class D, Car/Marine System Amplifier, 500 W

Model: XDM500/3

Small enough to fit in just about any tight space application, the XDM500/3 is the perfect amplifier for a simple audiophile-grade, subwoofer / satellite system. With its three channels of versatile output, you can drive a pair of quality component speaker systems with plenty of clean power, while also delivering a stout 300 W to your subwoofer system. The technology that makes this much power possible in such a small chassis is our advanced NexD switching amplifier design.

Suitable for car or boat installations, the XDM500/3 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.

The XDM500/3 includes a 12 dB / octave high-pass filter for its main channels, plus a variable slope low-pass filter for its subwoofer channel. Both filters offer continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you have the ability to adjust the level of all amplifier channels or just the subwoofer channel directly from the driver's seat or helm.

Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.

Specifications

Rated Continuous (RMS) Power @ 14.4 V

Main Channels @ 4 ohms
75 W RMS x 2

Main Channels @ 2 ohms
100 W RMS x 2

Main Channels - Bridged @ 4ohms
200 W RMS x 1

Subwoofer Channel @ 4 ohms
180 W RMS x 1

Subwoofer Channel @ 3 ohms
240 W RMS x 1

Subwoofer Channel @ 2 ohms
300 W RMS x 1

Subwoofer Channel @ 1.5 ohms
N/A

Rated Continuous (RMS) Power @ 12.5 V

Main Channels @ 4 ohms
60 W RMS x 2

Main Channels @ 2 ohms
90 W RMS x 2

Main Channels - Bridged @ 4ohms
180 W RMS x 1

Subwoofer Channel @ 4 ohms
180 W RMS x 1

Subwoofer Channel @ 3 ohms
240 W RMS x 1

Subwoofer Channel @ 2 ohms
300 W RMS x 1

Subwoofer Channel @ 1.5 ohms
N/A

Frequency Response (Main Channels)
12 Hz - 22 kHz (+0, -1dB)

Frequency Response (Subwoofer Channel)
10 Hz - 1 kHz (+0, -1dB)

S/N Ratio, referred to highest rated power (Main Channels)
>104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)

S/N Ratio, referred to 1 W
>84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)

Damping Factor @ 4 ohms
>120 / 50 Hz

Damping Factor @ 2 ohms
>60 / 50 Hz

THD+N @ Rated Power (Main Channels)
<1% @ 2 ohms per Ch.

THD+N @ Rated Power (Subwoofer Channels)
<1% @ 2 ohms per Ch.

Input Voltage Range @ RCA Inputs
200 mV - 4 V RMS

Min.Copper Power / Ground Wire Gauge
4 AWG wire

Rating
50 A (AFS, AGU or MaxiFuse)

Signal Processing

Filter Mode(s): Channels 1 & 2 (front)
High-Pass only

Filter Slope(s): Channels 1 & 2 (front)
12 dB/octave

Filter Frequency Range: Channels 1 & 2 (front)
50 Hz - 500 Hz

Filter Mode(s): Channels 3 & 4 (rear)
N/A

Filter Slope(s): Channels 3 & 4 (rear)
N/A

Filter Frequency Range: Channels 3 & 4
N/A

Filter Mode(s): Subwoofer Channel
Low-Pass only

Filter Slope(s): Subwoofer Channel
12/24 dB/octave

Filter Frequency Range: Subwoofer Channel
50 Hz - 500 Hz

Detented, Calibrated Filter Freq. Potentiometers
Yes

Filter Defeat Function
Yes

Infrasonic Filter: Subwoofer Channel
none

Remote Level Control
Optional HD-RLC or MHD-RLC (water-resistant)

Remote Level Modes
Sub Ch. or All Channels

Channel Input Mode Switch
Yes (2/4 ch.)

Pass-Through Preamp Output
Buffered

Source Channel Selection for PreOuts
Yes (1&2/Sum/Sub)

Height
2.05 in / 52 mm

Width (W)
8.52 in / 216 mm

Depth (D)
7.09 in / 180 mm

Net Weight
4.8 lb / 2.18 kg

What's in the Box:

• XDM500/3 Amp


• Wrench


• Badge
