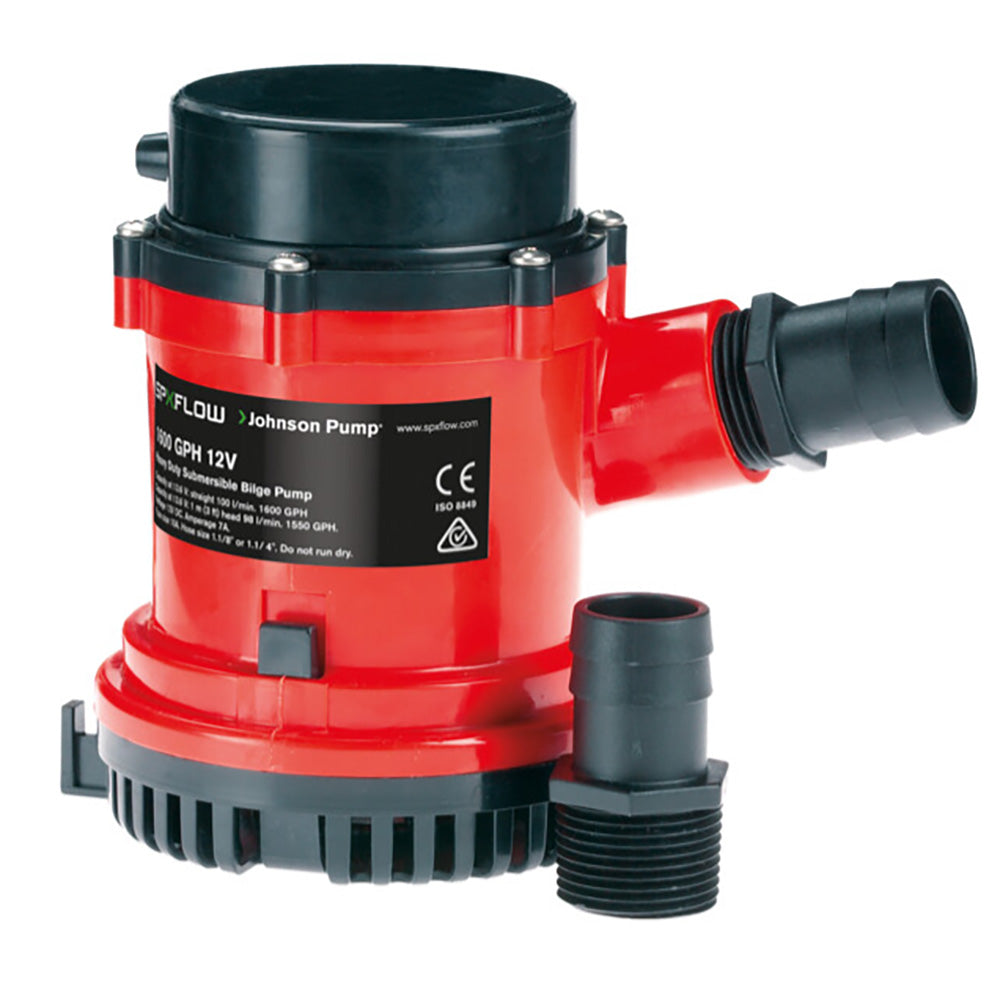

Johnson Pump 1600 GPH Bilge Pump 12V with 1-1/8" Hose Connection

Heavy Duty Bilge Pump 1600 series 12v:
The best choice when you are looking for high performance, heavy duty pumps
designed to meet and exceed the tough demands of commercial and recreational duty. This pump has a liquid cooled, 12-pole motor with double ball bearings for extended service life. The 2200 motor is sealed off by a mechanical seal design, while the 1600 model has lipseal. The impeller is carefully designed and tested to maximize head and flow. The 4000 features a robust motor design, mechanical shaft seal, high impact ABS plastic and unique threaded port design. Universal base plate and a choice of 1-1/2" or 2" ports makes for a simple installation. Removable check valve included.
CE-Approved

Features:

• Heavy duty, 12-pole double ball bearing motor

• Liquid cooled for extended motor life

• Quality engineered mechanical/lip seal

• ISO 8849 Marine and CE standards

• Easily interchangeable with most similar bilge pumps

• Pump body: Thermoplastic

• Shaft seal: Mechanical seal

• Shaft: Stainless steel (SS2343)

• Voltage: 12 V

• Capacity 1.0 m head (13.6 V/27 V): 98 l/min - 1550 GPH

• Capacity straight (13.6 V/27 V): 100 l/min - 1600 GPH

• Amperage: 7 A

• Fuse Size: 10 A

• Connection: 1-1/8" and 1-1/4"

• Shaft: SS2343

• Wire size: 1.3 mm2 - 16 GA

• Max height 149 mm - 5.86"

• Weight 1.3 kg - 2.75 lbs

The Johnson Pump 1600 GPH Bilge Pump is a high-performance, heavy-duty marine bilge pump designed to meet the demanding needs of both recreational and commercial vessels. Powered by a liquid-cooled, 12-pole motor with double ball bearings, this pump offers extended operational life and reliable performance in challenging environments. Its sealed motor features a mechanical seal (lipseal for the 1600 model) to prevent water ingress, ensuring long-term durability. The impeller has been meticulously engineered and tested to maximize flow rate and head height, making it capable of efficiently removing water from bilge areas. Constructed with high-impact ABS plastic and a robust motor design, the pump is built to withstand harsh marine conditions and includes a removable check valve for added convenience.

Features:

• Heavy-duty, 12-pole double ball bearing motor for reliable operation

• Liquid-cooled motor design extends service life

• Engineered mechanical/lip seal to prevent leaks

• Meets ISO 8849 Marine and CE standards for safety and quality

• Universal pump body compatible with most bilge pumps

• Thermoplastic pump body for durability

• Stainless steel shaft (SS2343) resistant to corrosion

• Operates on 12 V DC power supply

• Maximum capacity of approximately 27 gallons per minute at 1.0 meter head

• Includes a universal base plate and available port sizes of 1-1/8" or 1-1/4" for easy installation

• Wire size suitable for marine wiring (16 gauge)

• Compact design with a maximum height of about 5.86 inches

• Lightweight at approximately 2.75 pounds for easy handling and installation
