Johnson Pump cartridge aerator pumps offer ease of convenience and years of reliable service. This pump has an improved design with an easy-to-change/replace motor cartridge.
Features:
All Aqua O2 Cartridge Aerator Pumps offer the convenience of using only one intake for both the livewell and washdown pump
Includes a 3/4 NPSM thru-hull inlet that can be used straight or 90-degree
High-flow impeller design
Quick-change motor connection
360-degree pump discharge rotation
Switchless automatic bilge pump with low-amp resistance monitoring
Durable thermoplastic housing design commonality with removable motor cartridge
Enjoy quick and hassle-free cartridge motor changes or capacity upgrades
Reorient discharge in any direction
The common body allows interchangeable motor cartridge replacement in the same or different size
Corrosion-resistant and extended life
Allows single transom intake for dual intake pump application
Can increase or decrease capacity according to the environment and flow needed
Choose the correct intake for the application
Competitive Advantages:
The most efficient and highest flow in the GPH capacity category
Industry-first and only cartridge motor pump with an included harness connection requiring no cutting and splicing of wires
Unmatched versatility for ease of installation
Specifications:
Pump Size: 500 GPH
Capacity Straight (12V): 585 GPH (37 I/min)
Voltage: 12V
Amp: 2.7A
Fuse: 3.5A
Hose Connection: 3/4 in.
Wire Size: 16 GA, TINNED
Weight: 9.6 oz
Body: ABS
Dura Port: PA66/GF - Nylon
Shaft: 316 Stainless Steel
Shaft Seal: Nitrile Rubber
Motor Cartridge: PC-ABS

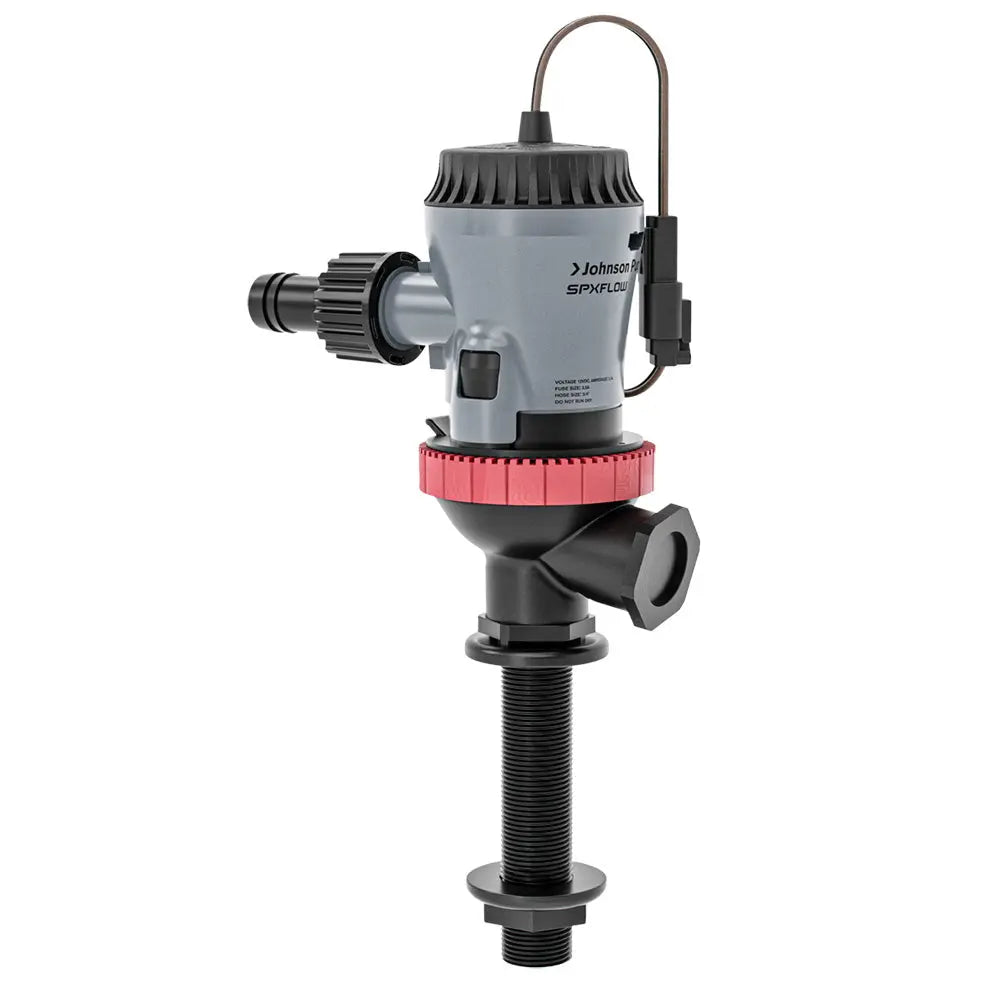

The Johnson Pump Aqua O2 Flex Mount 500 GPH Aerator Pump offers reliable, high-performance aeration for marine, aquaculture, and recreational applications. Designed with user convenience in mind, this pump features an easy-to-replace motor cartridge that simplifies maintenance and capacity upgrades. Its durable thermoplastic housing, combined with a water-cooled motor, 316 stainless steel shaft, and permanently lubricated double bearings, ensures longevity and resistance to corrosion in demanding environments. The pump's innovative design includes a 3/4-inch NPSM thru-hull inlet that can be installed straight or at a 90-degree angle, providing flexible plumbing options. The high-flow impeller and 360-degree discharge rotation allow for efficient oxygen transfer and adaptable placement to suit specific setup requirements. The pump's switchless automatic bilge operation with low-amp resistance monitoring enhances energy efficiency while maintaining consistent performance. Its dual-port inlet facilitates the use of a single transom intake for dual pump applications, reducing installation complexity. The pump can increase or decrease capacity based on environmental needs, making it suitable for a range of flow requirements. Industry-leading in its class, the Johnson Pump Aqua O2 offers unmatched versatility with an included harness connection that requires no cutting or splicing of wires, simplifying installation. Its compact weight of just over 9 ounces makes it suitable for various marine and aquatic environments. The pump's features and design make it an excellent choice for applications requiring high flow rates, durability, and ease of maintenance, ensuring long-term reliable operation in demanding conditions.
Features:
All Aqua O2 Cartridge Aerator Pumps use a single intake for both livewell and washdown pump
Includes a 3/4 inch NPSM thru-hull inlet with straight or 90-degree installation options
High-flow impeller design for maximum oxygen transfer
Quick-change motor connection for easy maintenance and upgrades
360-degree pump discharge rotation for flexible positioning
Switchless automatic bilge pump with low-amp resistance monitoring
Durable thermoplastic housing with removable motor cartridge
Water-cooled motor, 316 stainless steel shaft, and permanently lubricated double bearings for extended lifespan
Upgradable motor cartridge allows capacity adjustments
