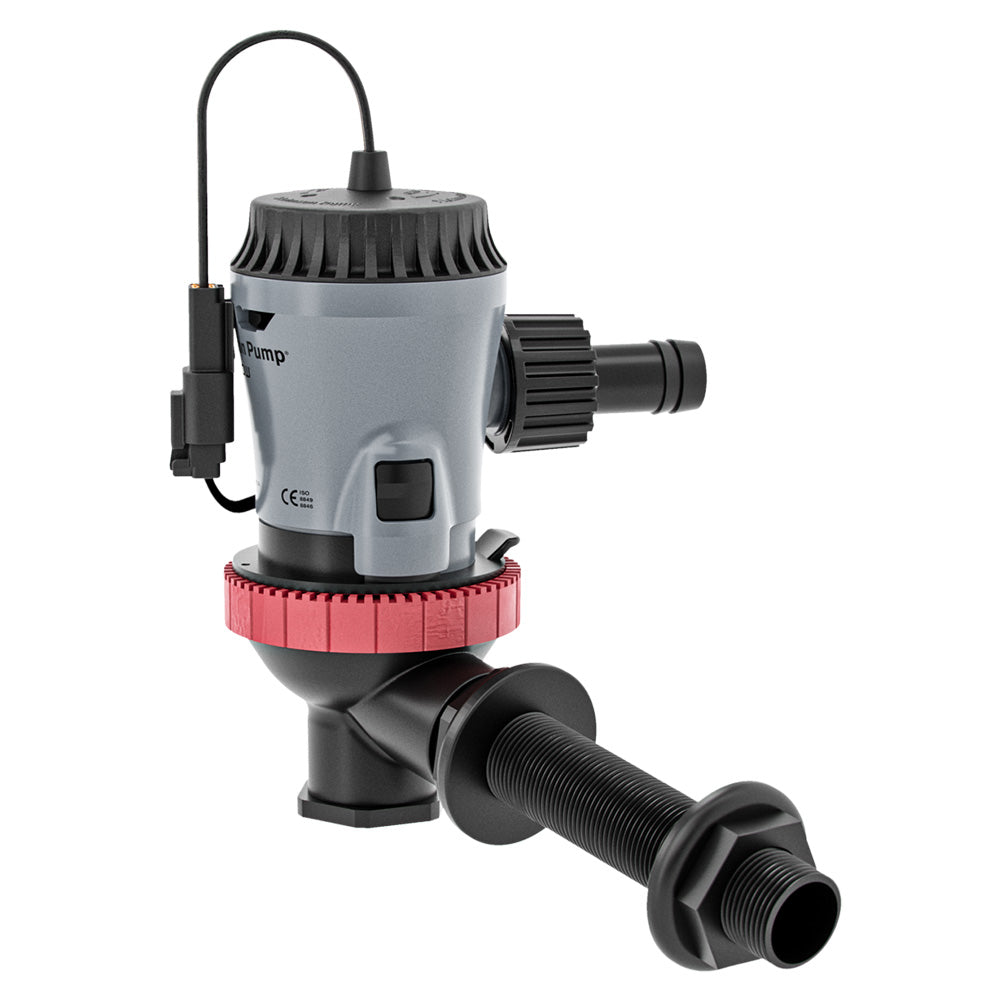

Johnson Pump Aqua O2 Flex Mount 800 GPH 12V Aerator Pump with Replaceable Cartridge and 360-Degree Discharge

Aqua O₂ Flex Mount 800 GPH Aerator Pump - 12V

Johnson Pump cartridge aerator pumps offer ease of convenience and years of reliable service. This pump has an improved design with an easy-to-change/replace motor cartridge.

Features:

• All Aqua O2 Cartridge Aerator Pumps offer the convenience of using only one intake for both the livewell and washdown pump
• Includes a 3/4 NPSM thru-hull inlet that can be used straight or 90-degree
• High-flow impeller design
• Quick-change motor connection
• 360-degree pump discharge rotation
• Replaceable cartridge motor
• Water-cooled motor, 316 stainless steel shaft, and permanently lubricated double bearings
• Upgradable motor cartridge
• Dual-port inlet

Benefits:

• Heightened efficiency and an increased flow rate
• Enjoy quick and hassle-free cartridge motor changes or capacity upgrades
• Reorient discharge in any direction
• The common body allows interchangeable motor cartridge replacement in the same or different size
• Corrosion-resistant and extended life
• Allows single transom intake for dual intake pump application
• Can increase or decrease capacity according to the environment and flow needed
• Choose the correct intake for the application

Competitive Advantages:

• The most efficient and highest flow in the GPH capacity category
• Industry-first and only cartridge motor pump with an included harness connection requiring no cutting and splicing of wires
• Unmatched versatility for ease of installation

Specifications:

• Pump Size: 800 GPH
• Capacity Straight (12V): 810 GPH (51 I/min)
• Voltage: 12V
• Amp: 3.7A
• Fuse: 5A
• Hose Connection: 3/4 in.
• Wire Size: 16 GA, TINNED
• Weight: 10.4 oz
• Body: ABS
• Dura Port: PA66/GF - Nylon
• Shaft: 316 Stainless Steel
• Shaft Seal: Nitrile Rubber
• Motor Cartridge: PC-ABS

The Johnson Pump Aqua O2 Flex Mount 800 GPH aerator pump is designed to deliver reliable performance for marine and aquatic applications. With a high-flow impeller and water-cooled motor, this pump ensures efficient oxygenation and water circulation. Its innovative design includes a quick-change motor cartridge, allowing for easy maintenance and capacity upgrades without complex wiring or disassembly. The pump features a 3/4 inch NPSM thru-hull inlet that can be configured straight or at a 90-degree angle, providing flexible installation options. The pump's body is constructed from durable ABS with a nylon Dura Port, and it incorporates a 316 stainless steel shaft with a nitrile rubber seal for corrosion resistance and longevity. The 360-degree rotating discharge port offers versatile directional flow management, making it suitable for various installation setups. Its compact weight and size make it ideal for tight spaces while maintaining high flow rates, with a capacity of up to 810 GPH at 12 volts. This pump's industry-first harness connection simplifies installation by eliminating the need for wire cutting or splicing, reducing setup time and potential errors. Whether used for livewell aeration or washdown systems, the Johnson Pump Aqua O2 is engineered for efficiency, durability, and ease of use, providing a dependable solution for demanding aquatic environments.

Features:

• All Aqua O2 Cartridge Aerator Pumps utilize a single intake for both livewell and washdown applications

• Includes a versatile 3/4 inch NPSM thru-hull inlet that can be used straight or at a 90-degree angle

• High-flow impeller design maximizes water movement

• Quick-change motor connection for simple maintenance and upgrades

• Discharge port can be rotated 360 degrees for flexible installation

• Replaceable cartridge motor allows for easy capacity adjustments

• Water-cooled motor with a durable 316 stainless steel shaft and permanently lubricated double bearings

• Upgradable motor cartridge for future performance enhancements

• Dual-port inlet design supports dual intake pump configurations

• Corrosion-resistant materials extend the pump’s lifespan
