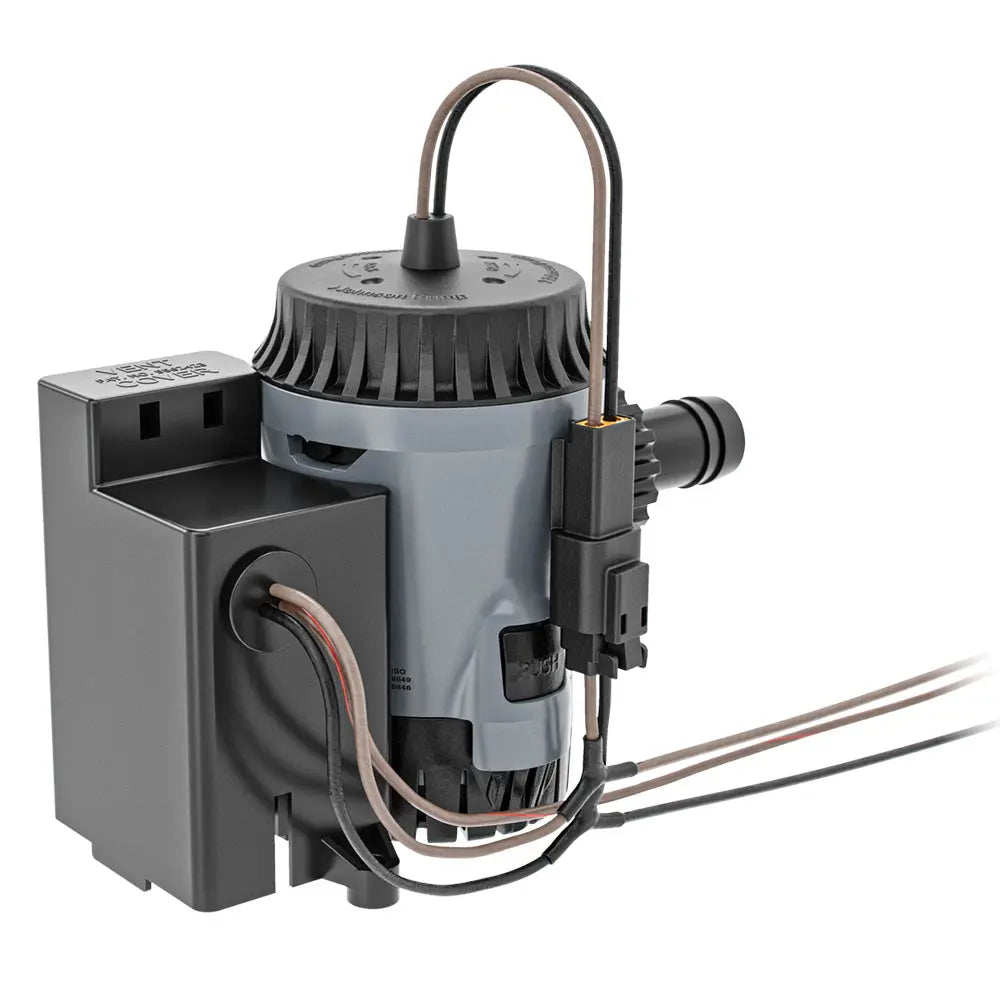

Johnson Pump Aqua Void Electro-Magnetic Combo 500 GPH Bilge Pump - 12V

Aqua Void Electro-Magnetic Combo 500 GPH Bilge Pump - 12V

With its industry-first quick-change motor connection and new reinforced click-in basket, this bilge pump simplifies cleaning and installation, and it's convenient and efficient. Its enhanced motor ensures reliability and performance in any condition. Experience worry-free boating with Aqua Void.

This pump is combined with a non-clogging electro-magnetic float switch for automatic operation. The switch reacts to the level of water present in the bilge and automatically activates and deactivates the pump.

Experience the Industry-First Quick-Change Motor Connection

Johnson Pump's groundbreaking product features a quick-change motor connection for hassle-free cartridge motor changes or capacity upgrades.

Take Control of the Boating Experience with Unparalleled Convenience

The Aqua Void Cartridge Bilge Pump is designed with single-handed access, perfect for tight bilge spaces. The pump body is easy to install or remove, and an innovative reinforced click-in basket simplifies installation, cleaning, or inspection.

Enjoy Enhanced Efficiency and Higher Flow Rate

Powered by an enhanced motor and high-flow impeller, the Aqua Void achieves increased efficiency and a higher flow rate while conserving energy consumption.

Trust in Reliable Performance Under Demanding Conditions

Johnson Pump Marine is renowned for its industry-leading reliability. The Aqua Void lives up to this reputation with its robust construction and meticulous engineering.

Enjoy a worry-free time on the water and experience Reliability On Board. The Aqua Void Bilge Pump is a game-changing solution that sets a new standard in bilge pumps. Don't miss this opportunity to enhance the boating experience. Get the Aqua Void today!

Features:

• Heightened efficiency with an increased flow rate - high-flow impeller design
• Quick-change motor connection enjoy quick and hassle-free cartridge motor changes or capacity upgrades. Industry-first and only cartridge motor pump with included harness connection requiring no cutting and splicing of wires
• Water-cooled motor for long service intervals
• Compact, all-in-one motor/Impeller unit with stainless steel (316) Shaft
• No tools are needed for maintenance, no need for complete disassembly. You can now leave the pump casing attached to both the boat and the hoses.
• Easy-to-install dura-port discharge ports to eliminate stress cracking caused by over-tightened hose clamps
• Include both a straight and a 90-degree smooth elbow dura-port as well as a removable check valve
• Meets the international standard, ISO 8849 marine
• Molded T-Slot - Easy Installation with Switches
• This cartridge pump combines an electro-magnetic float switch

Specifications:

• Pump Size: 500 GPH
• Capacity Straight (12V): 600 GPH (38 I/min)
• Voltage: 12V
• Amp: 2.7A
• Fuse: 3.5A
• Hose Connection: 3/4 in.
• Wire Size: 16 GA, TAC
• Weight: 15.9 oz (0.45 kg)
• Body: ABS
• Dura Port: PA66/GF - Nylon
• Shaft: 316 Stainless Steel
• Shaft Seal: Nitrile Rubber
• Motor Cartridge: PC-ABS
• Pump Dimensions (W x H x L): 3.88 x 4.69 x 6.17 inches (99 x 120 x 157 mm)

The Johnson Pump Aqua Void Electro-Magnetic Combo 500 GPH Bilge Pump offers innovative features designed to simplify maintenance and enhance performance in marine environments. Its industry-first quick-change motor connection allows for effortless cartridge motor swaps or capacity upgrades, eliminating the need for cutting or splicing wires. This design feature provides boaters with unmatched convenience, making installation and servicing quick and straightforward. The pump's reinforced click-in basket ensures easy cleaning and inspection, while its compact design allows for single-handed operation in tight bilge spaces. Built with a stainless steel (316) shaft and a water-cooled motor, the Aqua Void delivers reliable performance and longer service intervals even under demanding conditions. Its high-flow impeller improves efficiency and increases flow rate, conserving energy and ensuring effective bilge management. The integrated electro-magnetic float switch automatically activates and deactivates based on water levels, providing automatic operation and peace of mind for boaters. Constructed from durable ABS and nylon materials, the pump meets international marine standards, ensuring long-lasting performance. With easy-to-install dura-port discharge ports, a removable check valve, and a molded T-slot for switch installation, this bilge pump combines innovation with user-friendly design. Whether upgrading an existing system or installing a new one, the Aqua Void is engineered to deliver high flow rates, reliability, and ease of maintenance in a compact package, making it an essential component for worry-free boating experiences.

Features:

• High-flow impeller design for increased efficiency and flow rate

• Industry-first quick-change motor connection for hassle-free cartridge motor swaps and upgrades

• Water-cooled motor extends service intervals

• Compact all-in-one motor and impeller unit with stainless steel (316) shaft for durability

• Maintenance-free design; no tools required for cleaning or removal

• Easy-to-install dura-port discharge ports reduce stress cracking from over-tightening

• Includes straight and 90-degree smooth elbow dura-ports with removable check valve

• Meets ISO 8849 marine international standards

• Molded T-slot for straightforward switch installation

• Integrated electro-magnetic float switch for automatic water level control
