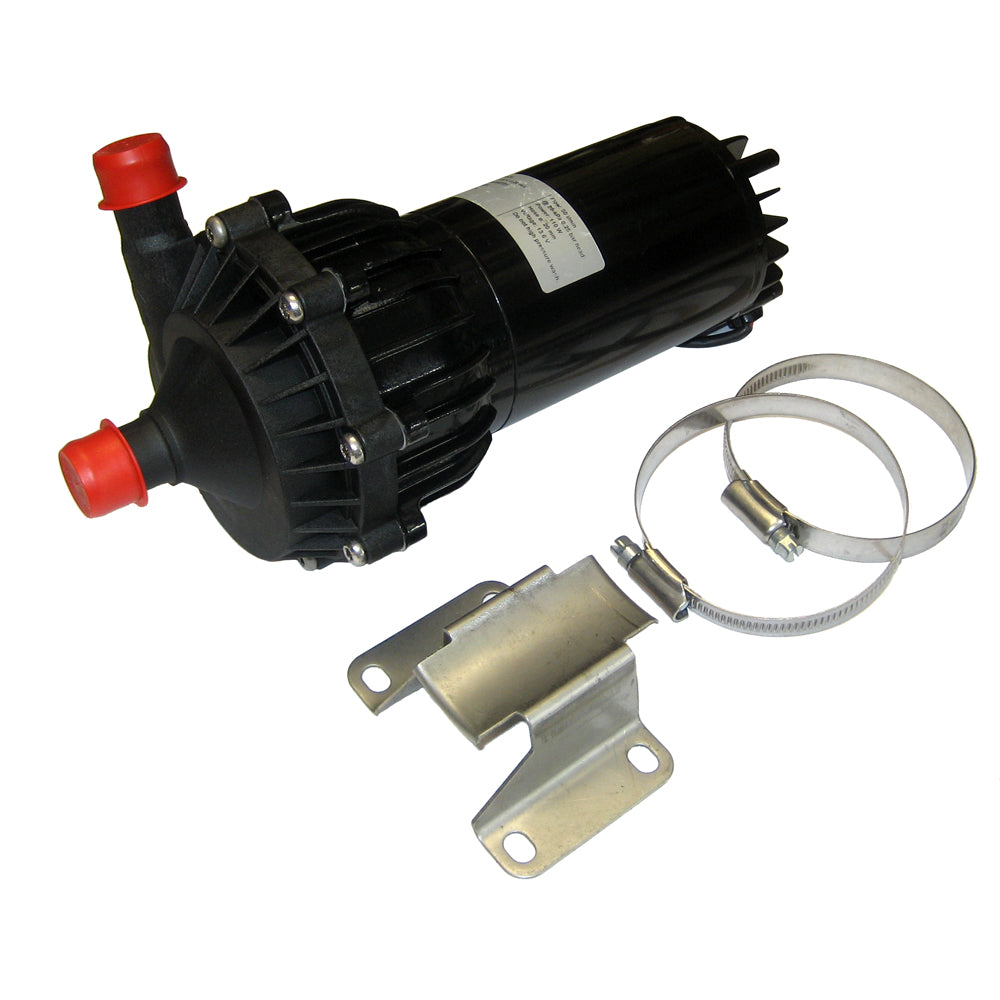

Johnson Pump CM90 Circulation Pump - 17.2 GPM, 12V, 3/4-Inch Outlet

CM90 Circulation Pump - 17.2GPM - 12V - 3/4" Outlet

CM90 circulation pumps are a line of compact magnetic driven centrifugal pumps which combine high flow rates with very low electric current consumption. Suitable for fresh water, ethylene glycol and salt water circulation. Glass-fiber reinforced PPA body.

Specifications:

• System Pressure:-0.3 to 3.0 bar; stationary max. 4.0 bar

• Liquid: Water/glycol mixture; max. 60% glycol, fresh and salt water

• Motor service life: More than 5,000 hours at nominal voltage, 10,000 start/stops. Interchangeable motor

• Dry running: 30 minutes

• Dimensions: 244mm L x 120mm W x 150mm H

• Weight: 6.6lbs

• Capacity: 17.2 GPM

• Ports: 3/4"

The Johnson Pump CM90 circulation pump delivers high flow rates with minimal electrical consumption, making it ideal for various fluid circulation applications. Its compact design features a glass-fiber reinforced PPA body, ensuring durability and resistance to corrosion when circulating fresh water, salt water, or glycol mixtures. With a flow capacity of 17.2 gallons per minute and a 3/4-inch outlet, this pump efficiently manages fluid movement in tight spaces. The magnetic-driven centrifugal design ensures reliable performance while maintaining low power consumption, making it suitable for continuous operation. Its versatile construction supports liquids containing up to 60% glycol, providing flexibility for different cooling and circulation systems. The pump's durable motor offers over 5,000 hours of service life at nominal voltage with up to 10,000 start/stops, and it can operate briefly in dry conditions for up to 30 minutes.

Designed for ease of installation and maintenance, the CM90 features a compact footprint with dimensions that facilitate easy integration into existing systems. Its lightweight construction at approximately 6.6 pounds makes it suitable for a range of mobile and stationary applications. The pump's robust build and efficient operation make it a reliable choice for water circulation in various industries, including HVAC, automotive cooling, and marine systems. Whether used for fresh water, salt water, or glycol solutions, the Johnson Pump CM90 provides consistent performance, durability, and energy efficiency in a compact package.

Features:

• High flow rate: 17.2 gallons per minute for efficient circulation

• Low power consumption: energy-efficient magnetic-driven centrifugal design

• Durable construction: glass-fiber reinforced PPA body resists corrosion

• Versatile liquid compatibility: suitable for fresh water, salt water, and glycol mixtures up to 60%

• Reliable motor life: over 5,000 hours of continuous service with up to 10,000 start/stops

• Brief dry running capability: up to 30 minutes without damage

• Compact and lightweight: measures approximately 9.5 inches long and weighs 6.6 pounds
