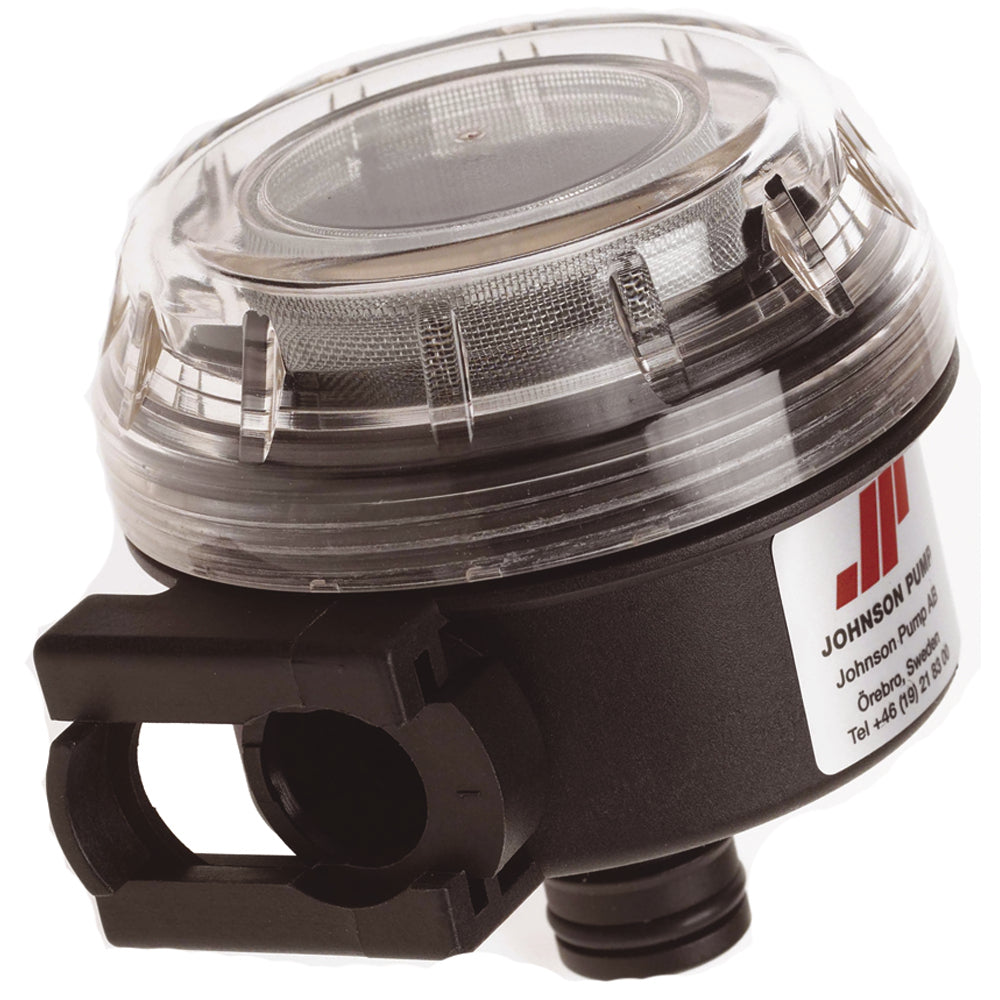

Johnson Pump Inlet Strainer with 40 Mesh Screen and KlickTite Connectors

PUMProtector Strainer
The PUMProtector inlet and universal strainers feature transparent covers for simple inspection, a wide variety of KlickTite port connectors for simple installation and removal, and high quality materials for simple maintenance. The connectors make it possible to remove the entire unit for thorough cleaning wherever it's most convenient.

Materials
Strainer - Polyamide 66, black
Cover - Acrylic, clear, 01-36012 P02
Screen - Stainless steel, 40 mesh
O-rings - Silicone and EPDM

Diameter 80 mm / 3.15"
Height 60 mm / 2.35"
Weight 0.15 kg / 0.33 lbs
Mesh size 40

Max Liquid Temp. - +50C - +120F
Max Temp. for Drinking Water - +30C - +85F
KlickTite Connector - Built-in KlickTite 1 x 1/2" hose / 3/8" NPT, 1 x 3/4" hose / 1/2" NPT

The Johnson Pump 09-24653-02-CN inlet strainer is designed for reliable filtration in various fluid systems. Featuring a transparent acrylic cover, it allows for easy visual inspection without disassembly. The unit includes a stainless steel 40 mesh screen that effectively filters out debris while maintaining a steady flow of liquid. Its high-quality polyamide 66 body ensures durability and resistance to harsh environments, making it suitable for marine, industrial, or water treatment applications. The silicone and EPDM O-rings provide a secure seal to prevent leaks, ensuring optimal performance over time. The built-in KlickTite connectors include a 1/2" hose / 3/8" NPT and a 3/4" hose / 1/2" NPT connection, allowing for quick installation and removal for maintenance or cleaning. This feature simplifies system servicing, reducing downtime and labor costs. With a diameter of approximately 3.15 inches and a height of about 2.35 inches, this strainer is compact yet effective in filtration applications. It is rated for maximum liquid temperatures from +50°C to +120°F, and suitable for drinking water systems up to +30°C to +85°F. Weighing approximately 0.33 pounds, it offers a lightweight solution without sacrificing strength and durability. Designed for ease of use and maintenance, the Johnson Pump Inlet Strainer provides a dependable filtration solution for a wide range of fluid handling needs. For detailed installation instructions and maintenance guidelines, refer to the owner’s manual available at the provided URL.

Features:

• Transparent acrylic cover for easy inspection

• Stainless steel 40 mesh screen for effective filtration

• Durable polyamide 66 body resistant to harsh environments

• Silicone and EPDM O-rings for secure sealing

• Built-in KlickTite connectors for quick installation and removal

• Compact design with approximately 3.15-inch diameter and 2.35-inch height

• Rated for maximum liquid temperatures of +50°C to +120°F

• Suitable for drinking water systems up to +30°C to +85°F

• Lightweight at approximately 0.33 pounds for easy handling

• Includes versatile port connectors for flexible system integration
