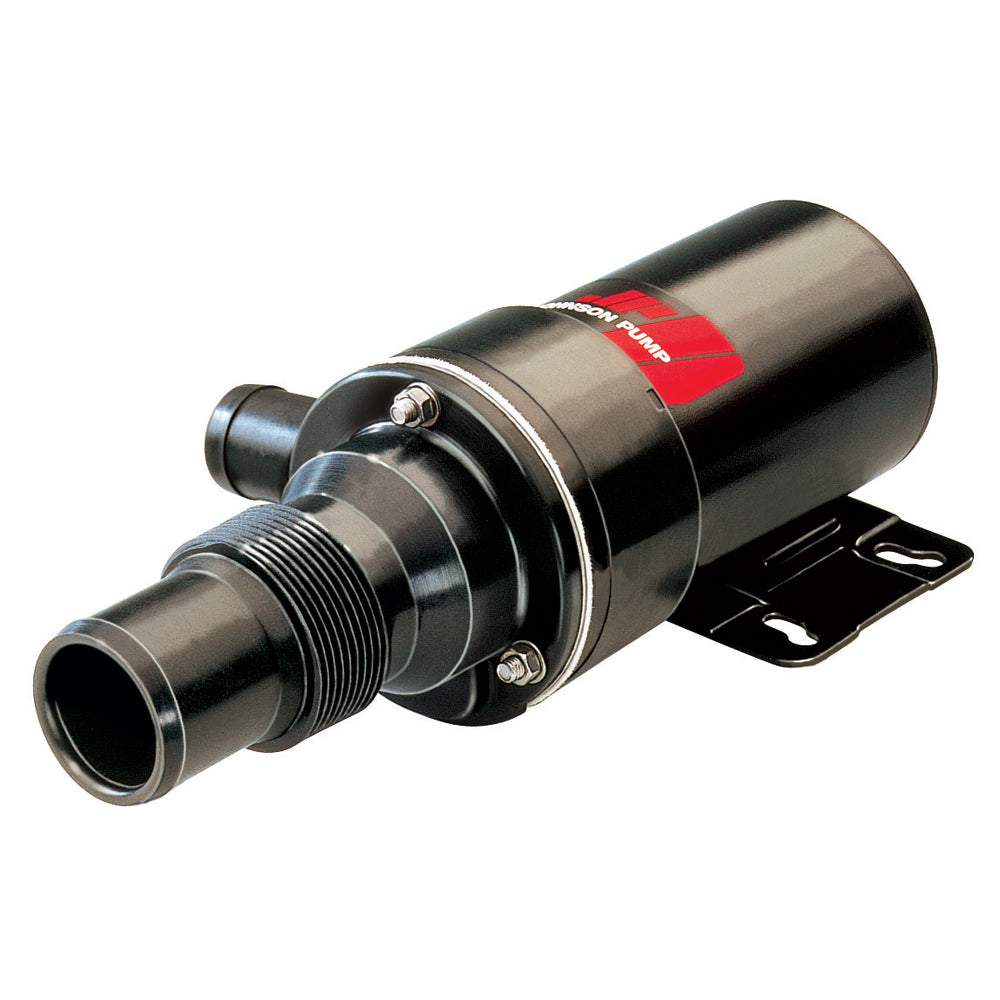

Johnson Pump Macerator Pump TA3P10-19, 12V for Marine Waste Disposal

Macerator Pump TA3P10-19, 12v

The Johnson Pump brand TA3P10-19 Macerator pump takes care of the toilet/livewell waste, shredding it before it is pumped into or out from the holding tank. The pump should be connected as close as possible to the holding tank discharge outlet or the bowl discharge outlet. Note! Use unbleached lavatory paper only.

Features:

• Ignition protected motor, conforming with ISO 8846 Marine
• Mounting bracket for easy replacement
• Extremely energy efficient
• Rotary cutter casing of PET (thermoplastic polyester)
• Directly connected to sewage line or holding tank
• Capacity at 0.2 bar (6.7 ft):37 l/min - 10 GPM
• Inlet Connection:11/2" (dia 38 mm) hose or 11/2"NPT
• Amperage: 15 A
• Fuse Size: 20 A
• Outlet Connection: 1" (25.4 mm) hose
• Motor: 12V DC (with built-in thermal protection)
• Pump Body: Phenol Plastic (PF)
• Impeller: Nitrile
• Cutter Casing: Thermoplastic Polyester (PET)
• Shaft: Stainless Steel
• Seal: Lip Seal
• Length: 230 mm - 9.06"
• Width: 108 mm - 4.25"
• Height: 82 mm - 3.23"
• Weight: 1.9 kg - 4.2 lbs

*CE-Approved

The Johnson Pump TA3P10-19 Macerator Pump is designed for efficient handling of toilet and livewell waste on boats and marine vessels. With a robust 12V DC motor featuring built-in thermal protection, this pump shreds waste before pumping it into or out of the holding tank, ensuring smooth and reliable operation. Its ignition-protected motor complies with ISO 8846 Marine standards, making it suitable for marine environments. The pump should be installed as close as possible to the discharge outlet for optimal performance, and only unbleached lavatory paper should be used to prevent clogging and maintain system integrity.

Constructed with durable materials including phenol plastic for the pump body and thermoplastic polyester for the cutter casing, the TA3P10-19 is built to withstand harsh marine conditions. The rotary cutter, made from nitrile, effectively shreds waste to prevent blockages. The pump features a stainless steel shaft and a lip seal for reliable sealing and longevity. Its compact dimensions and mounting bracket facilitate easy installation and replacement, making maintenance straightforward. Capable of processing up to 37 liters per minute at 0.2 bar (6.7 feet head), it ensures efficient waste removal even in demanding applications.

Designed for seamless connection, the inlet accommodates 1½ inch hoses or NPT fittings, while the outlet connects via a 1-inch hose. The electrical specifications include a 15-amp draw and a 20-amp fuse requirement, providing safe and consistent operation. The pump's small footprint, measuring approximately 9 inches in length, 4.25 inches in width, and 3.23 inches in height, along with a weight of just under 4.2 pounds, allows for flexible installation options. This CE-approved Johnson Pump model offers a reliable solution for marine waste management, combining energy efficiency with durability and ease of maintenance.

Features:

• Ignition protected motor conforming with ISO 8846 Marine standards

• Mounting bracket included for easy installation and replacement

• Highly energy-efficient operation to reduce power consumption

• Rotary cutter casing made from durable thermoplastic polyester (PET)

• Designed for direct connection to sewage line or holding tank

• Flow capacity of 37 liters per minute at 0.2 bar (6.7 ft head)

• Inlet connection suitable for 1½ inch hoses or NPT fittings

• Electrical amperage of 15 A with a 20 A fuse for safety

• Outlet connection compatible with 1 inch hoses

• Built-in thermal protection for reliable motor operation

• Constructed with corrosion-resistant stainless steel shaft and high-quality nitrile impeller

• Compact size for easy installation in confined spaces

• CE-Approved for marine safety and compliance
