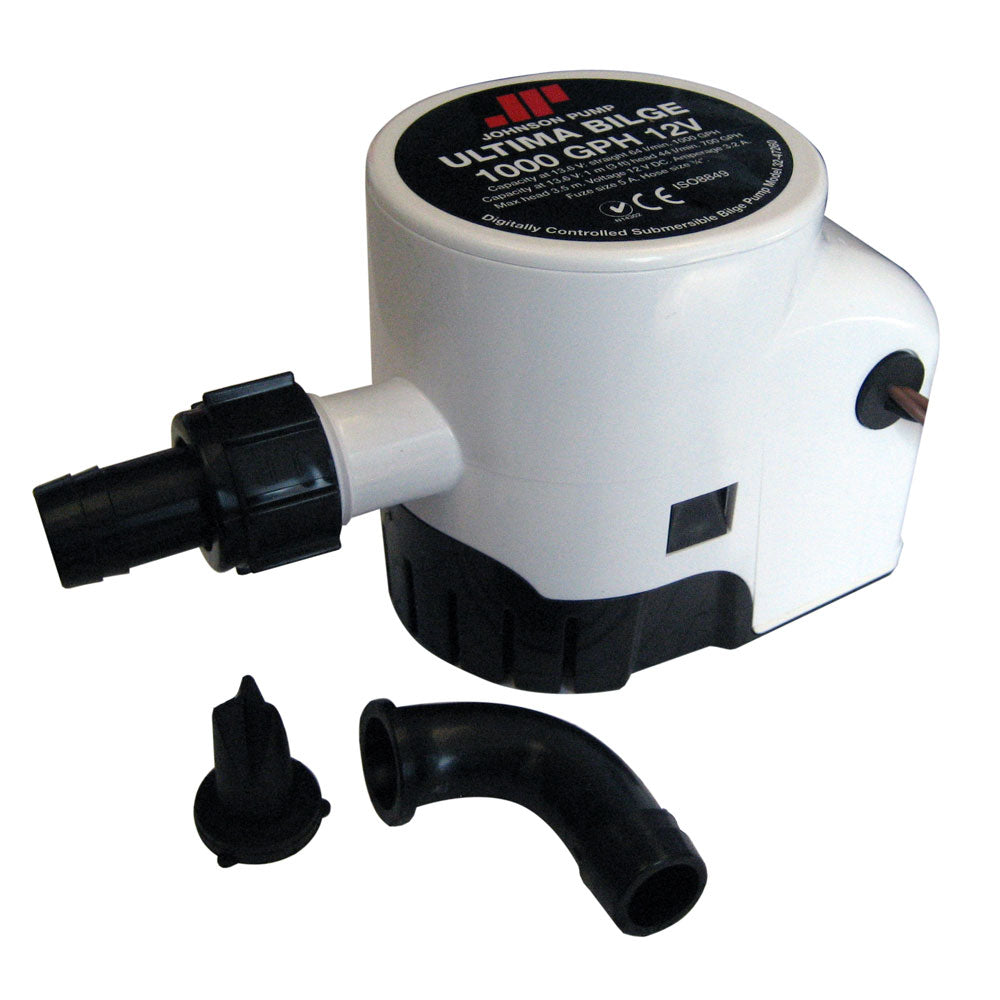

Johnson Pump Ultima Bilge Pump 1000 GPH with Dura-Port Discharge and Integrated Switch

Ultima Bilge Pump
UltimaBilge Pumps are the latest addition to the Johnson Pump brand lineup. Integration of the Ultima "field effect" sensing technology into the bilge pump body creates a sleek, reliable and compact unit with integrated switch ready to install and run for years and years of unerring service. Available in 600-800-1000-1250 GPH versions. Voltage 12 V DC. For UltimaBilge 600 GPH-1000 GPH, we have easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps. These pumps will be delivered including both a straight and a 90 degree smooth elbow Dura-Port.

All version are delivered with a removable check valve.

The Ultima Bilge pumps may be manually operated via the Johnson Pump bilge
control panel.
CE-Approved

Features:

• Compact, all-in-one unit

• Integrated Ultima Switch sensing right into the pump body

• No Mercury

• Removable clip on basket design

• Removable impeller cover allows for easy clean out

• 3-wire device can be run in auto or manual override mode

• No tools needed for maintenance

• Extremely energy efficient

• Water-cooled motor for long service intervals

• Pump Body: ABS

• Shaft Seal: Lip Seal

• Shaft: Stainless steel (SS2343)

• Voltage: 12 V DC

• Capacity 3 ft (0.9 m) head (13.6 V): 44 l/min - 700 GPH

• Capacity straight (13.6 V): 64 l/min - 1000 GPH

• Amperage: 3.2 A

• Fuse Size: 5 A

• Connection: 3/4"

• Length:142 mm - 6"

• Width:82 mm - 3.2"

• Height:105 mm - 4.1"

• Weight:0.66 kg - 23.3 oz.

The Johnson Pump Ultima Bilge Pump model 32-47260-003 is a compact, all-in-one bilge pump designed for reliable water management on boats. Featuring the innovative Ultima "field effect" sensing technology integrated directly into the pump body, this unit offers dependable automatic operation, eliminating the need for external sensors. Its water-cooled motor ensures long service intervals, making it suitable for continuous use in demanding marine environments. The pump is constructed with durable ABS pump body, a stainless steel shaft, and a lip seal to resist corrosion and wear. It operates efficiently at 12 V DC, delivering up to 1000 GPH at a 3-foot head height, which makes it an ideal choice for bilge dewatering applications. The included removable check valve, along with both straight and 90-degree Dura-Port discharge fittings, simplifies installation and maintenance while preventing stress cracking caused by hose clamp over-tightening. The pump's design incorporates a removable impeller cover and clip-on basket, facilitating easy cleaning and routine inspection without tools. Its 3-wire configuration allows for manual override and automatic operation, providing flexibility for various bilge control setups. The Ultima Bilge Pump is CE-approved, ensuring compliance with safety and quality standards. Compact and lightweight, it measures approximately 8.2 inches wide, 4.1 inches high, and 6 inches long, making it suitable for tight spaces on a vessel. It features a 3/4-inch connection size for straightforward hose attachment, and its energy-efficient operation consumes about 3.2 amps, helping to conserve power onboard. The Johnson Pump Ultima Bilge Pump model 32-47260-003 is a durable, high-performance solution designed for long-term, maintenance-friendly bilge management, ensuring safety and peace of mind during marine activities. For detailed installation and maintenance instructions, refer to the owner’s manual available online.

Features:

• Compact, all-in-one unit with integrated Ultima switch sensing technology

• Includes both straight and 90-degree Dura-Port discharge fittings with stress relief features

• Removable check valve and impeller cover for easy maintenance and cleaning

• 3-wire design allows for automatic or manual operation

• Water-cooled motor for extended service life

• Constructed with durable ABS pump body and stainless steel shaft

• CE-approved for safety and quality assurance

• Efficient operation at 12 V DC with up to 1000 GPH capacity

• Designed for easy installation with 3/4-inch connection size

• Lightweight and compact for versatile mounting options
