KFI Ranger Multi-Mount Kit UTV-675 for Versatile Equipment Installation

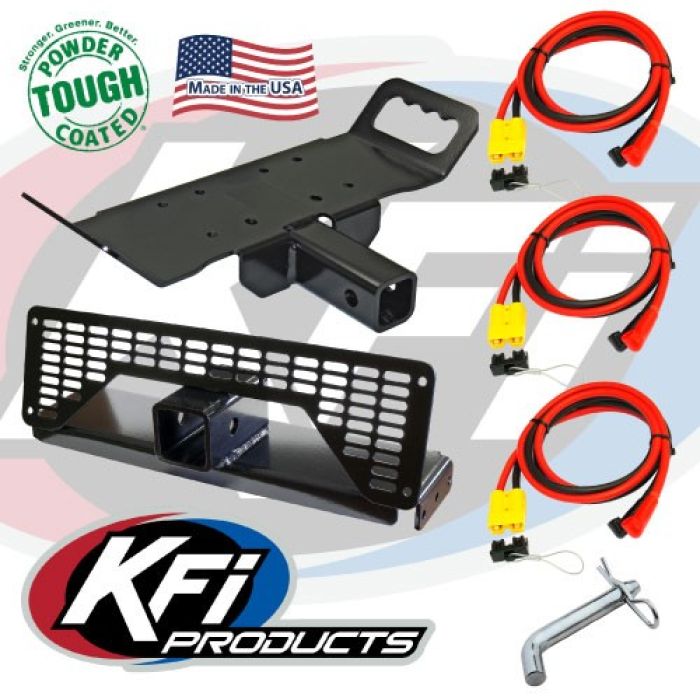

Kit includes the following:

(1) Front upper 2" Receiver that mounts in the location shown in the picture (#100675)

(1) 2" Receiver Winch Mount (#100620)

(1) 20" Quick Connect that gets wired to your winch leads (#QC-20)

(1) 48" Quick Connect that goes from your winch contactor to the front of your Ranger (#QC-48)

(1) 120" Quick Connect that goes from your winch contactor to the rear of your Ranger (#QC-120)

(1) Standard 5/8" Hitch Pin (#ATV-20PIN)

100% Made in USA

Constructed of 3/16" steel

Unlike all other competitors, our products are metal bead blasted before they are powder coated for the best possible finish prep.

Powder-coated black for supreme durability

Complete installation instructions included

All mounting hardware included

Roller fairlead and winch not included

Designed to work with the following winches:

Note: This mount requires a roller fairlead bracket that comes with most of the winches out there.

If your winch kit did not come with a fairlead bracket you will need the following:

For most winches with a 4-Hole 3.00" x 4.875" (STANDARD) KFI #100495

For most winches with a 4-Hole 3.00" x 6.600" (WIDE) KFI #100695

For WARN VRX or AXON winches with a 3.00" x 4.875" (STANDARD) KFI #101715

KFI: ST17 / S2000 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
KFI: AM-25 / AM-35 / AS-25 / AS-35
KFI: AS-50x / AS-50wx
WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce
WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S
WARN: AXON 35 / AXON 35-S / AXON 45RC
WARN: AXON 45 / AXON 45-S / AXON 55 / AXON 55-S
WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
WARN: Vantage 2000-3000lbs / ProVantage 2500-3500lbs
WARN: RT40 / XT40
WARN: Vantage 4000lbs / ProVantage 4500lbs
RAMSEY: ATV2500 / ATV3000
SUPERWINCH: Terra25 / Terra35 / Terra 45 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV
MILE MARKER: PE2.5 / PE3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
MASTER LOCK: 1500lbs #2955AT
Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
CYCLE COUNTRY: Work Power 1500 and 2500 / PowerMax 2500 and 3500
BADLAND: Apex 5500 Wide
BADLAND: 2-Hole Winches
BADLAND: Standard Winches
BADLAND: WIDE Winches
CHAMPION: 2-Hole Winches
CHAMPION: Standard Winches
CHAMPION: WIDE Winches
CHAMPION: 14001 and 14061
SMITTYBILT: XRC 2.0
Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
Listed models come with incorrect ATV roller fairleads.
SMITTYBILT: XRC 3.0 / XRC 4.0
XGEAR: X3000 / X4000
4-Hole Standard (3.00" x 4.875" bolt pattern)
KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
All with 3.00" x 4.875" bolt pattern mount-up.
All with 3.00" x 6.600" bolt pattern mount-up.
Traveller: 1078311
Traveller: 1078088 / 1078302
Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
Possibly many others with the below standard mounting patterns, call to confirm.
4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
2-Hole (3.10" with rollers that are 4.875" bolt pattern)

The KFI Ranger Multi-Mount Kit (Part Number: UTV-675) is designed to enhance your utility task vehicle's versatility by providing a reliable mounting solution. Crafted by KFI, this multi-mount kit allows you to securely attach various accessories, making it ideal for work or recreational purposes. Its durable construction ensures long-lasting performance in demanding environments, giving you confidence during every adventure or task.

The kit features a robust mounting system that is easy to install and compatible with a wide range of equipment. Whether you're attaching lights, storage containers, or other accessories, the KFI Ranger Multi-Mount Kit offers flexibility and stability, ensuring your gear stays secure during operation. Constructed from high-quality materials, this kit withstands harsh conditions, providing peace of mind regardless of terrain or weather.

Designed for ease of use, the UTV-675 is lightweight yet sturdy, with dimensions optimized for a seamless fit on your vehicle. Its thoughtful design minimizes installation time while maximizing durability and performance. The kit's versatile nature makes it a valuable addition to any UTV enthusiast or professional operator seeking a reliable mounting solution for various accessories.

Features:

• Durable multi-mount system for versatile equipment attachment

• Compatible with a wide range of accessories such as lights and storage containers

• Robust construction ensures long-lasting performance in harsh conditions

• Easy installation process with a secure fit on your utility task vehicle

• Designed by KFI for reliable and versatile use in recreational and work environments
