KFI Ranger Multi-Mount UTV-875 for Versatile Utility Vehicle Attachments

 This kit will allow you to mount your winch on the front or the rear of your Polaris Ranger using the stock rear 2" receiver and the supplied front 2" receiver.

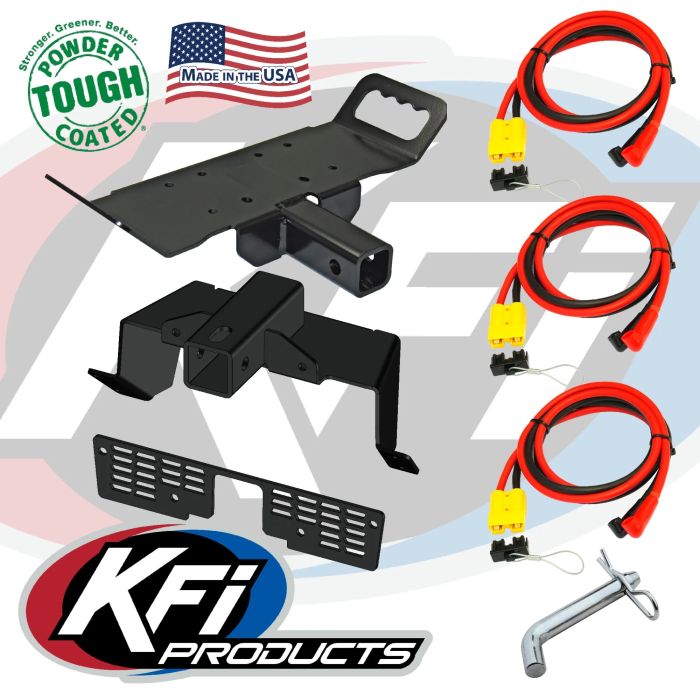

Includes:
(1) Front upper 2" receiver that mounts in the location shown in the picture (#100875)
(1) 2" Receiver Winch Mount (#100620)
(1) 20" Quick Connect that gets wired to your winch leads (#QC-20)
(1) 48" Quick Connect that goes from your winch contactor to the front of your Ranger (#QC-48)
(1) 120" Quick Connect that goes from your winch contactor to the rear of your Ranger (#QC-120)
(1) Standard 5/8" Hitch Pin (#ATV-20PIN)

• 100% Made in the USA
• Constructed of 3/16" steel
• Unlike all other competitors, our products are metal bead blasted before they are powder coated for the best possible finish prep.
• Powder coated black for supreme durability
• Complete installation instructions included
• All mounting hardware included
• Satisfaction guaranteed
• Roller fairlead and winch not included
• Designed to work with the following winches:

Note: This mount requires a roller fairlead bracket that comes with most of the winches out there.

If your winch kit did not come with a fairlead bracket you will need the following:

For most winches with a 4-Hole 3.00" x 4.875" (STANDARD) KFI #100495

For most winches with a 4-Hole 3.00" x 6.600" (WIDE) KFI #100695

For WARN VRX or AXON winches with a 3.00" x 4.875" (STANDARD) KFI #101715

KFI: ST17 / S2000 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
KFI: AM-25 / AM-35 / AS-25 / AS-35
KFI: AS-50x / AS-50wx
WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce
WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S
WARN: AXON 35 / AXON 35-S / AXON 45RC
WARN: AXON 45 / AXON 45-S / AXON 55 / AXON 55-S
WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
WARN: Vantage 2000-3000lbs / ProVantage 2500-3500lbs
WARN: RT40 / XT40
WARN: Vantage 4000lbs / ProVantage 4500lbs
RAMSEY: ATV2500 / ATV3000
SUPERWINCH: Terra25 / Terra35 / Terra 45 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV
MILE MARKER: PE2.5 / PE3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
MASTER LOCK: 1500lbs #2955AT
Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
CYCLE COUNTRY: Work Power 1500 and 2500 / PowerMax 2500 and 3500
BADLAND: Apex 5500 Wide
BADLAND: 2-Hole Winches
BADLAND: Standard Winches
BADLAND: WIDE Winches
CHAMPION: 2-Hole Winches
CHAMPION: Standard Winches
CHAMPION: WIDE Winches
CHAMPION: 14001 and 14061
SMITTYBILT: XRC 2.0
Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
Listed models come with incorrect ATV roller fairleads.
SMITTYBILT: XRC 3.0 / XRC 4.0
XGEAR: X3000 / X4000
4-Hole Standard (3.00" x 4.875" bolt pattern)
KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
All with 3.00" x 4.875" bolt pattern mount-up.
All with 3.00" x 6.600" bolt pattern mount-up.
TRAVELLER: 1078311
TRAVELLER: 1078088 / 1078302
Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
Possibly many others with the below standard mounting patterns, call to confirm.
4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
2-Hole (3.10" with rollers that are 4.875" bolt pattern)

The KFI Ranger Multi-Mount UTV-875 is designed to enhance the versatility of your utility vehicle by providing a robust and adaptable mounting solution. Crafted by KFI, this multi-mount system allows you to easily attach a range of accessories, improving your vehicle's functionality for work or recreational activities. Constructed with durable materials, it ensures long-lasting performance even under demanding conditions. Whether you're outfitting your UTV for hauling, lighting, or additional accessories, this multi-mount provides a reliable and flexible platform. Its compact design offers ease of installation and seamless integration with existing vehicle components, making it an essential upgrade for serious UTV users.

Features:

• Multi-mount design enables versatile attachment options for various accessories

• Constructed from durable materials for long-lasting performance

• Compact size allows for easy installation without adding unnecessary bulk

• Ideal for both work tasks and recreational activities on utility vehicles

• Designed by KFI to ensure compatibility and reliable performance
