This kit will allow you to mount your winch on the front or the rear of your Polaris Ranger or Gravely using the stock rear 2" receiver and the supplied front 2" receiver.

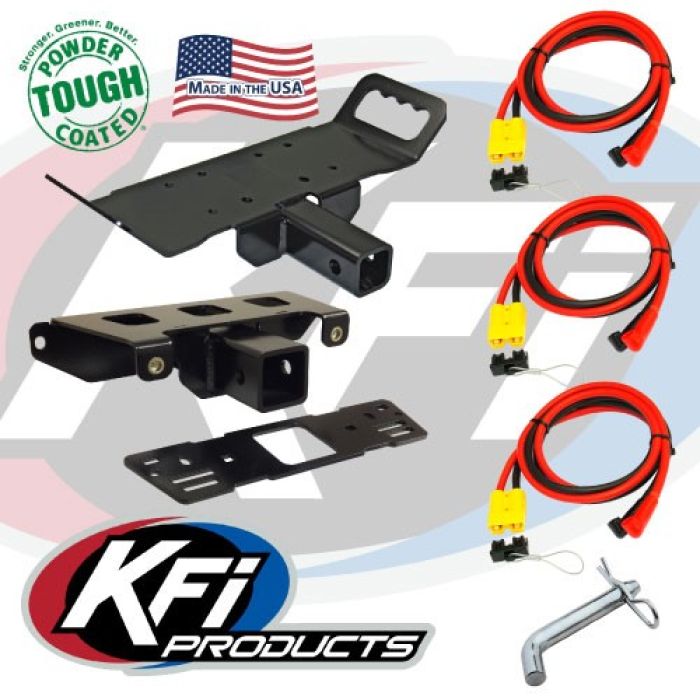

- Kit includes the following:
- (1) Front upper 2" receiver that mounts in the location shown in the picture (#101080)
- (1) 2" Receiver Winch Mount (#100620)
- (1) 20" Quick Connect that gets wired to your winch leads (#QC-20)
- (1) 48" Quick Connect that goes from your winch contactor to the front of your Ranger (#QC-48)
- (1) 120" Quick Connect that goes from your winch contactor to the rear of your Ranger (#QC-120)
- (1) Standard 5/8" Hitch Pin (#ATV-20PIN)
Specifications:
100% MADE IN USA
Constructed of 3/16" steel
Unlike all other competitors, our products are metal bead blasted before they are powder coated for the best possible finish prep.
Powder-coated black for supreme durability
Complete installation instructions included
All mounting hardware included
Satisfaction guaranteed
Roller fairlead and winch not included
Note: This mount requires a roller fairlead bracket that comes with most of the winches out there.
If your winch kit did not come with a fairlead bracket you will need the following:
For most winches with a 4-Hole 3.00" x 4.875" (STANDARD) KFI #100495
For most winches with a 4-Hole 3.00" x 6.600" (WIDE) KFI #100695
For WARN VRX or AXON winches with a 3.00" x 4.875" (STANDARD) KFI #101715
- COMPATIBLE WINCHES:
- KFI: ST17 / S2000 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
- KFI: AM-25 / AM-35 / AS-25 / AS-35
- KFI: AS-50x / AS-50wx
- WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce
- WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S
- WARN: AXON 35 / AXON 35-S / AXON 45RC
- WARN: AXON 45 / AXON 45-S / AXON 55 / AXON 55-S
- WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
- WARN: Vantage 2000-3000lbs / ProVantage 2500-3500lbs
- WARN: RT40 / XT40
- WARN: Vantage 4000lbs / ProVantage 4500lbs
- RAMSEY: ATV2500 / ATV3000
- SUPERWINCH: Terra25 / Terra35 / Terra 45 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV
- MILE MARKER: PE2.5 / PE3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
- MASTER LOCK: 1500lbs #2955AT
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
- CYCLE COUNTRY: Work Power 1500 and 2500 / PowerMax 2500 and 3500
- BADLAND: Apex 5500 Wide
- BADLAND: 2-Hole Winches
- BADLAND: Standard Winches
- BADLAND: WIDE Winches
- CHAMPION: 2-Hole Winches
- CHAMPION: Standard Winches
- CHAMPION: WIDE Winches
- CHAMPION: 14001 and 14061
- SMITTYBILT: XRC 2.0
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
- Listed models come with incorrect ATV roller fairleads.
- SMITTYBILT: XRC 3.0 / XRC 4.0
- XGEAR: X3000 / X4000
- 4-Hole Standard (3.00" x 4.875" bolt pattern)
- KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
- VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
- All with 3.00" x 4.875" bolt pattern mount-up.
- All with 3.00" x 6.600" bolt pattern mount-up.
- TRAVELLER: 1078311
- TRAVELLER: 1078088 / 1078302
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
- Possibly many others with the below standard mounting patterns, call to confirm.
- 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
- 4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
- 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
The KFI UTV-1080 Ranger/Gravely M-MT Yellow Maintenance Kit is designed to provide essential components for your utility vehicle's optimal performance. Crafted by KFI, this kit offers a comprehensive solution for maintenance needs, ensuring your equipment runs smoothly and efficiently. The kit's vibrant yellow color enhances visibility and adds a distinctive look to your vehicle. It is suitable for various applications, including Ranger and Gravely models, making it a versatile choice for maintenance tasks.
Constructed with high-quality materials, this kit features durable components that withstand demanding conditions. The design prioritizes ease of installation, allowing for quick and hassle-free setup. Whether you're performing routine maintenance or addressing specific repairs, the KFI UTV-1080 kit provides reliable parts that contribute to the longevity and performance of your vehicle. Regular use of this kit can help prevent breakdowns and extend the lifespan of your equipment, ensuring dependable operation in your outdoor or work environments.
Ideal for both professional and personal use, the KFI UTV-1080 Ranger/Gravely M-MT Yellow Maintenance Kit is a valuable addition to your maintenance arsenal. Its straightforward design and quality construction make it suitable for users seeking a dependable, ready-to-install solution for their utility vehicle maintenance needs.
Features:
- Designed specifically for Ranger and Gravely M-MT models
- Vibrant yellow color enhances visibility and aesthetic appeal
- High-quality durable components built for demanding conditions
- Easy installation process for quick maintenance
- Comprehensive kit for routine and repair maintenance tasks
