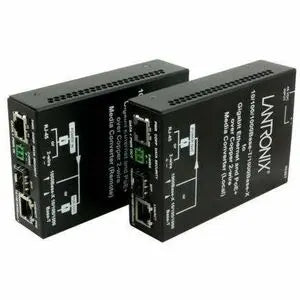

Lantronix Ethernet Over 2-Wire Extender with PoE+ - Model EO2PSE4052-111

Ethernet Over 2-Wire Extender With PoE+ 1 10/100/1000Base RJ-45/SFP Combo Port + 1 1000Base-T RJ-45 Port or 2-Wire Terminal Block

The Lantronix EO2PSE4052-111 Ethernet Over 2-Wire Extender with PoE+ is designed to modernize and extend your existing network infrastructure efficiently. It leverages your current 18-24 AWG unshielded twisted pair (UTP) cabling, such as CAT 5 or CAT 3, eliminating the need for costly new wiring while providing reliable network and power connectivity at speeds up to half a gigabit per second. This device is ideal for remote locations where upgrading cabling is impractical, allowing seamless integration of IP devices like security cameras, access points, and other PoE+ powered equipment.

The extender supports both IPv4 and IPv6 protocols, ensuring compatibility with current and future network standards. Its web browser configurability and plug-and-play installation make setup straightforward, reducing deployment time and technical complexity. Additionally, the device is managed via a single IP address, simplifying network management and monitoring. Advanced security features include 128-bit AES encryption over the 2-wire connection, safeguarding sensitive data transmission. It also offers features like auto-MDI/MDIX, field upgradeable firmware, Power over Ethernet Plus (PoE+), and a remote power connection for remote device power management.

Designed with versatility in mind, the Lantronix EO2PSE4052-111 supports fast Ethernet speeds over extended distances—up to approximately 1800 feet depending on cable gauge—making it suitable for large-scale deployments. Its proprietary SELV classification prevents unintended power delivery to non-Transition Networks devices, ensuring safety and compliance. The device includes power monitoring, auto power reset (APR), power-saving modes, and a combination of copper and fiber ports, providing flexible connectivity options for various network configurations. Backed by a five-year limited warranty, this network extender is a cost-effective solution to extend and secure your Ethernet infrastructure without replacing existing wiring.

Features:

• Preserves investment in existing UTP or twisted 2-wire infrastructure

• Supports DHCP, DNS, and NTP client protocols

• Provides connection for optional power on remote devices

• 128-bit AES encryption over 2-wire for secure data transmission

• Supports IPv4 and IPv6 protocols

• Manageable through a single IP address

• Auto-MDI/MDIX for automatic crossover detection

• Field upgradeable firmware for future enhancements

• Configurable via web browser

• Plug-and-play installation for quick deployment

• Power monitoring capabilities

• Auto Power Reset (APR) and power-saving modes

• Proprietary SELV classification prevents unintended power delivery

• Fast Ethernet speeds over approximately 1800 feet (550 meters) depending on wire gauge

• Half-Gigabit Ethernet speeds over UTP at distances up to 330 feet (100 meters)

• IEEE 802.3af/at compliant remote PoE+ port for powering cameras and remote devices

• Full PoE+ at 335-1500 feet (102-457 meters) over a single pair or 1500-6800 feet (457-2073 meters) over multiple pairs, dependent on cable type

• Copper or fiber combo Ethernet port
