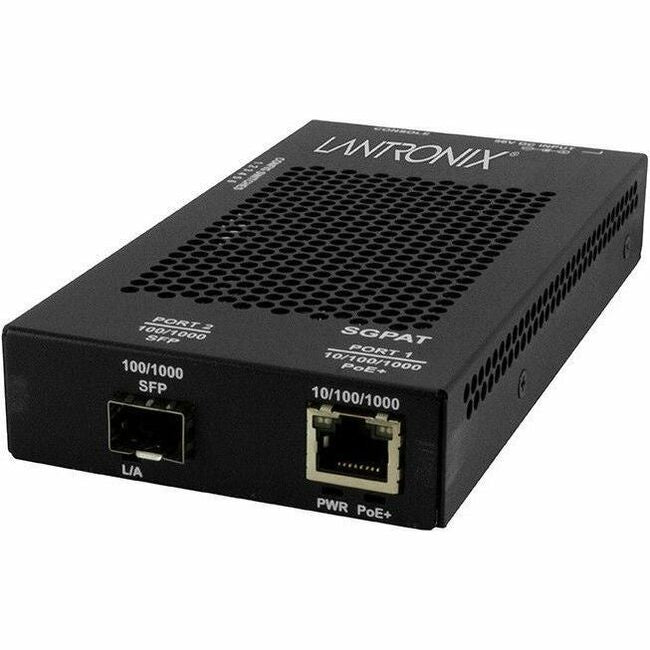

LANTRONIX IOT SGPAT1040-105 PoE+ Media Converter with Fiber Support

Transition Networks SGPAT1040-105 Transceiver/Media Converter

The LANTRONIX IOT SGPAT1040-105 is a versatile standalone media converter designed for efficient network integration. It seamlessly connects 10/100/1000Base-T copper Ethernet devices to fiber optic networks, supporting various fiber types including fixed SC, LC, and SFP modules. This converter is ideal for expanding network reach while providing reliable PoE+ power delivery to connected devices, making it suitable for both enterprise and industrial environments. Its compact design allows installation on a wall, DIN rail, or tabletop, and it comes with an external AC/DC power supply for easy setup and operation. The device supports full 30 Watts of power per twisted pair port, ensuring sufficient power for PoE+ devices like IP cameras, wireless access points, and VoIP phones. It features multiple configurations, including 2-port, 3-port, and 4-port versions, enabling flexible deployment options. The 3-port version includes one PoE+ RJ-45 port and two open SFP slots, allowing users to configure it as a switch or as a media converter with redundant fiber links for increased reliability. The 4-port variant provides two PoE+ ports and two SFP slots, capable of functioning as a switch or as two independent PoE media converters within a single housing. Support for Active Link Pass Through (ALPT) and Remote Fault Detection enhances network stability by automatically detecting link failures and resetting power to affected devices. The device also offers a 50-millisecond fail-over time when using redundant fiber links, minimizing network downtime. Compliance with environmental standards such as the Waste Electrical and Electronic Equipment Directive (WEEE) underscores its eco-friendly design. The converter is constructed with high-quality materials for durability and features a lifetime limited warranty, providing peace of mind for enterprise deployments. Whether used as a standalone unit or integrated into larger network architectures, the LANTRONIX IOT SGPAT1040-105 ensures reliable, power-efficient, and flexible fiber-to-Ethernet connectivity.

Features:

• Wall mount, DIN Rail, or table top installation options

• External AC/DC power supply included for easy setup

• 2-port 10/100/1000 copper to fiber media conversion with IEEE 802.3at PoE+ on the copper port

• Supports full 30 Watts of power delivery to each twisted pair port for PoE+ devices

• Various fiber versions available supporting fixed SC, LC, and open SFP modules

• 3-port version offers (1) RJ-45 PoE+ port and (2) open SFP slots, configurable as a switch or media converter with redundant fiber links

• Redundant fiber support with 50-millisecond fail-over for high availability

• 4-port version provides (2) RJ-45 PoE+ ports and (2) open SFP slots, adaptable as a switch or two independent PoE media converters

• SFP slots compatible with 100Base-FX, 1000Base-X, or SGMII-based MSA compliant modules

• Supports Auto-Negotiation, Auto-MDI/MDIX, Active Link Pass Through (ALPT), and Remote Fault Detection for robust network management
