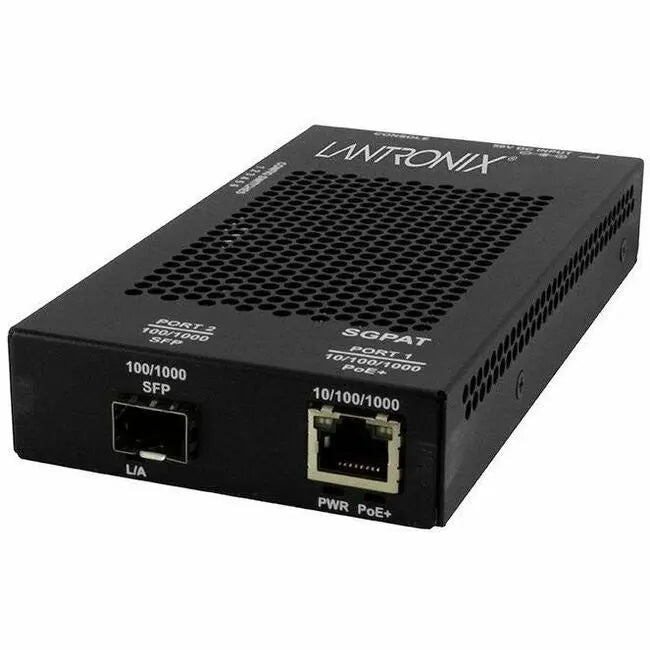

Lantronix SGPAT1040-105 PoE+ Gigabit Ethernet Media Converter with Fiber Support

Lantronix SGPAT1040-105 Transceiver/Media Converter

The Lantronix SGPAT1040-105 is a versatile stand-alone media converter designed to seamlessly connect different network types while providing Power over Ethernet Plus (PoE+) capabilities. It features a 10/100/1000Base-T copper port with PoE+ support, capable of delivering up to 30 Watts of power to powered devices such as IP cameras, wireless access points, and VoIP phones. The device converts Ethernet signals over fiber optic links, supporting multiple fiber types including fixed SC, LC, and open SFP modules, enabling flexible deployment options for various network environments.
Constructed for reliability and ease of installation, the SGPAT1040-105 can be mounted on a wall, DIN rail, or placed on a tabletop, and comes with an external AC/DC power supply tailored for North American outlets. Its 2-pound weight and compact form factor make it suitable for space-constrained settings. The converter includes features such as active link pass through, remote fault detection, and support for full 30 Watts of PoE+ power on each copper port, ensuring power and data delivery are maintained even during link failures or network disruptions.
Advanced features like redundancy with fiber support enable a fail-over time of just 50 milliseconds, ensuring network continuity. The device can be configured as a switch or as two independent media converters within the same enclosure, offering flexible network management. Its SFP slots support 100Base-FX, 1000Base-X, and SGMII modules, allowing for tailored fiber connections to fit specific network needs. With support for auto-negotiation, auto-MDI/MDIX, and active link pass-through, the Lantronix SGPAT1040-105 provides a robust, efficient solution for expanding and powering Ethernet networks in commercial and industrial settings.

Features:

• Wall mount, DIN Rail, or table top installation options

• External AC/DC power supply included for North American use

• 2-port 10/100/1000 copper to fiber media conversion with IEEE 802.3at PoE+ support on the copper port

• Supports delivering full 30 Watts of power to each twisted pair port

• Multiple fiber versions available supporting fixed SC, LC, and open SFP modules

• 3-port version includes 1 PoE+ RJ-45 port and 2 open SFP slots, configurable as a switch or a media converter with redundant fiber links

• Supports a 50ms fail-over time when redundant fiber is enabled

• 4-port version offers 2 PoE+ RJ-45 ports and 2 open SFP slots, configurable as a switch or two independent PoE+ media converters

• SFP slots are compatible with 100Base-FX, 1000Base-X, and SGMII modules (MSA compliant)

• Supports Auto-Negotiation, Auto-MDI/MDIX, Active Link Pass Through (ALPT), and Remote Fault Detection
