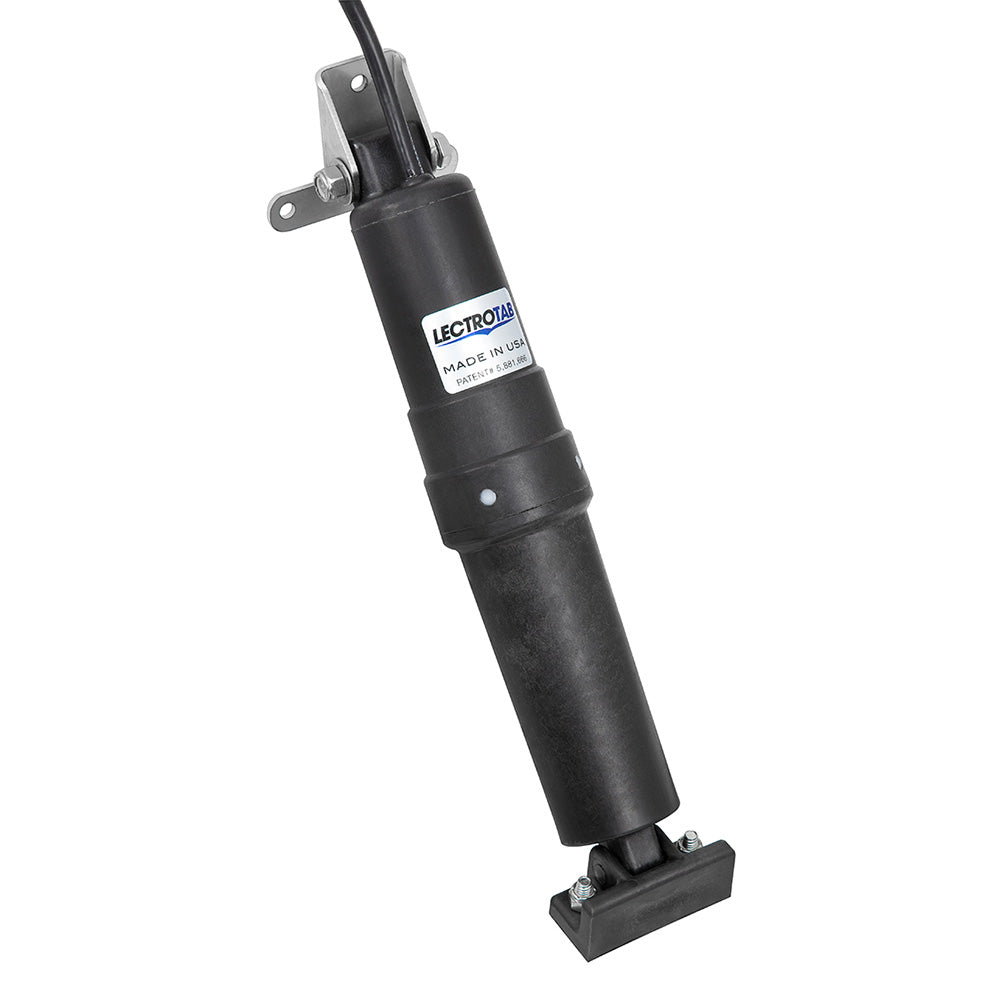

Lectrotab 12 V Heavy Duty Tab Actuator with 6' Cable - High Force Marine Trim Tab Solution

12 V Heavy Duty Tab Actuator - 6 Cable

Lectrotab meets the needs of boats operating at high speeds or in rough conditions by offering its heavy duty trim tab actuator. The heavy duty actuator features a reinforced upper mounting boss and a 12 gauge stainless steel upper bracket. Lectrotab heavy duty trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance free design.

The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates a standard or low profile transom mounting bracket.

Features:

• Stainless Steel upper mounting bracket
• Reinforced actuator upper mounting boss
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• All actuators fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25 (57 mm)
• Actuator Cable Length - 6 (1.8 M)
• Actuator Vertical Height - 11.875 (302 mm)
• Upper Mounting Bracket - Stainless Steel - 12 gauge
• Lower Mounting Bracket - Standard

*Sold as an Individual

The Lectrotab 12 V Heavy Duty Tab Actuator with 6-foot cable is designed for demanding marine applications where reliable, maintenance-free performance is essential. Built with a reinforced upper mounting boss and a stainless steel upper bracket, this actuator is engineered to withstand high speeds and rough conditions on boats. Its corrosion-resistant non-metallic housing ensures durability against water, salt, and sun exposure while maintaining precise tab positioning. The self-contained design eliminates hydraulic oil leaks, providing a cleaner and more dependable operation for your vessel. Installation is straightforward, as the actuator features a standard or low-profile transom mounting bracket, and no internal components need to be placed inside the boat. This unit offers maximum lift force, making it suitable for larger or more challenging trim tab setups.

Designed for quiet operation, the Lectrotab heavy-duty trim tab actuator uses internal pressure equalization and an internal brake system to prevent unwanted movement during underway or backing down. Each actuator is load-tested to withstand forces up to 1,000 pounds, ensuring reliable performance under demanding conditions. The stainless steel upper mounting bracket and reinforced upper boss contribute to the actuator's strength and longevity, while the sealed housing prevents barnacle growth or debris from damaging critical components. With a stroke length of 2.25 inches and a voltage requirement of 12 volts DC, this actuator provides precise control for optimal boat handling and lift. The 6-foot cable allows flexible installation options, making it suitable for various transom configurations. This product is sold individually, and it is recommended to consult the manufacturer for any questions or support, as returns are handled directly through the brand.

For detailed installation and maintenance instructions, refer to the official owners manual available online. The Lectrotab part number A-BK-20 ensures compatibility with a range of marine trim tab systems. Built for durability and performance, this heavy-duty actuator is an ideal choice for boat owners seeking a robust, corrosion-proof, and quiet trim tab solution that delivers maximum lift and accurate positioning in challenging marine environments.

Features:

• Stainless Steel upper mounting bracket for corrosion resistance

• Reinforced actuator upper mounting boss for added strength

• Upper ram seal location protected from fouling or barnacle growth

• Internal pressure equalization system for smooth operation

• Internal brake system prevents unwanted tab movement

• Quiet operation for enhanced onboard comfort

• Load tested to push up to 1,000 pounds of force

• Non-metallic external housing resists corrosion and deterioration
