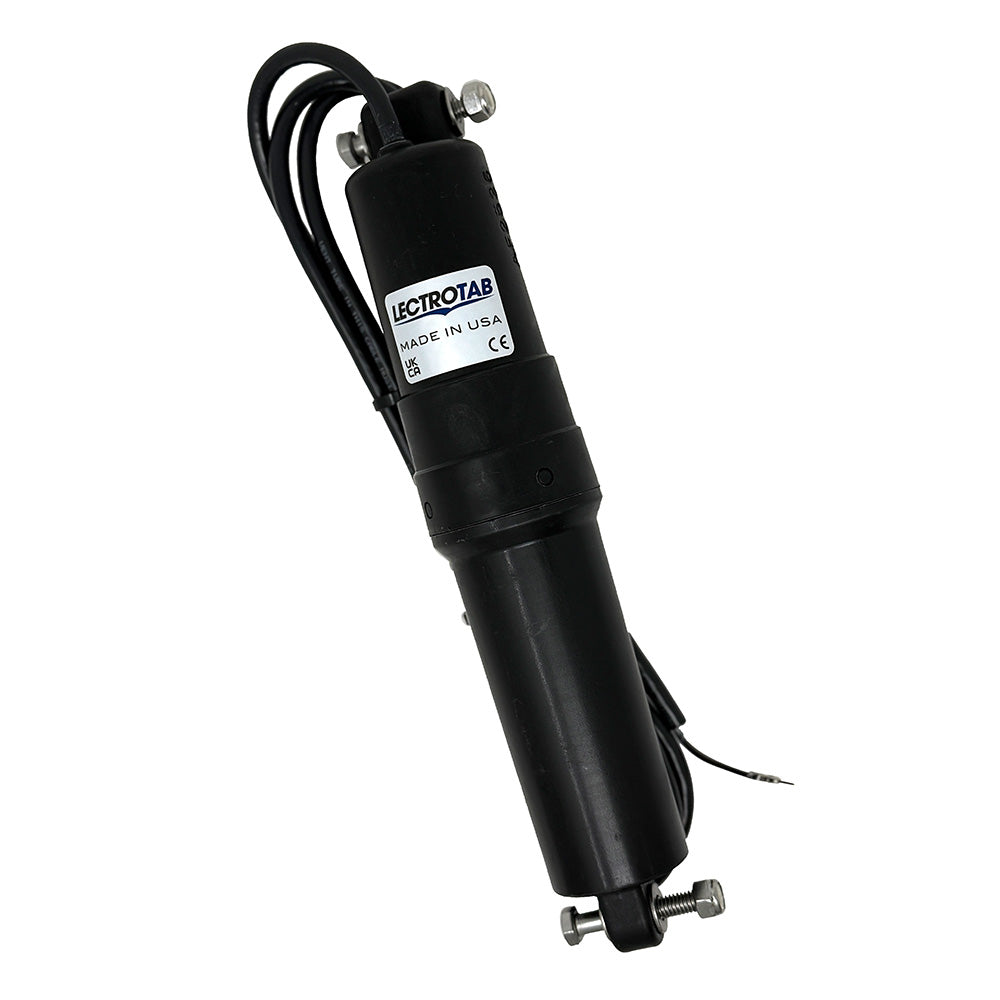

Lectrotab 12V Heavy Duty Trim Tab Actuator with 23 ft Cable - Marine Boat Control

12 V Heavy Duty Tab Actuator - 23 Cable

Lectrotab meets the needs of boats operating at high speeds or in rough conditions by offering its heavy duty trim tab actuator. The heavy duty actuator features a reinforced upper mounting boss and a 12 gauge stainless steel upper bracket. Lectrotab heavy duty trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance free design.

The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates a standard or low profile transom mounting bracket.

Features:

• Reinforced actuator upper mounting boss
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• All actuators fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25 (57 mm)
• Actuator Cable Length - 23 (7 M)
• Actuator Vertical Height - 11.875 (302 mm)
• Upper and Lower Mounting Bracket - NOT INCLUDED

*Sold as an Individual

The Lectrotab 12V Heavy Duty Trim Tab Actuator, part number A-BK-43, is designed for demanding marine applications where reliable performance at high speeds and rough conditions is essential. This robust actuator features a reinforced upper mounting boss and a stainless steel upper bracket to withstand harsh environments. Its precision-engineered, maintenance-free, non-hydraulic design ensures quiet operation and consistent, accurate tab positioning for optimal boat handling and stability. The sealed non-metallic housing prevents corrosion and deterioration from sun exposure or submerged conditions, providing long-lasting durability without the risk of hydraulic fluid leaks. Installation is straightforward as the unit is fully self-contained, requiring no internal components aside from the actuator itself, and it includes a standard or low profile transom mounting bracket for flexibility in mounting options. The unit is capable of exerting up to 1000 lbs of force, with internal pressure equalization and an internal brake system that prevents unwanted movement during operation or backing down. The actuator's 2.25-inch stroke length and 23-foot cable length make it suitable for a variety of boat sizes and configurations, ensuring precise control over trim tabs to improve stability and performance. Designed for demanding marine environments, this heavy-duty actuator is perfect for boat owners seeking a reliable, corrosion-resistant, and maintenance-free trim tab solution that enhances vessel control and safety. For detailed installation instructions, refer to the manufacturer's manual linked in the product documentation.

Features:

• Reinforced actuator upper mounting boss for added strength

• Upper ram seal location protected from fouling and barnacle growth

• Utilizes internal pressure equalization system for consistent operation

• Internal brake system prevents unwanted tab movement when underway or backing down

• Operates quietly for unobtrusive performance

• Loads tested to push up to 1000 lbs of force for heavy-duty applications

• Non-metallic external structure resists corrosion and deterioration from sun and water exposure
