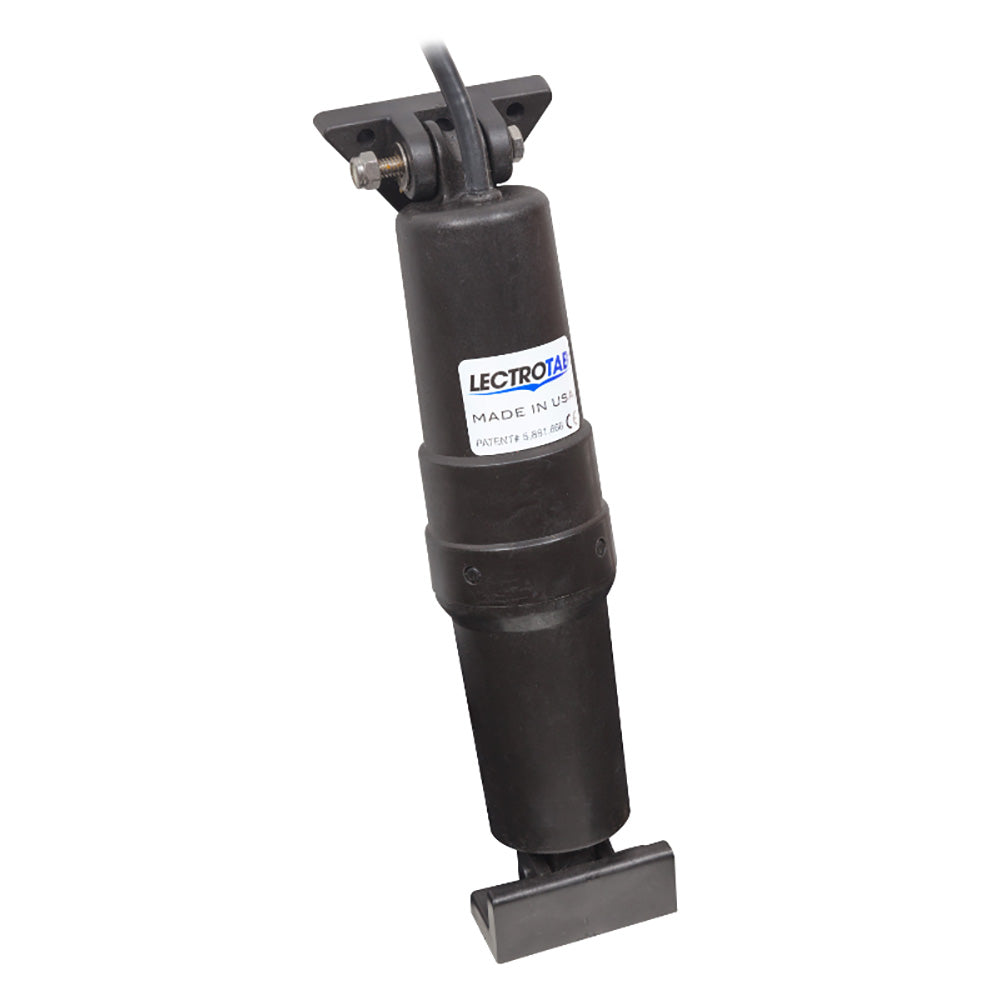

Lectrotab 12V Short Trim Tab Actuator with 23' Cable for Limited Height Applications

12 V Short Trim Tab Actuator - 23' Cable

Ideal for limited vertical height applications such as swim platforms, Lectrotab short trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.

The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The short actuator incorporates either a standard or low profile transom mounting bracket.

Features:

• Short actuator perfect for swim platform or limited vertical height applications
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• All actuators fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 10" (254 mm)
• Upper Mounting Bracket - Low Profile
• Lower Mounting Bracket - Standard

*Sold as an Individual

The Lectrotab 12V Short Trim Tab Actuator (Part Number: S-BK-16) is designed for boats requiring precise trim control in tight spaces, such as swim platforms and other limited vertical height areas. This non-hydraulic, maintenance-free actuator features a corrosion-resistant non-metallic housing that ensures durability in harsh marine environments. Its quiet operation and accurate positioning make it an ideal choice for boat owners seeking reliable performance without the complexity of hydraulic systems. The unit is fully self-contained, simplifying installation by eliminating the need for internal components within the boat and preventing oil leaks common to hydraulic models.

Features:

• Short actuator ideal for swim platform or limited vertical height applications

• Upper ram seal location protected from damage due to fouled rams or barnacles

• Internal pressure equalization system for consistent performance

• Internal brake system prevents unwanted tab movement during operation or backing down

• Operates quietly for unobtrusive boat performance

• Load tested to push up to 1000 lbs of force for reliable lift capacity

• Non-metallic external structure resists corrosion and deterioration from sun and water exposure
