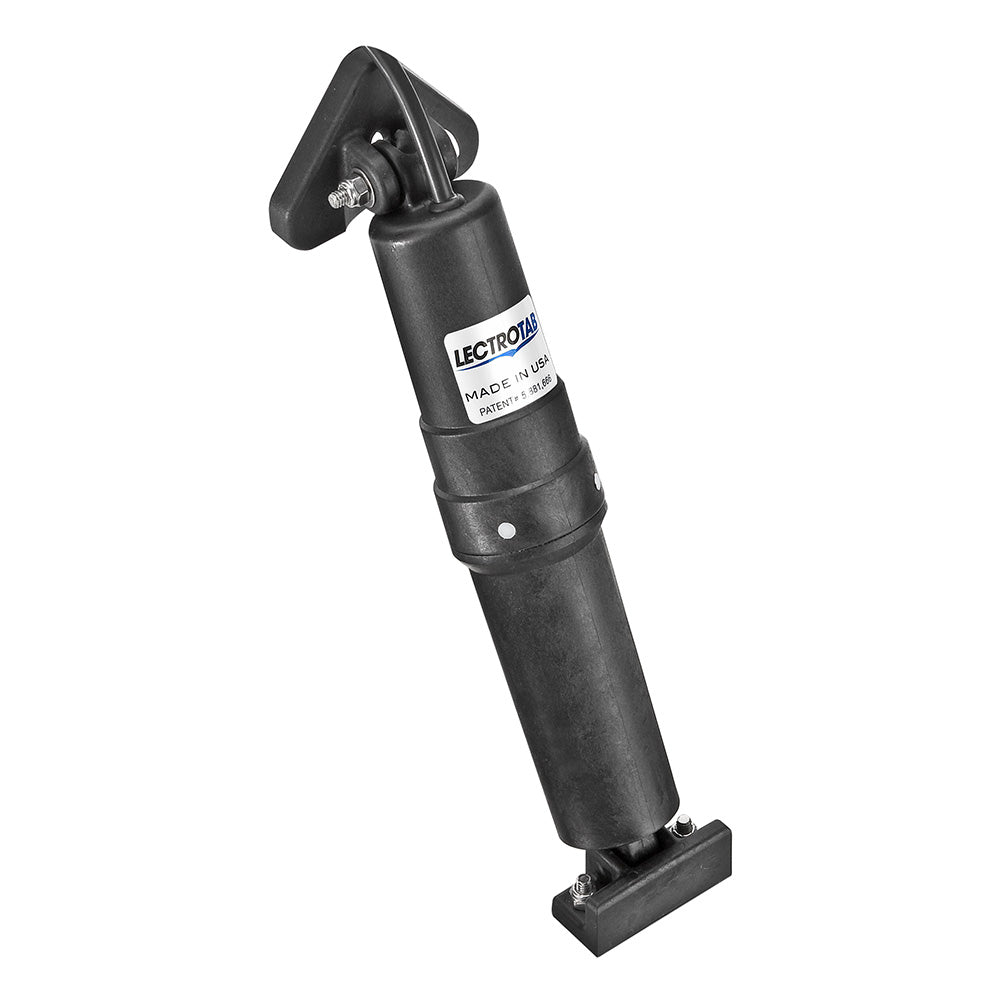

Lectrotab 12V Trim Tab Actuator with 23' Cable for Precise Boat Control

12 V Trim Tab Actuator - 23' Cable

Lectrotab trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing.

No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates a transom mounting bracket.

Features:

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Upgrades to most popular hydraulic and electromechanical systems
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• All actuators fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Upper Mounting Bracket - Standard
• Lower Mounting Bracket - Standard

*Sold as an Individual

The Lectrotab 12V Trim Tab Actuator with a 23-foot cable is a reliable and maintenance-free solution designed for optimal boat trim management. Engineered with precision, this non-hydraulic actuator operates quietly while providing maximum lift force, ensuring smooth and accurate tab positioning. Its corrosion-resistant, non-metallic housing makes it suitable for harsh marine environments, preventing deterioration from sun exposure and water contact. The unit is fully self-contained, requiring no internal installation of components inside the boat, simplifying the installation process and reducing potential leak points associated with hydraulic systems. The included transom mounting bracket offers a secure fit, making it an ideal upgrade for most popular hydraulic and electromechanical trim tab systems. This actuator is capable of pushing up to 1000 pounds of force, thanks to its robust internal load testing. It features an internal pressure equalization system that maintains consistent operation and an internal brake system that prevents unwanted movement during navigation or backing down, enhancing safety and control. The design incorporates an upper ram seal that resists damage from fouling or barnacle growth, contributing to long-term reliability. Suitable for a wide range of marine vessels, the Lectrotab 12V actuator combines durability, quiet operation, and ease of installation to improve boat handling and stability. For detailed installation instructions, please refer to the manufacturer’s manual available online. Please note that this product is sold individually and may not be returned to the point of purchase, so contact Lectrotab directly for any issues or concerns.

Features:

• Upper ram seal location prevents damage from fouling or barnacles

• Utilizes internal pressure equalization system for consistent performance

• Compatible with most hydraulic and electromechanical trim tab systems

• Internal brake system prevents unwanted tab movement during operation

• Operates quietly for a smooth boating experience

• Fully load tested to withstand 1000 lbs of force

• Corrosion-proof non-metallic external structure resistant to sun and water damage
