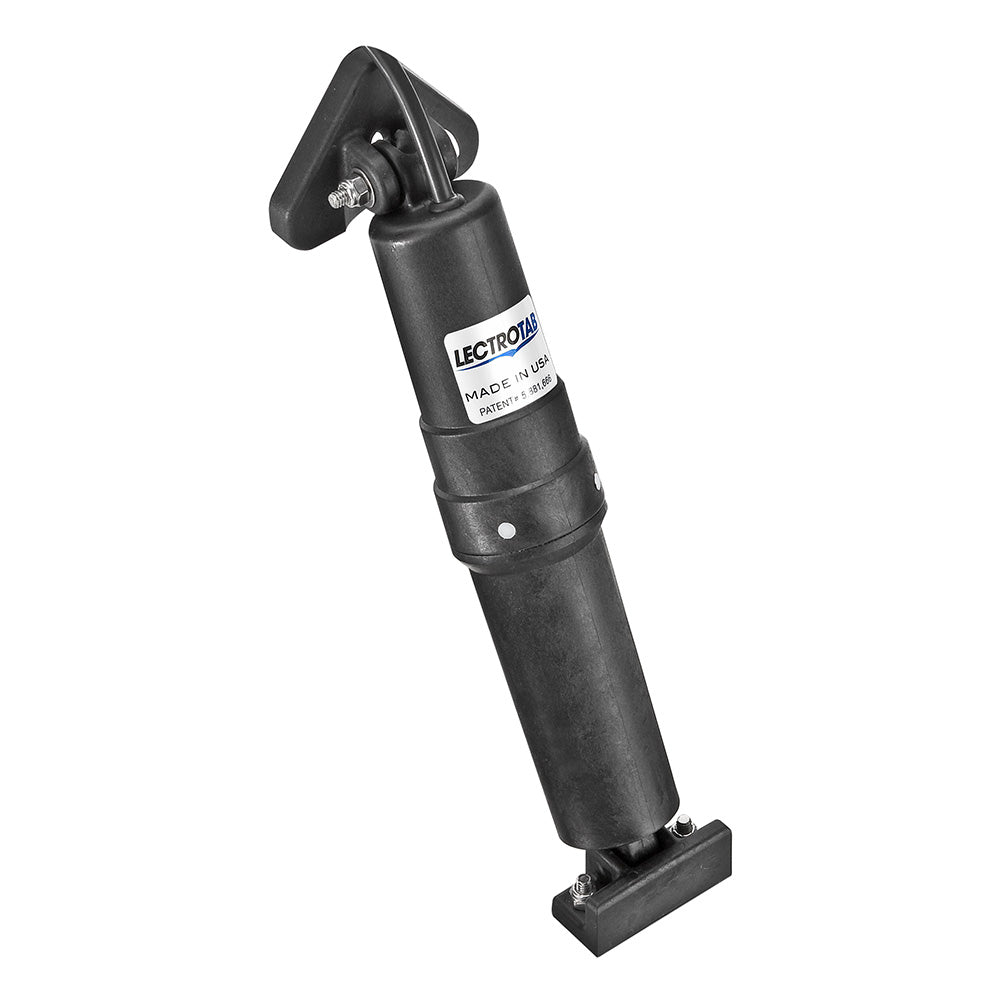

Lectrotab 12V Trim Tab Actuator with 6' Cable - Corrosion-Free, Quiet Operation, and Easy Installation

12 V Trim Tab Actuator - 6' Cable

Lectrotab trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing.

No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates a transom mounting bracket.

Features:

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Upgrades to most popular hydraulic and electromechanical systems
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• All actuators fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 6' (1.8 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Upper Mounting Bracket - Standard
• Lower Mounting Bracket - Standard

*Sold as an Individual

The Lectrotab 12V Trim Tab Actuator (Part Number: A-BK) is a precision-engineered solution designed for reliable and maintenance-free operation on boats. Featuring a non-hydraulic, corrosion-resistant exterior, this actuator ensures smooth and accurate trim tab positioning without the risk of oil leaks associated with hydraulic systems. Its self-contained design simplifies installation by eliminating the need for internal components inside the boat and includes a transom mounting bracket for secure attachment. This unit is built to withstand harsh marine environments and is fully load-tested to provide up to 1000 pounds of force, making it suitable for a wide range of vessel sizes and configurations.
