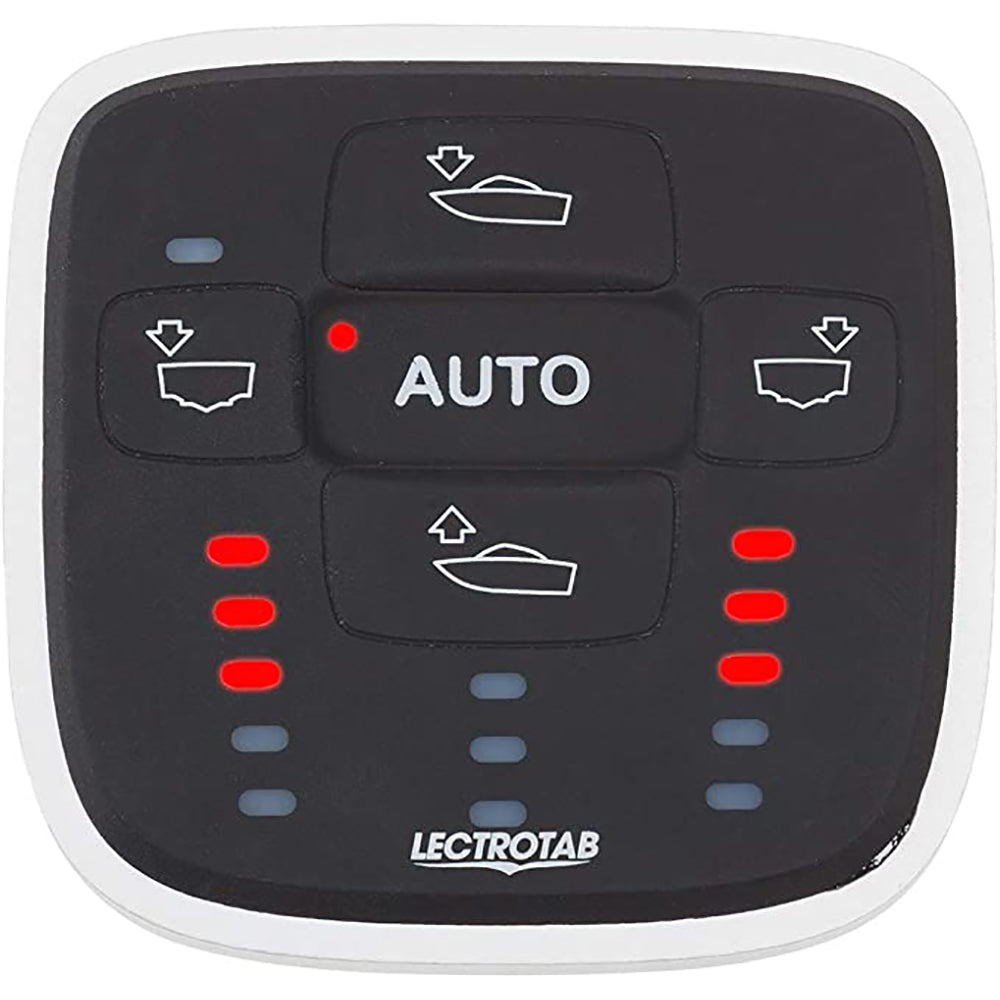

Lectrotab Automatic Leveling Control with Single Actuator for Boats

Automatic Leveling Control - Single Actuator

As wind shifts, water conditions change or passengers move about, the Automatic Leveling Control (ALC) will automatically adjust your trim tabs to maintain a level boat for a more comfortable and enjoyable ride.

The ALC automatically corrects the roll from side to side and pitch from fore to aft to enhance your boating experience and improve your fuel economy.

Features:

• Microprocessor based automatic leveling trim tab control with LED tab position indicators
• Controls roll and pitch automatically
• Internal GPS - no GPS antenna or network required
• Automatically adapts to varying sea conditions
• Completely sealed and waterproof (IP68)
• UV protected - will not deteriorate in sunlight
• Prevents automatic corrections while turning
• Designed for planing and semi displacement hulls larger than 20ft
• Actuators connect directly to ALC-1 display panel (no external power module box required)
• Automatically dims LED tab position indicators in darkness and brightens in sunlight
• Automatically retracts trim tabs when boat is off plane or using optional key switch connection

Technical Specifications:

• Display Color - Black
• Actuators per Tab Plate - One (1)
• Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)
• Mounting Hole Cutout - 2" (50 mm)
• Operating Voltage - 12 or 24 V

*Sold as an Individual

The Lectrotab ALC-1 Automatic Leveling Control with single actuator is designed to enhance your boating experience by maintaining a level and stable vessel during your journey. Ideal for planing and semi-displacement hulls larger than 20 feet, this system automatically adjusts your trim tabs in response to changing wind, water conditions, or passenger movement, ensuring a smoother and more comfortable ride. It also contributes to improved fuel efficiency by reducing unnecessary drag caused by boat roll and pitch fluctuations. The system's microprocessor-based control features LED indicators for tab position, which automatically dim in darkness and brighten in sunlight for optimal visibility. Additionally, it includes an internal GPS that requires no external antenna or network, allowing seamless operation in diverse environments. The entire unit is sealed to IP68 standards, making it waterproof and UV protected to withstand sun exposure without deterioration. The actuators connect directly to the control panel, eliminating the need for external power modules, simplifying installation and maintenance. When the boat is off plane or using an optional key switch, the system automatically retracts the trim tabs to prevent unnecessary adjustments. With its robust design and intelligent features, the Lectrotab ALC-1 offers a reliable solution for boaters seeking automatic stabilization and improved handling. This product is sold individually and comes with a comprehensive owner's manual, available online for reference. Whether you are upgrading an existing system or installing a new one, the Lectrotab ALC-1 ensures your boat remains level, providing a safer and more enjoyable boating experience.

Features:

• Microprocessor-based automatic leveling trim tab control with LED tab position indicators

• Automatically controls roll and pitch for stability

• Internal GPS integrated—no external antenna or network required

• Automatically adapts to changing sea conditions

• Sealed and waterproof design (IP68) for durability

• UV protected to resist sun damage

• Prevents adjustments during boat turns

• Compatible with planing and semi-displacement hulls larger than 20 feet

• Actuators connect directly to the ALC-1 display panel, no external power module needed

• LED indicators automatically dim in darkness and brighten in sunlight

• Automatically retracts trim tabs when boat is off plane or via optional key switch
