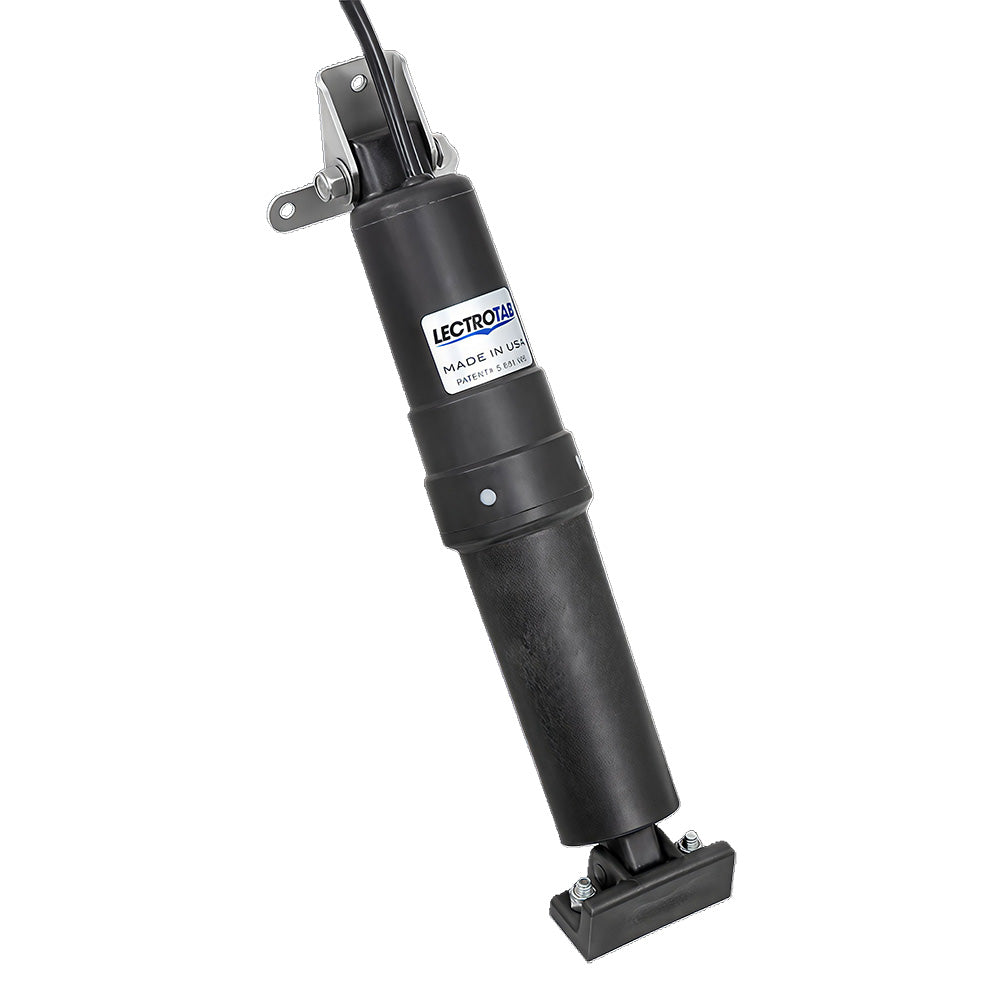

Lectrotab Heavy-Duty 12V Trim Tab Actuator with 26-Inch Cable, Part A-BK-67

Heavy-Duty Tab Actuator - 12V - 26 Cable

Lectrotab meets the needs of boats operating at high speeds or in rough conditions by offering its heavy-duty trim tab actuator. The heavy-duty actuator features a reinforced upper mounting boss and a 12-gauge stainless steel upper bracket. Lectrotab heavy-duty trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance-free design.

The unit is corrosion-free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic, permanently sealed housing. No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates a standard or low-profile transom mounting bracket.

Features:

• Stainless Steel upper mounting bracket
• Reinforced actuator upper mounting boss
• The upper ram seal location cannot be damaged due to a fouled ram or barnacle growth
• Utilizes an internal pressure equalization system
• Internal brake system prevents unwanted tab movement when underway or backing down
• Quiet operation
• All actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure that cannot corrode and will not deteriorate in the sun or underwater

Specifications:

• Actuator DC Voltage - 12V
• Actuator Stroke Length - 2.25 (57 mm)
• Actuator Cable Length - 26
• Actuator Vertical Height - 11.875 (302 mm)
• Upper Mounting Bracket - Stainless Steel - 12 gauge
• Lower Mounting Bracket - Standard

*Sold as an Individual

The Lectrotab Heavy-Duty 12V Trim Tab Actuator with a 26-inch cable is designed for demanding marine applications where high performance and durability are essential. Featuring a reinforced upper mounting boss and a stainless steel upper bracket, this actuator is built to withstand rough conditions and high speeds. Its precision-engineered, maintenance-free, non-hydraulic design ensures quiet operation and reliable performance without the risk of hydraulic leaks. The corrosion-resistant external housing and sealed construction make it suitable for prolonged exposure to sun, saltwater, and underwater environments. The unit is fully load tested to exert up to 1,000 pounds of force, providing maximum lift force for optimal boat control and handling. Installation is straightforward, as the actuator comes with a standard or low-profile transom mounting bracket, and it requires no internal components inside the boat, simplifying maintenance and reducing potential leak points. The internal pressure equalization system and internal brake prevent unwanted movement during operation or backing down, ensuring precise control of the trim tabs. This heavy-duty actuator is an ideal choice for boaters seeking durable, high-performance trim tab operation with minimal maintenance and long-lasting corrosion resistance.

Features:

• Stainless steel upper mounting bracket for durability

• Reinforced actuator upper mounting boss enhances strength

• Fouled ram or barnacle growth protection with sealed upper ram seal

• Internal pressure equalization system for consistent operation

• Internal brake system prevents unwanted tab movement during operation

• Quiet operation for smooth adjustments

• Load tested to handle up to 1,000 lbs of force

• Corrosion-free non-metallic external housing resistant to sun and water damage

• Includes standard or low-profile transom mounting bracket for versatile installation
