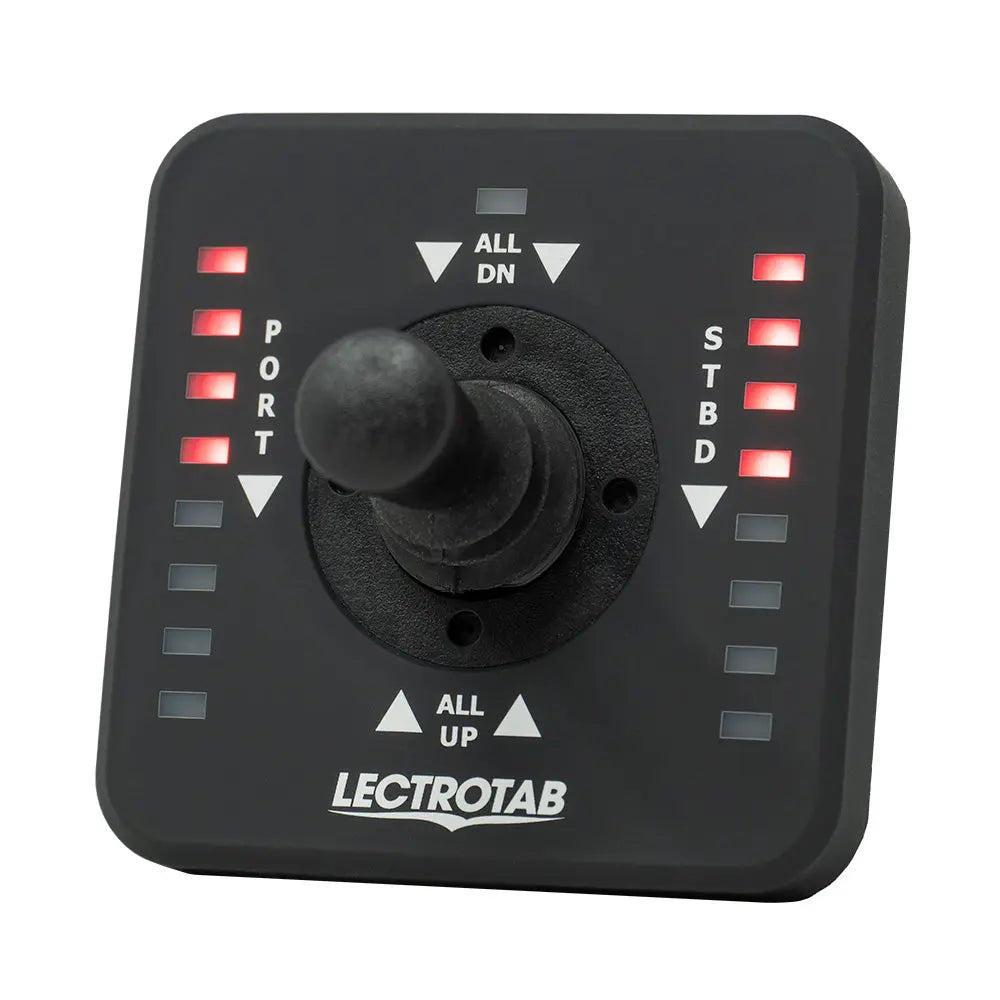

Lectrotab JLC-11 Joystick LED Trim Tab Control for Boats

Joystick LED Trim Tab Control

Lectrotabs Joystick LED control incorporates features requested by boat owners to provide user-friendly control for a more enjoyable boating experience.

Features:

• Single Joystick control
• NMEA 2000 compatible
• LED display of each trim tab position
• Microprocessor-based trim tab control with LED tab position indicators
• NMEA 2000 compatible with JLC-NMEA adapter
• Move both tabs up or down simultaneously with a single motion
• Dual station ready just add a second JLC-11 and JR-* cable (sold separately)
• Automatic return to last tab position if the ignition key is turned off and back on again
• Completely sealed, completely waterproof, and will not deteriorate in sunlight
• Automatic tab retraction and calibration with key or accessory switch off
• Easy upgrade from any of our Lectrotab controls
• No external power module required
• LED tab position indicators dim automatically in darkness and brighten in sunlight
• Single or Dual Actuator per tab
• Operates on 12 or 24 VDC systems

Specifications:

• Display Color: Black
• Number of Stations/Actuators: Single or Dual Station/1 or 2 Actuator/tab
• Overall Width: 3.0"/77mm
• Overall Height/Thickness: 3.0" (77mm)/2.0" (50mm)
• Mounting Hole Cutout (Diameter): 2.625"/66.7mm
• DC Voltage: 12/24
• Fuse Size Power Input (1 Actuator Per Tab): 12 VDC-15 or 20 AMPs 24 VDC = 10 AMPs
• Fuse Size Aux. (Must Connect): 1 to 2 AMPs

Enhance your boating experience with the Lectrotab JLC-11 joystick LED trim tab control, designed for ease of use and reliable performance. This microprocessor-based system allows boat owners to effortlessly adjust trim tabs with a single joystick, providing precise control and improved vessel handling. The LED display clearly indicates each trim tab position, ensuring you always know your settings even in challenging lighting conditions. Compatible with NMEA 2000 networks through the JLC-NMEA adapter, this control integrates seamlessly with your existing marine electronics. The system supports simultaneous movement of both trim tabs with just one motion, simplifying adjustments and saving time during navigation or docking.

Constructed to withstand harsh marine environments, the JLC-11 is fully sealed, waterproof, and resistant to sunlight deterioration. It features automatic return to the last used position upon restarting the ignition, offering convenience and consistency. The control also performs automatic calibration and retraction of tabs when the key or an accessory switch is turned off, ensuring safety and proper operation. Upgrading from other Lectrotab controls is straightforward, and no external power module is necessary, reducing installation complexity. The LED indicators automatically adjust brightness based on ambient lighting, providing clear visibility day or night.

Designed for versatility, the JLC-11 supports either single or dual actuators per tab and operates on 12 or 24 volts DC systems. Its compact dimensions and mounting hole size make installation simple, while dual station capability allows for extended control options. Whether you’re customizing a new vessel or upgrading an existing system, the Lectrotab JLC-11 joystick LED trim tab control offers an intuitive, durable solution for precise trim management and enhanced vessel performance.

Features:

• Single joystick control for easy operation

• LED display indicates each trim tab position

• NMEA 2000 compatible for seamless marine network integration

• Automatic return to last position after ignition cycle

• Waterproof, sealed design resistant to sunlight

• Automatic calibration and retraction when power is off

• Supports dual station setup with additional components

• Operates on 12 or 24 VDC systems

• Automatic dimming of LED indicators in darkness

• Supports single or dual actuators per trim tab
