SKU:110541

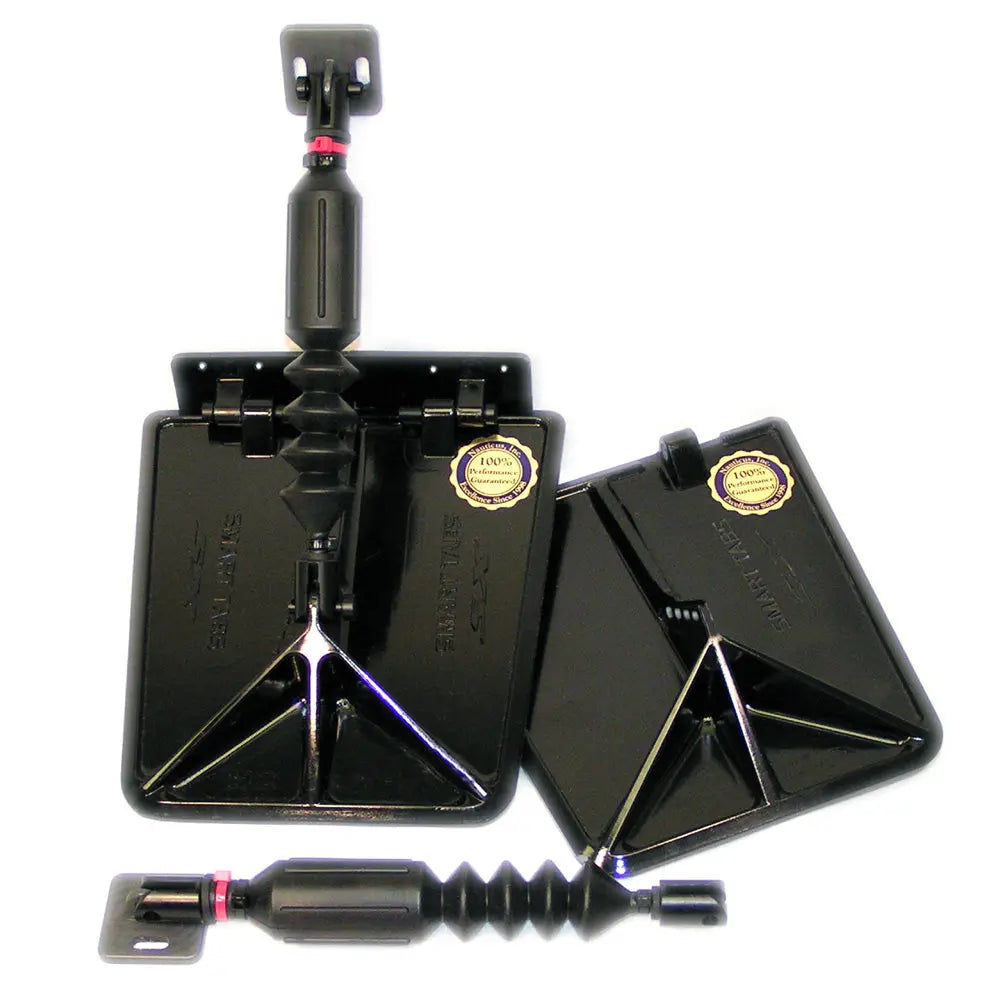

Smart Tab SX Composite Trim Tabs 9.5 x 10 for 12-16 Boat with 40 - 80HP - Black
If these trim tabs dont provide you with an outstanding performance increase, contact us within 30 days of your purchase.
Why buy a manually adjusting trim tab set when you can get the automatic trim tabs that will self-adjust and perform better for less money
The SX series incorporates all of the fully automatic features of our popular SMART TABS, in addition to the rust and corrosion-free benefits of molded composite materials. Assembly can be completed in seconds, and the installation in a few minutes. The only tools required are a drill with a 3/16 bit and a Phillips screwdriver. SMART TABS SX provide unequaled performance and durability with no maintenance in fresh or salt water. The system can be specifically tuned to maximize the performance of any power boat, and TRACKING RIBS have been added to improve handling at higher speeds.
Our breakthrough technology in trim tabs is completely automatic, requiring no operator adjustment while underway. Nauticus trim tabs self-adjust according to how you load and maneuver your boat.
The nitrogen Gas Actuator provides LIFT at the stern of the boat by holding the trim plate down during acceleration. The amount of LIFT is determined by the actuator load rating and the trim plate adjustment, which is done at the time of installation.
NO HYDRAULICS - NO ELECTRIC SWITCHES
Nauticus trim tabs are completely automatic, requiring no operator adjustment while underway.
The nitrogen Gas Actuator provides LIFT at the stern of the boat by holding the trim plate down during acceleration. The amount of LIFT is determined by the actuator load rating and the trim plate adjustment, which is done at the time of installation.
SPEED REGULATION
Nauticus trim tabs start in a downward angel to maximize lift at slow speeds. As the boat accelerates, the water pushes up on the trim plates providing lift to the stern which minimizes bow rise, and allows the boat to plane quickly.
Once the water pressure exceeds the actuator load rating (maximum lift) the trim plates move up to a horizontal position eliminating any drag.
BOAT STABILIZERS
Even when cruising SMART TABS continue to work like shock absorbers. The constant adjustment to sea conditions allow SMART TABS to provide remarkable stability in turns, while crossing waves, while cruising, and while running at maximum speeds. No more sliding, porpoising, or chine walking.
ONE OF A KIND
The unique system is the only one of its kind in the industry. The internal valve system is truly smart in its design of controlling you boats performance.
It will reduce the minimum planning speed by 33%
Provide a level, more comfortable ride at lower speeds
Improve economy, handling and safety
As the boat speed increases, the water pressure also increases. Once the water pressure exceeds the Actuator load rating (maximum LIFT period) the trim plates begin to move upward until they are horizontal with the bottom of the boat.
The internal valve system dampens the trim plate movement which eliminates any instant reaction to minor water pressure variances. Nauticus trim tabs provide smooth and undetectable reaction to boat speed creating a level, more comfortable ride at lower speeds.
INSTALLATION IS SIMPLE
With an electric drill, small drill bit, a phillips screwdriver, and two wrenches, just about anyone can install SMART TABS in less than an hour. Professional installers should be able to install SMART TABS in 30 minutes or less.
*All mounting hardware, instructions, and templates are included.
*SMART TABS require NO THROUGH HULL DRILLING
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.Upgrade your boat's performance with the Lectrotab Smart Tab SX Composite Trim Tabs, designed specifically for 12 to 16-foot boats with 40 to 80 horsepower engines. Crafted from corrosion-resistant molded composite materials, these trim tabs offer a maintenance-free solution that enhances handling, speed, and fuel efficiency. The fully automatic system adjusts itself based on water conditions and boat load, eliminating the need for manual adjustments and ensuring optimal performance during every outing. Installation is straightforward, requiring only basic tools such as a drill and Phillips screwdriver, making it accessible for both DIY enthusiasts and professional installers. The system’s internal valve dampens reactions to minor water pressure changes, providing smooth, undetectable adjustments that promote a comfortable, level ride and increased stability in various sea conditions. The nitrogen gas actuator provides lift during acceleration, helping to reduce minimum planning speed by up to 33% while improving overall handling and safety. The added tracking ribs enhance high-speed maneuverability, and the design's speed regulation feature ensures the trim plates move to optimize lift and minimize drag as boat speed increases. Designed to work seamlessly in both fresh and saltwater environments, these trim tabs are built for durability and long-term use with no maintenance required. Whether crossing waves or cruising at maximum speeds, the Smart Tabs SX system continuously adjusts to keep your boat stable, safe, and efficient, making it an essential upgrade for serious boaters seeking performance and reliability.
Features:
