SKU:110540

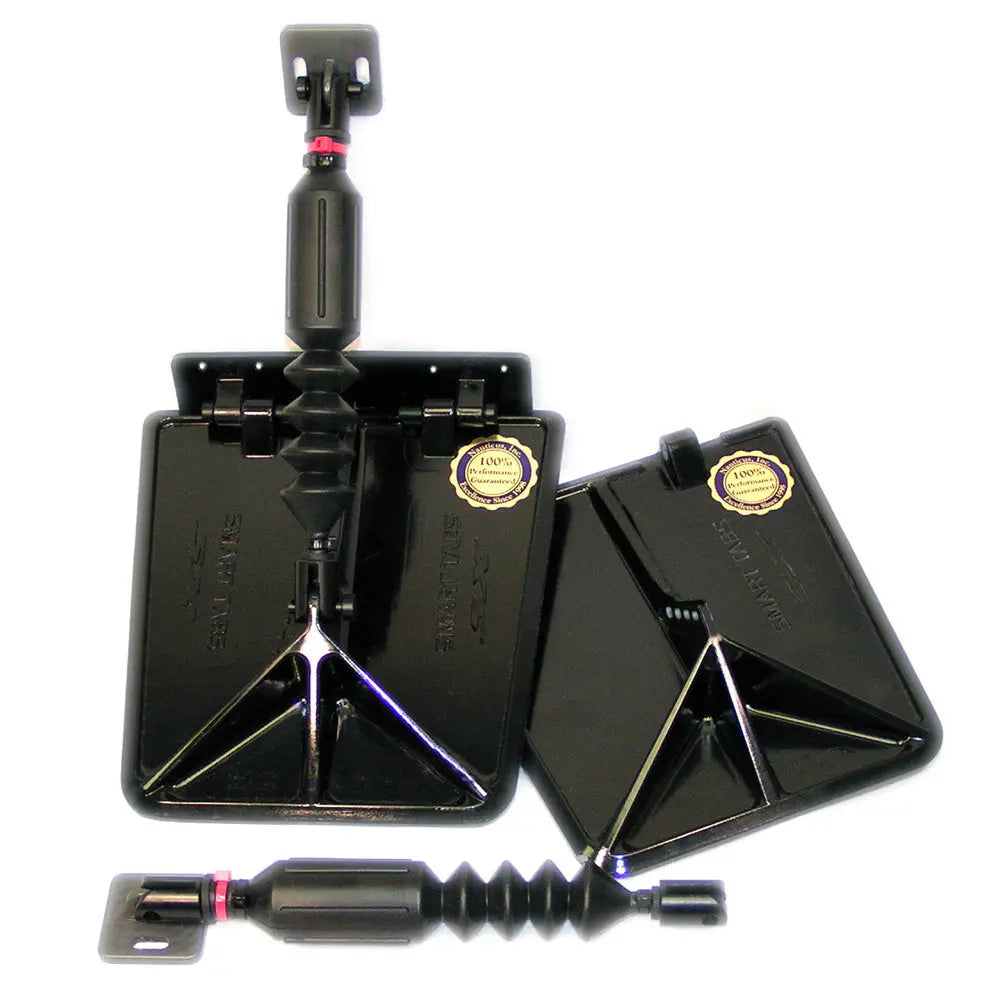

Smart Tab SX Composite Trim Tabs 9.5 x 10 for 15-18 Boat with 60 - 135HP - Black
If these trim tabs dont provide you with an outstanding performance increase, contact us within 30 days of your purchase.
Why buy a manually adjusting trim tab set when you can get the automatic trim tabs that will self-adjust and perform better for less money
The SX series incorporates all of the fully automatic features of our popular SMART TABS, in addition to the rust and corrosion-free benefits of molded composite materials. Assembly can be completed in seconds, and the installation in a few minutes. The only tools required are a drill with a 3/16 bit and a Phillips screwdriver. SMART TABS SX provide unequaled performance and durability with no maintenance in fresh or salt water. The system can be specifically tuned to maximize the performance of any power boat, and TRACKING RIBS have been added to improve handling at higher speeds.
Our breakthrough technology in trim tabs is completely automatic, requiring no operator adjustment while underway. Nauticus trim tabs self-adjust according to how you load and maneuver your boat.
The nitrogen Gas Actuator provides LIFT at the stern of the boat by holding the trim plate down during acceleration. The amount of LIFT is determined by the actuator load rating and the trim plate adjustment, which is done at the time of installation.
NO HYDRAULICS - NO ELECTRIC SWITCHES
Nauticus trim tabs are completely automatic, requiring no operator adjustment while underway.
The nitrogen Gas Actuator provides LIFT at the stern of the boat by holding the trim plate down during acceleration. The amount of LIFT is determined by the actuator load rating and the trim plate adjustment, which is done at the time of installation.
SPEED REGULATION
Nauticus trim tabs start in a downward angel to maximize lift at slow speeds. As the boat accelerates, the water pushes up on the trim plates providing lift to the stern which minimizes bow rise, and allows the boat to plane quickly.
Once the water pressure exceeds the actuator load rating (maximum lift) the trim plates move up to a horizontal position eliminating any drag.
BOAT STABILIZERS
Even when cruising SMART TABS continue to work like shock absorbers. The constant adjustment to sea conditions allow SMART TABS to provide remarkable stability in turns, while crossing waves, while cruising, and while running at maximum speeds. No more sliding, porpoising, or chine walking.
ONE OF A KIND
The unique system is the only one of its kind in the industry. The internal valve system is truly smart in its design of controlling you boats performance.
It will reduce the minimum planning speed by 33%
Provide a level, more comfortable ride at lower speeds
Improve economy, handling and safety
As the boat speed increases, the water pressure also increases. Once the water pressure exceeds the Actuator load rating (maximum LIFT period) the trim plates begin to move upward until they are horizontal with the bottom of the boat.
The internal valve system dampens the trim plate movement which eliminates any instant reaction to minor water pressure variances. Nauticus trim tabs provide smooth and undetectable reaction to boat speed creating a level, more comfortable ride at lower speeds.
INSTALLATION IS SIMPLE
With an electric drill, small drill bit, a phillips screwdriver, and two wrenches, just about anyone can install SMART TABS in less than an hour. Professional installers should be able to install SMART TABS in 30 minutes or less.
*All mounting hardware, instructions, and templates are included.
*SMART TABS require NO THROUGH HULL DRILLING
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.Enhance your boat's performance with the Lectrotab Smart Tab SX Composite Trim Tabs, designed specifically for 15 to 18-foot boats with engines ranging from 60 to 135 horsepower. These fully automatic trim tabs feature advanced self-adjusting technology that improves handling, stability, and comfort without the need for operator intervention. Constructed from corrosion-resistant molded composite materials, the SX series offers durability and maintenance-free operation in both fresh and saltwater environments. Installation is quick and straightforward, requiring only basic tools such as a drill with a 3/16-inch bit and a Phillips screwdriver, making it accessible for most boat owners and professional installers alike. The system's design includes tracking ribs that enhance handling at higher speeds, ensuring optimal control during rapid acceleration and high-speed cruising. The nitrogen gas actuator provides lift during acceleration by holding the trim plates down, which reduces bow rise and shortens planning time, resulting in faster acceleration and increased top speed. As the boat reaches higher speeds, the trim plates move to a horizontal position to minimize drag, maintaining efficiency and stability. The integral valve system dampens minor water pressure fluctuations, delivering smooth, undetectable adjustments that contribute to a comfortable ride in various sea conditions. These trim tabs are particularly effective at reducing minimum planning speeds by up to 33%, making them ideal for improving fuel economy, handling, and safety. Designed without hydraulics or electric switches, the Nauticus Smart Tabs SX operate automatically, simplifying operation and reducing maintenance. They also function as boat stabilizers, continuously adjusting to sea conditions to prevent sliding, porpoising, or chine walking during turns and crossing waves. The internal valve system's intelligent control ensures consistent performance and a level ride at all speeds. For installation, the package includes all necessary hardware, instructions, and templates, allowing a typical setup in less than an hour. Whether you're upgrading or installing new trim tabs, these systems deliver superior performance, durability, and ease of use, making them an excellent choice for boat enthusiasts seeking reliable, automatic trim control.
Features:
