SKU:110542

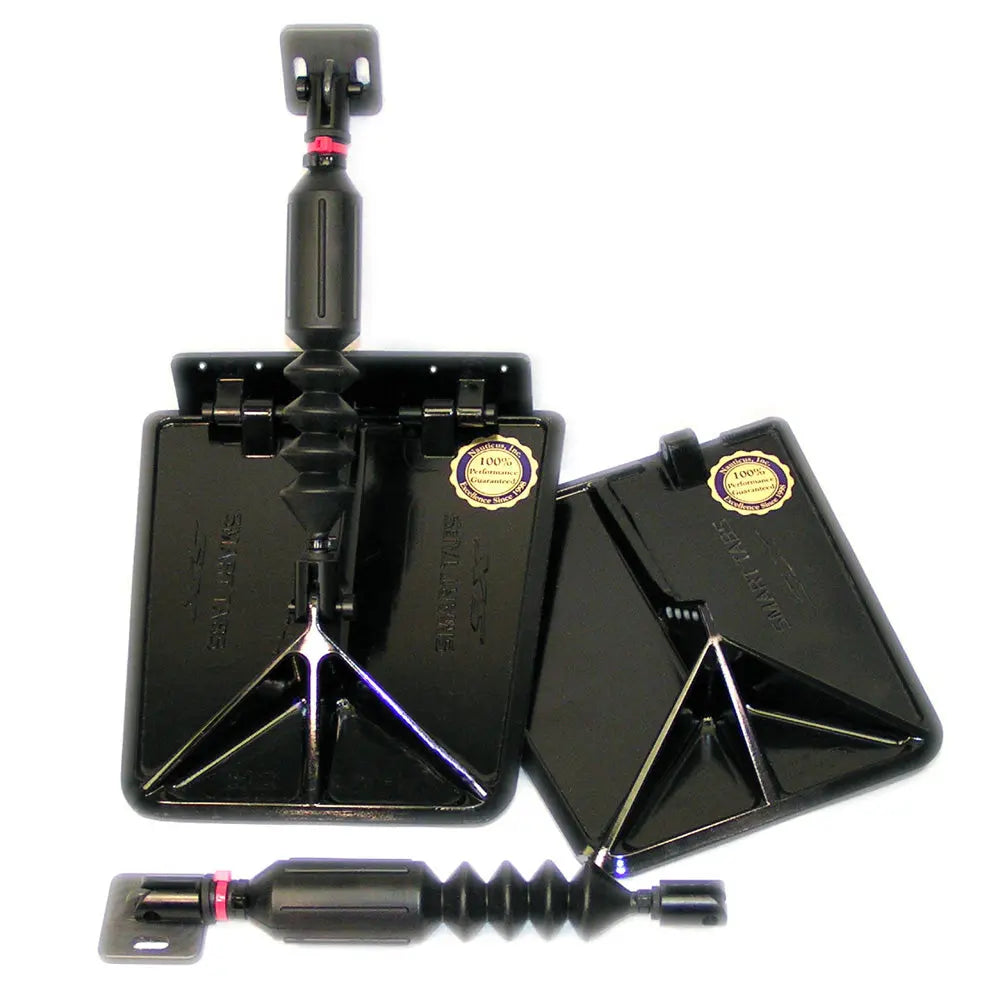

Smart Tab SX Trim Tabs for 13-15 Boat with 30 - 40HP - Black
If these trim tabs dont provide you with an outstanding performance increase, contact us within 30 days of your purchase.
Why buy a manually adjusting trim tab set when you can get the automatic trim tabs that will self-adjust and perform better for less money
The SX series incorporates all of the fully automatic features of our popular SMART TABS, in addition to the rust and corrosion-free benefits of molded composite materials. Assembly can be completed in seconds, and the installation in a few minutes. The only tools required are a drill with a 3/16 bit and a Phillips screwdriver. SMART TABS SX provide unequaled performance and durability with no maintenance in fresh or salt water. The system can be specifically tuned to maximize the performance of any power boat, and TRACKING RIBS have been added to improve handling at higher speeds.
Our breakthrough technology in trim tabs is completely automatic, requiring no operator adjustment while underway. Nauticus trim tabs self-adjust according to how you load and maneuver your boat.
The nitrogen Gas Actuator provides LIFT at the stern of the boat by holding the trim plate down during acceleration. The amount of LIFT is determined by the actuator load rating and the trim plate adjustment, which is done at the time of installation.
NO HYDRAULICS - NO ELECTRIC SWITCHES
Nauticus trim tabs are completely automatic, requiring no operator adjustment while underway.
The nitrogen Gas Actuator provides LIFT at the stern of the boat by holding the trim plate down during acceleration. The amount of LIFT is determined by the actuator load rating and the trim plate adjustment, which is done at the time of installation.
SPEED REGULATION
Nauticus trim tabs start in a downward angel to maximize lift at slow speeds. As the boat accelerates, the water pushes up on the trim plates providing lift to the stern which minimizes bow rise, and allows the boat to plane quickly.
Once the water pressure exceeds the actuator load rating (maximum lift) the trim plates move up to a horizontal position eliminating any drag.
BOAT STABILIZERS
Even when cruising SMART TABS continue to work like shock absorbers. The constant adjustment to sea conditions allow SMART TABS to provide remarkable stability in turns, while crossing waves, while cruising, and while running at maximum speeds. No more sliding, porpoising, or chine walking.
ONE OF A KIND
The unique system is the only one of its kind in the industry. The internal valve system is truly smart in its design of controlling you boats performance.
It will reduce the minimum planning speed by 33%
Provide a level, more comfortable ride at lower speeds
Improve economy, handling and safety
As the boat speed increases, the water pressure also increases. Once the water pressure exceeds the Actuator load rating (maximum LIFT period) the trim plates begin to move upward until they are horizontal with the bottom of the boat.
The internal valve system dampens the trim plate movement which eliminates any instant reaction to minor water pressure variances. Nauticus trim tabs provide smooth and undetectable reaction to boat speed creating a level, more comfortable ride at lower speeds.
INSTALLATION IS SIMPLE
With an electric drill, small drill bit, a phillips screwdriver, and two wrenches, just about anyone can install SMART TABS in less than an hour. Professional installers should be able to install SMART TABS in 30 minutes or less.
*All mounting hardware, instructions, and templates are included.
*SMART TABS require NO THROUGH HULL DRILLING
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.The Lectrotab Smart Tab SX trim tabs are designed to enhance the performance and stability of small boats ranging from 13 to 15 feet with 30 to 40 horsepower engines. Constructed from corrosion-resistant molded composite materials, these fully automatic trim tabs require no operator adjustment while underway, providing a hassle-free solution for boaters seeking improved handling and efficiency. The nitrogen gas actuator system automatically adjusts lift during acceleration and deceleration, ensuring optimal boat positioning and reduced bow rise across various sea conditions. Installation is straightforward, requiring only a drill with a 3/16-inch bit, a Phillips screwdriver, and minimal time—making it suitable for both DIY enthusiasts and professional installers. All necessary hardware, instructions, and templates are included, and the system does not require through-hull drilling, preserving your boat’s integrity. The SX series incorporates tracking ribs to enhance handling at higher speeds, ensuring a more responsive and controlled ride. The design effectively reduces minimum planning speed by up to 33%, accelerates faster, and increases top speed, all while maintaining a level and comfortable ride even at lower speeds. These trim tabs also contribute to better fuel economy, handling, and safety by stabilizing the boat during turns and crossing waves. The internal valve system intelligently dampens minor water pressure variances, providing smooth, undetectable adjustments that prevent porpoising, chine walking, or sliding. Suitable for use in fresh and saltwater environments, the Lectrotab Smart Tab SX trim tabs are a durable and maintenance-free upgrade that maximizes your boat’s performance with minimal effort. Whether cruising or racing, these trim tabs deliver precise control, stability, and efficiency in a compact, easy-to-install package, making them a valuable addition to any small boat with outboard power.
Features:
