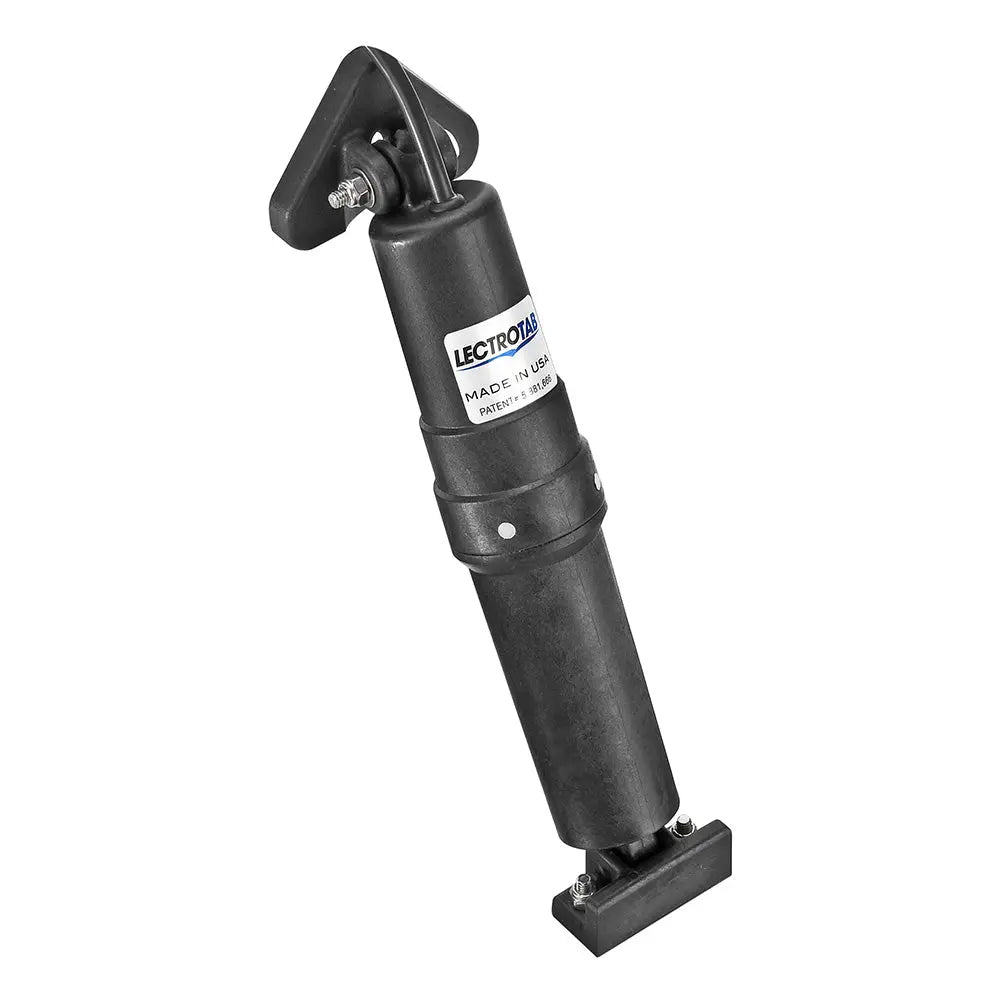

Lectrotab Standard 12V Trim Tab Actuator with 28-Inch Cable (Part A-BK-24)

Standard Trim Tab Actuator - 12V - 28 Cable

Lectrotab trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance-free design. The unit is corrosion-free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic, permanently sealed housing. No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low-profile transom mounting bracket. Actuators come in 12 and 24 VDC with an 8-second recommended stroke time or a 4-second stroke time.

Features:

• Actuator DC Voltage - 12V
• 28 Cable
• The upper ram seal location cannot be damaged due to a fouled ram or barnacle growth
• Utilizes an internal pressure equalization system
• Upgrades to the most popular hydraulic and electromechanical systems
• Internal brake system prevents unwanted tab movement when underway or backing down
• Quiet operation
• All actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure that cannot corrode and will not deteriorate in the sun or underwater

Specifications:

• Model: A-BK-24
• DC Voltage: 12VDC
• Stroke Length: 2.25/57mm
• Stroke Speed: 8 sec
• Distance from Bolt to Pin: 11.5/292mm
• Vertical Height (Typical Installation Fully Retracted):11.875/302mm
• Cable Length (Feet/Meter): 28/8.5m
• Upper Mounting Bracket: Standard
• Lower Mounting Bracket: Standard
• Use Actuator with Tabs: All Tabs

*Sold as an Individual

The Lectrotab Standard 12V Trim Tab Actuator with 28-inch cable is engineered for smooth, maintenance-free operation on boats. Its non-hydraulic design eliminates oil leaks while providing precise control and maximum lift force. The fully sealed, corrosion-resistant housing ensures durability in harsh marine environments, making it ideal for both new installations and upgrades to existing trim tab systems. The actuator's internal pressure equalization system and internal brake prevent unwanted movement, offering reliable performance during underway or backing down. Easy installation is facilitated by standard transom mounting brackets, and the unit is compatible with all types of tabs. This actuator is built to withstand demanding conditions, with all units load-tested to push up to 1,000 pounds of force, ensuring robust and consistent operation over time. Its quiet operation makes it suitable for maintaining a peaceful onboard experience, and the compact design allows for straightforward integration into a variety of transom configurations.

Features:

• Actuator DC Voltage - 12V for reliable marine performance

• 28-inch cable length for flexible installation options

• Sealed upper ram prevents damage from fouling or barnacles

• Internal pressure equalization system enhances durability

• Ideal upgrade to hydraulic and electromechanical trim tab systems

• Internal brake system prevents unwanted tab movement

• Quiet operation for a smooth boating experience

• Load tested to exert up to 1,000 lbs of force

• Non-metallic external housing resists corrosion and deterioration in sun and water
