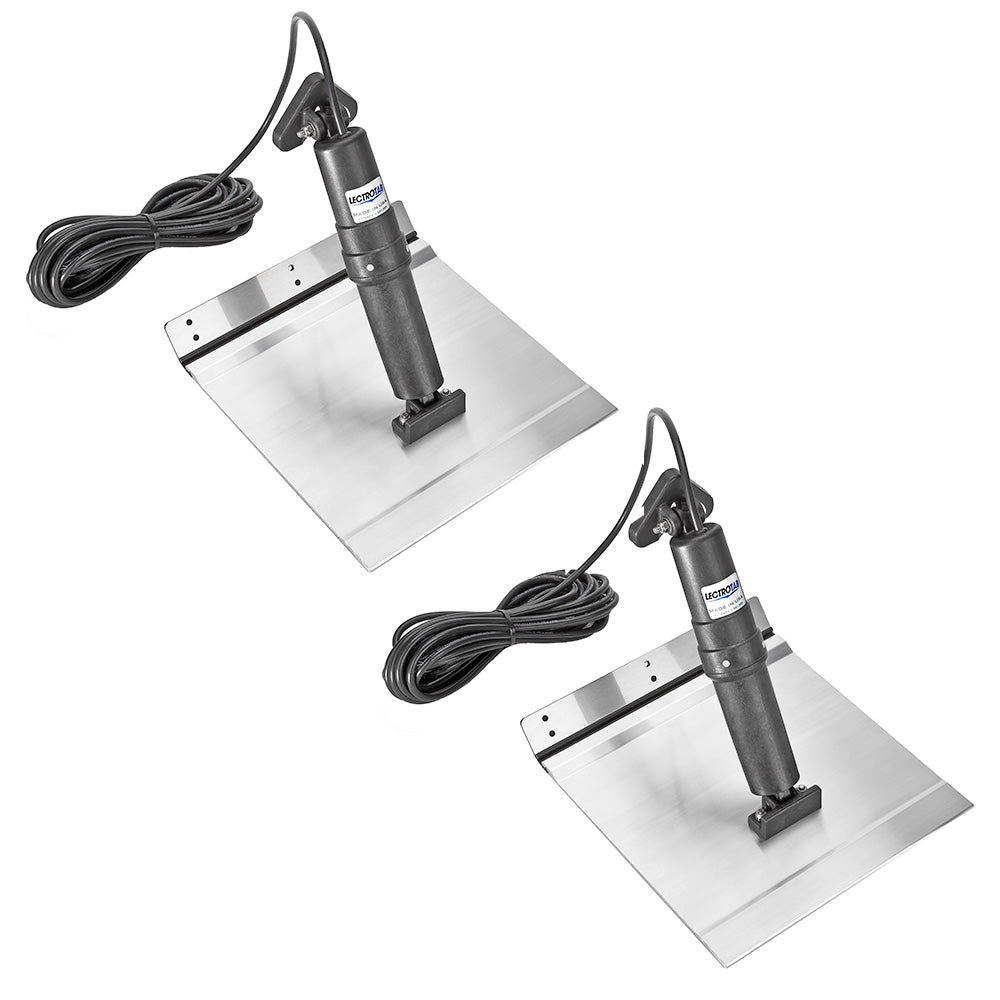

Lectrotab XKA Aluminum Alloy 9 x 9 Trim Tab Kit for Boats 14-19 ft

XKA Aluminum Alloy Trim Tab - 9 x 9

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

*Control switch not included

Features:

• All Tabs sealed with a corrosive resistant epoxy coating
• Equivalent strength to 10 gauge stainless steel
• "No Break" polypropylene hinge tested over 300,000 cycles to a 90 bend without failure
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 9" (23 x 23 cm)
• Boat Length - 14' to 19' (4 to 6 M)
• Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)

In the Box:

• Two (2) Aluminum Alloy tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as an Individual

The Lectrotab XKA Aluminum Alloy 9 x 9 trim tab kit is designed specifically for aluminum-hulled boats ranging from 14 to 19 feet in length, offering a reliable and maintenance-free solution for precise boat control. Crafted from marine-grade 6005-T5 aluminum alloy, these trim tabs deliver exceptional strength and durability while resisting corrosion under harsh marine conditions. The entire assembly is sealed with a corrosion-resistant epoxy coating, ensuring long-lasting performance and protection against the elements. This kit includes two aluminum alloy tabs and two actuators with 23-foot cables, providing comprehensive coverage for effective trim adjustment. The non-metallic external structure prevents deterioration from sun exposure and water contact, making it ideal for demanding marine environments. The robust actuators are fully load-tested to push up to 1,000 pounds of force, ensuring reliable operation even during high-stress maneuvers. They incorporate internal pressure equalization systems and an internal brake to prevent unwanted movement during operation or backing down, enhancing safety and control. The quiet, non-hydraulic design eliminates oil leaks common to hydraulic trim tabs, offering a clean, maintenance-free alternative. The actuator's sealed housing allows for easy installation without any components needing to be placed inside the boat, simplifying the setup process. The kit is compatible with standard or low-profile transom mounting brackets, providing flexibility for different boat configurations. Please note that control switches are sold separately. Designed for ease of use and durability, this trim tab kit is an excellent choice for boat owners seeking reliable performance and corrosion resistance. For detailed installation instructions and additional information, refer to the provided owner’s manual link. This product is sold as an individual kit and is intended to enhance boat handling and stability while maintaining a clean, corrosion-free profile.

Features:

• All tabs sealed with a corrosion-resistant epoxy coating

• Equivalent strength to 10 gauge stainless steel

• "No Break" polypropylene hinge tested over 300,000 cycles to a 90-degree bend without failure

• Upper ram seal location protected from fouling or barnacle growth

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement during operation

• Quiet operation for seamless control

• Actuators are fully load tested to push 1,000 lbs of force

• Non-metallic external structure resists corrosion and deterioration from sun and water
