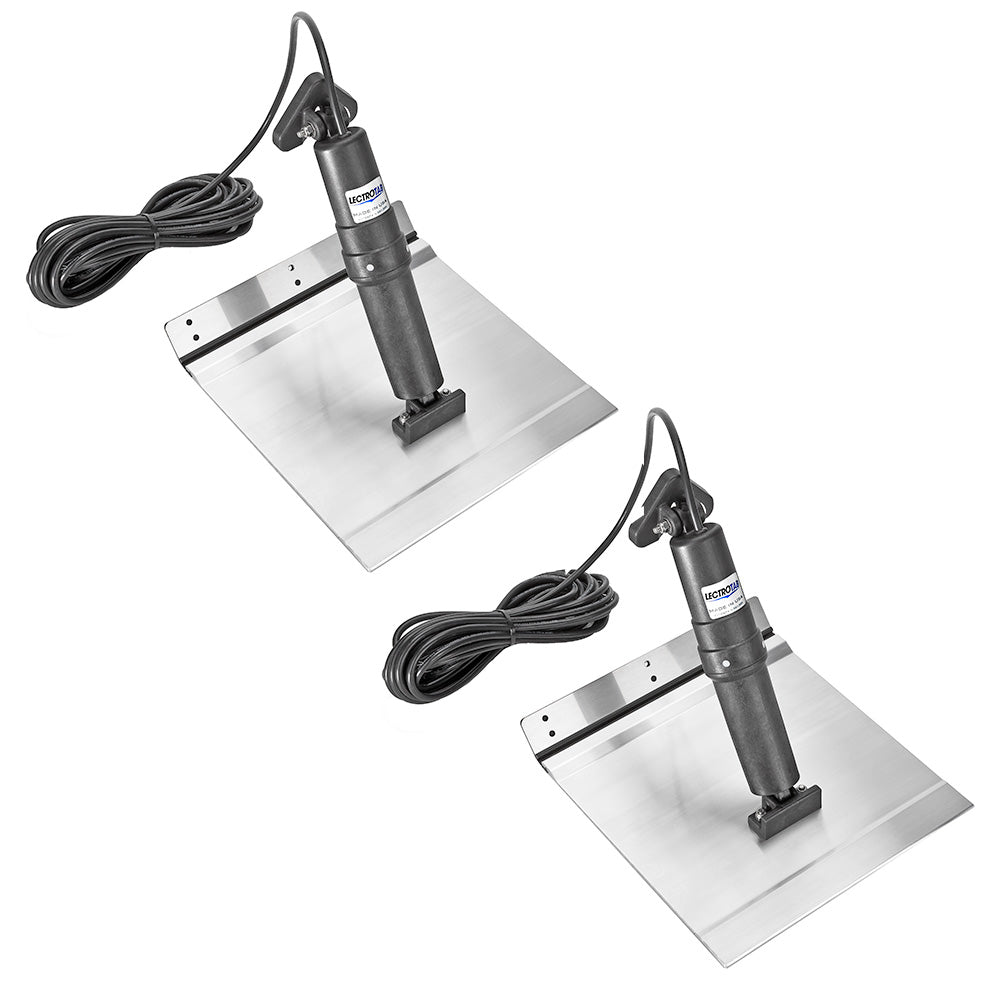

Lectrotab XKA Aluminum Alloy Trim Tab – 12 x 12 inches for Boats 18 to 32 Feet

XKA Aluminum Alloy Trim Tab - 12 x 12

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

*Control switch not included

Features:

• All Tabs sealed with a corrosive resistant epoxy coating
• Equivalent strength to 10 gauge stainless steel
• "No Break" polypropylene hinge tested over 300,000 cycles to a 90 bend without failure
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 12" (30 x 30 cm)
• Boat Length - 18' to 32' (5.5 to 9.5 M)
• Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)

In the Box:

• Two (2) Aluminum Alloy tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as an Individual

The Lectrotab XKA Aluminum Alloy Trim Tab offers a durable and cost-effective solution for boats with aluminum hulls, measuring 12 inches by 12 inches. Crafted from marine-grade 6005-T5 aluminum alloy, these trim tabs are designed to withstand harsh marine environments while providing reliable performance. The tabs feature a corrosion-resistant epoxy coating that ensures long-lasting durability and resistance to the elements. Equipped with a high-strength "no-break" polypropylene hinge tested over 300,000 cycles, the XKA trim tabs deliver exceptional longevity and dependability. The upper ram seal is designed to prevent damage from fouled rams or barnacle growth, maintaining smooth operation over time. The internal pressure equalization system and silent operation make these trim tabs suitable for precise boat control without noise or maintenance concerns. The self-contained actuator, housed in a sealed, non-metallic shell, eliminates the need for hydraulic oil, reducing leak risks and simplifying installation. With a load capacity tested to push up to 1,000 lbs of force, these actuators ensure maximum lift and control. The kit includes two aluminum alloy tabs, two actuators with 23-foot cables, and an instruction manual. Designed for boats ranging from 18 to 32 feet, the XKA trim tabs are ideal for enhancing boat stability, speed, and fuel efficiency. The external structure's non-metallic construction prevents corrosion and deterioration from sun and water exposure. Please note that control switches are sold separately, and this product is sold as an individual unit. For detailed installation instructions, refer to the provided manual. Overall, the Lectrotab XKA Aluminum Alloy Trim Tab offers a high-performance, maintenance-free solution for boat owners seeking reliable trim control with minimal upkeep.

Features:

• All Tabs sealed with a corrosion-resistant epoxy coating

• Equivalent strength to 10 gauge stainless steel

• "No Break" polypropylene hinge tested over 300,000 cycles to a 90-degree bend

• Upper ram seal location designed to prevent damage from fouling or barnacles

• Utilizes an internal pressure equalization system for reliable operation

• Internal brake system prevents unwanted tab movement during operation

• Quiet operation for minimal disturbance

• Actuators are fully load tested to push up to 1,000 lbs of force

• Non-metallic external structure resists corrosion and sun deterioration
