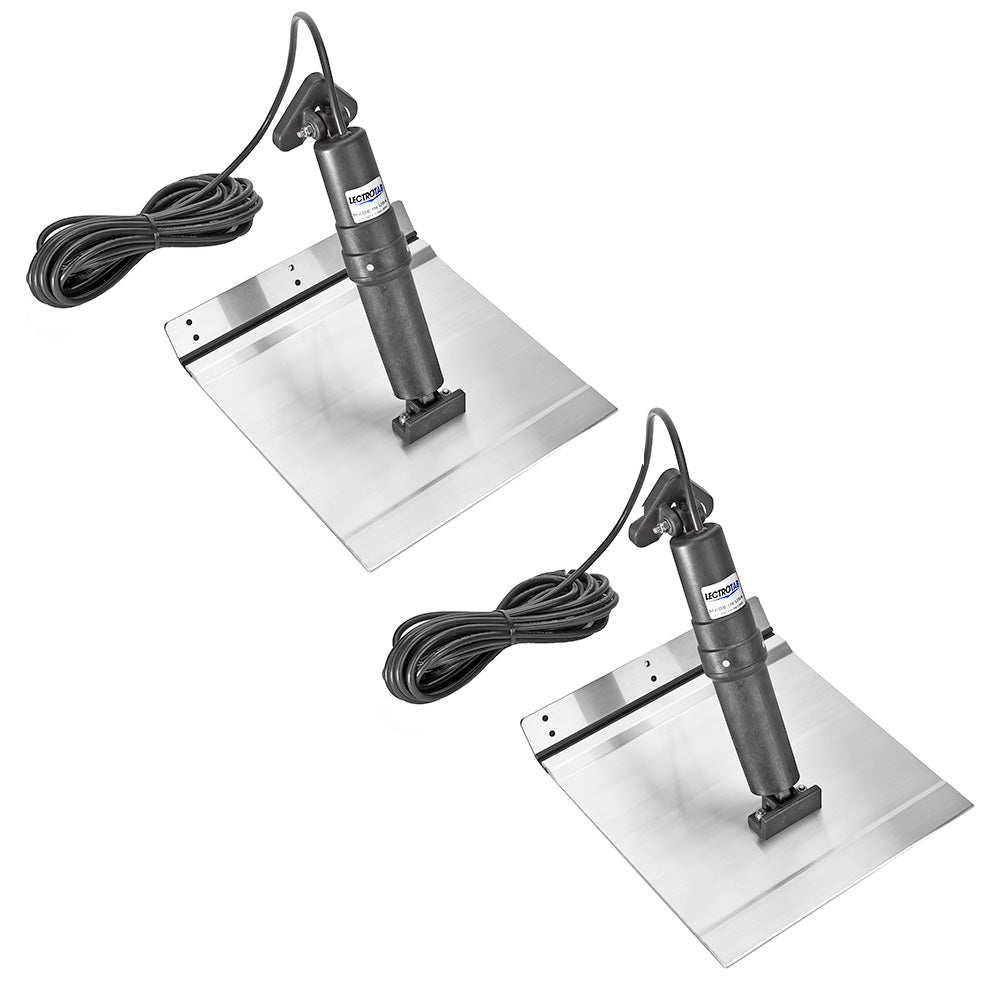

Lectrotab XKA Aluminum Alloy Trim Tab - 9 x 12 inches for Boats 16 to 25 Feet

XKA Aluminum Alloy Trim Tab - 9 x 12

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

*Control switch not included

Features:

• All Tabs sealed with a corrosive resistant epoxy coating
• Equivalent strength to 10 gauge stainless steel
• "No Break" polypropylene hinge tested over 300,000 cycles to a 90 bend without failure
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 12" (23 x 30 cm)
• Boat Length - 16' to 25' (5 to 7.5 M)
• Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)

In the Box:

• Two (2) Aluminum Alloy tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as an Individual

The Lectrotab XKA Aluminum Alloy Trim Tab offers a durable and cost-effective solution for boats with aluminum hulls, measuring 9 inches by 12 inches. Crafted from marine-grade 6005-T5 aluminum alloy, these trim tabs are designed to withstand harsh marine environments while providing reliable performance. The high-strength "no break" polypropylene hinge has been tested over 300,000 cycles to ensure durability and longevity, making it suitable for frequent use. All tabs are sealed with a corrosion-resistant epoxy coating, ensuring protection against saltwater and other corrosive elements. This construction guarantees long-term functionality and minimal maintenance, making it an ideal choice for boat owners seeking dependable trim control.

Equipped with a precision-engineered actuator, the Lectrotab XKA trim tab kit delivers quiet operation and a maintenance-free, non-hydraulic design. The actuator features an internal pressure equalization system and is housed in a non-metallic, sealed housing, preventing corrosion and eliminating the risk of oil leaks common in hydraulic systems. With a load capacity tested to push up to 1,000 pounds of force, the actuator ensures precise and responsive tab positioning, enhancing boat handling and stability. The external structure’s non-metallic design also prevents deterioration from sun exposure and water, maintaining its integrity over time.

Designed for boats ranging from 16 to 25 feet, these trim tabs are compatible with a 12-volt DC power supply and feature a stroke length of 2.25 inches. The kit includes two aluminum alloy tabs, two actuators with 23-foot cables, and an instruction manual for straightforward installation. The internal brake system prevents unwanted movement during operation or backing down, providing added control. The versatile mounting options include a standard or low-profile transom bracket, allowing for flexible installation. Please note that control switch is not included. For detailed installation instructions, consult the provided owner’s manual available online. This product is sold individually and is designed to enhance boat performance without hydraulic fluid leaks or maintenance worries.

Features:

• All tabs sealed with a corrosion-resistant epoxy coating

• Equivalent strength to 10 gauge stainless steel

• "No break" polypropylene hinge tested over 300,000 cycles to a 90-degree bend

• Upper ram seal location protected from damage due to fouling or barnacles

• Internal pressure equalization system for reliable operation

• Internal brake system prevents unwanted tab movement

• Quiet operation for minimal noise disturbance

• Actuators fully load tested to push 1,000 lbs of force

• Non-metallic external structure resistant to corrosion and sun damage

• Suitable for boats 16 to 25 feet in length

• Easy installation with included components and instructions
